SDO HMI 2014-07-01 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.45 | 0.00 | 9.62 | 5.73 | 267.97 | -40.63 | 84.57 | 0.6389 | -238.5 | -159.2 | |
|
previous
or next observation for the same group /

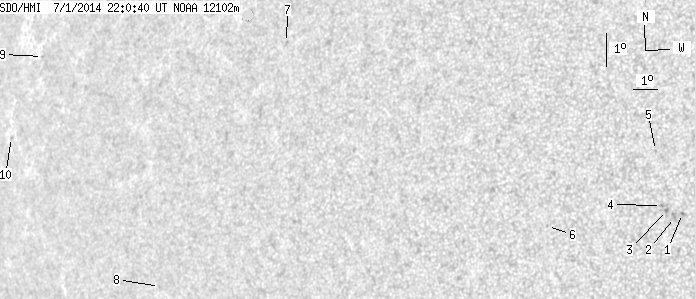

back to the solar disc SDO HMI 2014-07-01 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.57 | 4.74 | 279.05 | -29.54 | 85.58 | 0.4948 | -906.0 | -780.2 | |
| 0.00 | 3.18 | 0.00 | 1.81 | 4.61 | 278.78 | -29.82 | 85.86 | 0.4989 | -785.0 | -696.7 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 4.81 | 278.48 | -30.11 | 85.47 | 0.5035 | -797.0 | -637.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 4.96 | 278.30 | -30.30 | 85.19 | 0.5064 | -646.0 | -542.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 6.63 | 277.99 | -30.61 | 81.95 | 0.5128 | -676.0 | -466.8 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 4.21 | 274.20 | -34.39 | 86.83 | 0.5663 | -531.0 | -515.7 | |
| 0.00 | 1.73 | 0.00 | 1.22 | 9.50 | 263.18 | -45.42 | 79.57 | 0.7166 | 468.0 | 441.5 | |
| 0.00 | 1.18 | 0.00 | 0.92 | 1.85 | 258.16 | -50.43 | 90.04 | 0.7727 | 417.0 | 334.7 | |
| 0.00 | 1.09 | 0.00 | 1.00 | 8.61 | 251.19 | -57.41 | 81.66 | 0.8440 | 589.0 | 491.8 | |
| 0.00 | 1.27 | 0.00 | 1.21 | 6.06 | 249.90 | -58.70 | 84.69 | 0.8554 | 482.0 | 369.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
