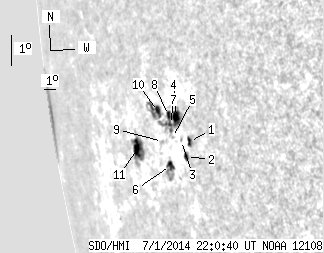

SDO HMI 2014-07-01 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.23 | 93.44 | 50.34 | 138.76 | -8.02 | 238.91 | -69.69 | 99.60 | 0.9429 | 135.9 | -75.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.18 | 4.09 | 2.88 | 5.39 | -8.09 | 241.36 | -67.24 | 99.96 | 0.9285 | 557.5 | 416.4 | |
| 2.09 | 3.45 | 2.82 | 4.65 | -8.58 | 240.94 | -67.65 | 100.43 | 0.9315 | 380.1 | 312.9 | |
| 0.00 | 1.00 | 0.00 | 1.36 | -8.10 | 240.71 | -67.89 | 99.88 | 0.9326 | 326.0 | 340.0 | |
| 8.81 | 28.33 | 12.02 | 39.42 | -7.39 | 240.54 | -68.06 | 99.11 | 0.9332 | 585.5 | -13.8 | |
| 0.00 | 1.09 | 0.00 | 1.53 | -8.04 | 239.97 | -68.63 | 99.73 | 0.9370 | -340.0 | -220.2 | |
| 3.90 | 13.26 | 5.63 | 19.23 | -8.93 | 239.45 | -69.15 | 100.62 | 0.9408 | 255.3 | -36.2 | |
| 1.27 | -4.00 | 1.79 | -4.00 | -7.64 | 239.95 | -68.65 | 99.30 | 0.9369 | 135.4 | 999999 | |
| 2.63 | -4.00 | 3.69 | -4.00 | -7.36 | 239.87 | -68.73 | 99.00 | 0.9372 | 248.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 2.40 | -8.21 | 239.03 | -69.56 | 99.81 | 0.9427 | -377.0 | -330.1 | |
| 4.00 | 16.53 | 5.84 | 24.60 | -7.28 | 239.02 | -69.57 | 98.82 | 0.9422 | 299.8 | -128.9 | |
| 9.35 | 24.06 | 15.67 | 40.18 | -8.55 | 236.50 | -72.09 | 99.89 | 0.9565 | -410.0 | -178.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
