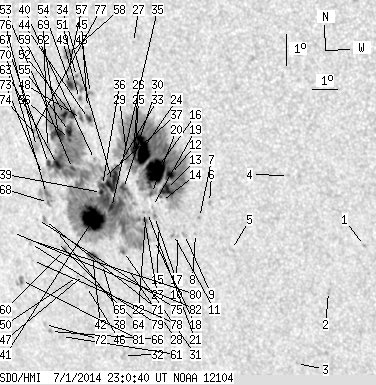

SDO HMI 2014-07-01 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 218.38 | 1178.83 | 146.04 | 789.95 | -10.78 | 267.81 | -40.23 | 109.57 | 0.6756 | 372.6 | 199.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.71 | -12.66 | 277.33 | -30.71 | 117.75 | 0.5652 | 761.0 | 630.4 | |
| 0.00 | 2.00 | 0.00 | 1.23 | -14.17 | 275.78 | -32.26 | 118.98 | 0.5938 | 680.0 | 507.9 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -16.52 | 274.15 | -33.90 | 121.29 | 0.6279 | 622.0 | 532.7 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -10.53 | 274.82 | -33.23 | 112.65 | 0.5859 | 730.0 | 483.3 | |
| 0.00 | 2.36 | 0.00 | 1.50 | -12.93 | 272.31 | -35.73 | 114.90 | 0.6298 | 588.0 | 481.7 | |
| 0.00 | 1.73 | 0.00 | 1.10 | -11.47 | 271.70 | -36.35 | 112.38 | 0.6304 | 871.0 | 692.5 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -11.96 | 271.23 | -36.81 | 112.86 | 0.6384 | 822.0 | 738.9 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -12.47 | 270.99 | -37.05 | 113.49 | 0.6438 | 649.0 | 608.7 | |
| 0.00 | 2.54 | 0.00 | 1.65 | -12.51 | 270.55 | -37.49 | 113.32 | 0.6494 | 620.0 | 538.0 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -12.55 | 270.27 | -37.78 | 113.24 | 0.6530 | 770.0 | 529.6 | |
| 0.00 | 2.63 | 0.00 | 1.72 | -12.53 | 270.11 | -37.93 | 113.12 | 0.6548 | 793.0 | 664.6 | |
| 4.72 | 404.53 | 3.05 | 263.32 | -10.63 | 270.30 | -37.74 | 110.44 | 0.6443 | 1384.1 | 484.5 | |
| 10.08 | -12.00 | 6.55 | -12.00 | -11.11 | 270.07 | -37.97 | 111.04 | 0.6492 | 982.6 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -11.50 | 269.81 | -38.23 | 111.48 | 0.6540 | 466.0 | 410.4 | |
| 0.00 | 2.00 | 0.00 | 1.32 | -12.32 | 269.55 | -38.49 | 112.55 | 0.6607 | 521.0 | 426.8 | |
| 35.78 | -12.00 | 23.30 | -12.00 | -10.53 | 269.72 | -38.32 | 110.02 | 0.6511 | 1209.8 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.20 | -11.98 | 269.45 | -38.59 | 112.01 | 0.6604 | 748.0 | 672.0 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -12.74 | 269.31 | -38.73 | 113.03 | 0.6654 | 497.0 | 468.0 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -11.67 | 269.42 | -38.62 | 111.54 | 0.6594 | 472.0 | 458.5 | |
| 1.45 | -12.00 | 0.95 | -12.00 | -11.26 | 269.45 | -38.59 | 110.96 | 0.6574 | 417.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -11.86 | 269.19 | -38.85 | 111.71 | 0.6631 | 793.0 | 569.6 | |
| 1.27 | 627.55 | 0.84 | 426.44 | -12.12 | 269.06 | -38.98 | 112.02 | 0.6657 | 800.6 | 44.9 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -11.87 | 269.03 | -39.02 | 111.65 | 0.6651 | 721.0 | 634.4 | |
| 28.69 | -12.00 | 18.74 | -12.00 | -9.88 | 269.30 | -38.74 | 108.89 | 0.6539 | 1241.6 | 999999 | |
| 5.36 | -12.00 | 3.51 | -12.00 | -9.77 | 269.04 | -39.01 | 108.61 | 0.6567 | 845.0 | 999999 | |
| 3.18 | -12.00 | 2.09 | -12.00 | -10.02 | 268.92 | -39.12 | 108.93 | 0.6591 | 679.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -6.56 | 269.34 | -38.71 | 103.92 | 0.6423 | 632.0 | 446.0 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -13.70 | 268.07 | -39.97 | 113.77 | 0.6843 | -654.0 | -517.0 | |
| 2.00 | -12.00 | 1.32 | -12.00 | -10.00 | 268.64 | -39.40 | 108.78 | 0.6625 | 650.4 | 999999 | |
| 4.36 | -22.00 | 2.90 | -22.00 | -11.14 | 268.35 | -39.70 | 110.29 | 0.6705 | 811.5 | 999999 | |
| 1.00 | -22.00 | 0.68 | -22.00 | -13.13 | 267.98 | -40.06 | 112.94 | 0.6829 | -605.3 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.34 | -16.48 | 267.22 | -40.83 | 117.09 | 0.7065 | 635.0 | 482.9 | |
| 2.27 | -22.00 | 1.51 | -22.00 | -10.48 | 268.21 | -39.84 | 109.30 | 0.6697 | 681.7 | 999999 | |
| 14.71 | -22.00 | 9.84 | -22.00 | -10.93 | 267.93 | -40.11 | 109.82 | 0.6747 | 314.4 | 999999 | |
| 3.27 | -22.00 | 2.20 | -22.00 | -11.75 | 267.75 | -40.29 | 110.90 | 0.6800 | -854.8 | 999999 | |
| 2.81 | -22.00 | 1.90 | -22.00 | -11.07 | 267.50 | -40.54 | 109.84 | 0.6804 | 54.7 | 999999 | |
| 0.82 | -22.00 | 0.55 | -22.00 | -10.85 | 267.54 | -40.51 | 109.54 | 0.6792 | -489.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -13.58 | 267.02 | -41.02 | 113.10 | 0.6959 | -797.0 | -639.9 | |
| 2.09 | -22.00 | 1.41 | -22.00 | -11.29 | 267.42 | -40.62 | 110.12 | 0.6822 | 380.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.16 | -10.26 | 267.31 | -40.74 | 108.61 | 0.6799 | 426.0 | 364.8 | |
| 40.04 | -22.00 | 27.38 | -22.00 | -12.13 | 266.94 | -41.10 | 111.07 | 0.6911 | -1119.8 | 999999 | |
| 4.45 | 8.17 | 3.07 | 5.64 | -13.30 | 266.66 | -41.38 | 112.57 | 0.6990 | -868.0 | -685.6 | |
| 0.00 | 2.72 | 0.00 | 1.82 | -8.20 | 267.44 | -40.61 | 105.70 | 0.6715 | 806.0 | 758.8 | |
| 3.09 | 7.17 | 2.07 | 4.81 | -8.98 | 267.25 | -40.79 | 106.77 | 0.6763 | 978.9 | 679.2 | |
| 0.00 | 2.09 | 0.00 | 1.40 | -8.64 | 267.26 | -40.79 | 106.28 | 0.6751 | 835.0 | 617.7 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -14.31 | 266.19 | -41.86 | 113.71 | 0.7085 | -676.0 | -553.1 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -13.92 | 266.19 | -41.85 | 113.19 | 0.7069 | -706.0 | -594.9 | |
| 1.27 | -22.00 | 0.86 | -22.00 | -8.99 | 266.96 | -41.08 | 106.68 | 0.6798 | 832.1 | 999999 | |
| 0.45 | 1.91 | 0.30 | 1.28 | -8.37 | 266.96 | -41.08 | 105.79 | 0.6779 | 624.4 | 512.2 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -14.00 | 265.88 | -42.17 | 113.15 | 0.7107 | -626.0 | -547.6 | |
| 0.45 | 1.45 | 0.30 | 0.97 | -7.69 | 266.93 | -41.12 | 104.79 | 0.6763 | 795.2 | 700.2 | |
| 4.36 | -22.00 | 2.95 | -22.00 | -8.88 | 266.61 | -41.44 | 106.39 | 0.6838 | 785.0 | 999999 | |
| 1.91 | -22.00 | 1.31 | -22.00 | -10.58 | 266.34 | -41.70 | 108.68 | 0.6926 | 436.5 | 999999 | |
| 4.63 | 17.43 | 3.12 | 11.73 | -7.95 | 266.65 | -41.39 | 105.07 | 0.6805 | 678.4 | 679.7 | |
| 6.36 | -22.00 | 4.33 | -22.00 | -9.42 | 266.40 | -41.64 | 107.08 | 0.6880 | 1008.4 | 999999 | |
| 1.73 | -22.00 | 1.18 | -22.00 | -9.67 | 266.37 | -41.68 | 107.42 | 0.6893 | 1035.6 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.53 | -7.49 | 266.62 | -41.42 | 104.39 | 0.6795 | 629.0 | 512.2 | |
| 0.00 | 8.90 | 0.00 | 5.98 | -7.02 | 266.64 | -41.41 | 103.73 | 0.6780 | 422.0 | 242.5 | |
| 2.81 | -22.00 | 1.92 | -22.00 | -8.89 | 266.27 | -41.77 | 106.29 | 0.6879 | 825.6 | 999999 | |
| 0.54 | 2.00 | 0.38 | 1.40 | -13.15 | 265.51 | -42.53 | 111.87 | 0.7116 | -714.0 | -562.6 | |
| 0.00 | 2.27 | 0.00 | 1.64 | -15.96 | 264.69 | -43.35 | 115.20 | 0.7317 | -242.0 | -379.9 | |
| 11.99 | -22.00 | 8.23 | -22.00 | -9.53 | 265.93 | -42.11 | 107.06 | 0.6941 | 772.8 | 999999 | |
| 4.45 | -22.00 | 3.07 | -22.00 | -10.47 | 265.73 | -42.31 | 108.30 | 0.6995 | 728.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -12.91 | 265.26 | -42.78 | 111.44 | 0.7135 | -633.0 | -515.9 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -12.56 | 265.30 | -42.75 | 110.98 | 0.7119 | -675.0 | -470.1 | |
| 0.00 | 1.54 | 0.00 | 1.13 | -15.81 | 264.25 | -43.79 | 114.81 | 0.7359 | -622.0 | -520.8 | |
| 2.09 | -22.00 | 1.45 | -22.00 | -10.45 | 265.36 | -42.69 | 108.14 | 0.7039 | 518.8 | 999999 | |
| 0.64 | 16.16 | 0.45 | 11.35 | -11.69 | 265.13 | -42.91 | 109.73 | 0.7107 | -652.6 | -231.2 | |
| 0.00 | 4.18 | 0.00 | 2.89 | -9.95 | 265.40 | -42.64 | 107.46 | 0.7018 | 605.0 | 567.1 | |
| 1.27 | -68.00 | 0.89 | -68.00 | -11.40 | 265.10 | -42.94 | 109.34 | 0.7100 | 148.6 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.50 | -12.26 | 264.84 | -43.20 | 110.40 | 0.7160 | -689.0 | -520.4 | |
| 0.00 | 1.63 | 0.00 | 1.19 | -15.60 | 264.05 | -44.00 | 114.45 | 0.7372 | -668.0 | -526.7 | |
| 0.00 | 4.63 | 0.00 | 3.24 | -10.81 | 265.04 | -43.00 | 108.51 | 0.7088 | -44.0 | -60.4 | |
| 0.45 | 2.91 | 0.32 | 2.02 | -9.65 | 265.07 | -42.98 | 106.93 | 0.7048 | 730.0 | 480.4 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -12.24 | 264.55 | -43.50 | 110.25 | 0.7193 | -256.0 | -195.6 | |
| 0.00 | 4.81 | 0.00 | 3.36 | -9.94 | 264.94 | -43.11 | 107.28 | 0.7072 | 89.0 | 97.2 | |
| 0.36 | 1.27 | 0.25 | 0.89 | -9.44 | 264.89 | -43.15 | 106.57 | 0.7062 | 719.5 | 625.2 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -13.56 | 264.04 | -44.01 | 111.79 | 0.7297 | -688.0 | -614.3 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -13.02 | 264.07 | -43.97 | 111.10 | 0.7273 | -601.0 | -516.4 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -12.89 | 263.97 | -44.07 | 110.90 | 0.7281 | -506.0 | -383.4 | |
| 1.18 | 5.27 | 0.87 | 3.86 | -14.21 | 263.39 | -44.65 | 112.39 | 0.7391 | -731.5 | -485.4 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -12.69 | 263.36 | -44.69 | 110.40 | 0.7342 | -275.0 | -285.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
