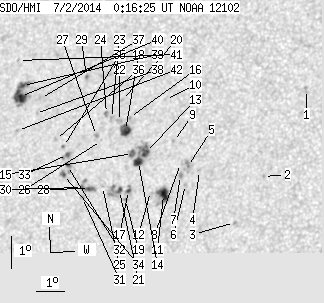

SDO HMI 2014-07-02 00:16:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.40 | 167.19 | 30.20 | 97.88 | 12.92 | 276.51 | -30.83 | 70.16 | 0.5328 | -246.7 | -146.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 00:16:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.00 | 0.00 | 1.66 | 14.96 | 283.22 | -24.13 | 61.73 | 0.4502 | -449.0 | -569.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 12.24 | 282.03 | -25.31 | 68.32 | 0.4515 | -845.0 | -688.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 10.80 | 281.17 | -26.18 | 71.90 | 0.4577 | -1018.0 | -721.2 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 12.37 | 279.79 | -27.56 | 69.46 | 0.4845 | -738.0 | -560.9 | |
| 0.00 | 5.99 | 0.00 | 3.41 | 12.49 | 279.35 | -28.00 | 69.49 | 0.4913 | -920.0 | -745.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 11.93 | 279.34 | -28.00 | 70.59 | 0.4890 | -899.0 | -760.4 | |
| 0.00 | 2.72 | 0.00 | 1.55 | 12.21 | 279.13 | -28.21 | 70.16 | 0.4932 | -816.0 | -644.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 12.58 | 279.09 | -28.26 | 69.46 | 0.4954 | -504.0 | -544.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 13.25 | 278.76 | -28.59 | 68.36 | 0.5031 | -699.0 | -574.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 14.55 | 278.30 | -29.05 | 66.22 | 0.5156 | -522.0 | -451.3 | |
| 8.35 | 15.89 | 4.77 | 9.07 | 11.61 | 278.60 | -28.75 | 71.61 | 0.4984 | -1026.8 | -514.6 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 11.69 | 278.13 | -29.22 | 71.69 | 0.5055 | -271.0 | -419.2 | |
| 4.18 | 27.70 | 2.41 | 16.01 | 12.89 | 277.80 | -29.54 | 69.58 | 0.5149 | -1088.8 | -722.7 | |
| 5.45 | -13.00 | 3.15 | -13.00 | 12.60 | 277.59 | -29.76 | 70.22 | 0.5168 | -1015.9 | 999999 | |
| 2.45 | -13.00 | 1.42 | -13.00 | 12.84 | 277.34 | -30.01 | 69.90 | 0.5213 | -758.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 13.96 | 277.08 | -30.27 | 68.00 | 0.5296 | -714.0 | -577.4 | |
| 1.27 | 4.36 | 0.73 | 2.52 | 11.70 | 277.34 | -30.01 | 72.04 | 0.5169 | -968.9 | -762.2 | |
| 8.17 | 11.17 | 4.76 | 6.51 | 13.55 | 276.99 | -30.36 | 68.79 | 0.5291 | -910.7 | -629.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 11.42 | 277.26 | -30.08 | 72.60 | 0.5169 | -713.0 | -610.3 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 14.48 | 276.71 | -30.64 | 67.28 | 0.5370 | -524.0 | -405.2 | |
| 1.82 | 14.17 | 1.05 | 8.23 | 11.69 | 277.01 | -30.33 | 72.20 | 0.5214 | -728.8 | -229.9 | |
| 0.00 | 2.91 | 0.00 | 1.70 | 13.82 | 276.73 | -30.62 | 68.43 | 0.5338 | -585.0 | -522.5 | |
| 0.00 | 2.63 | 0.00 | 1.55 | 13.91 | 276.43 | -30.92 | 68.44 | 0.5384 | -601.0 | -440.1 | |
| 0.00 | 2.27 | 0.00 | 1.34 | 14.06 | 276.22 | -31.13 | 68.28 | 0.5418 | -496.0 | -520.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 11.80 | 276.38 | -30.96 | 72.28 | 0.5307 | 302.0 | 264.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 13.22 | 276.16 | -31.19 | 69.81 | 0.5392 | -444.0 | -546.3 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 13.37 | 275.95 | -31.39 | 69.64 | 0.5426 | -748.0 | -582.2 | |
| 2.54 | 9.63 | 1.49 | 5.65 | 11.73 | 275.92 | -31.43 | 72.61 | 0.5370 | 969.7 | 759.5 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 15.19 | 275.30 | -32.05 | 66.80 | 0.5593 | -777.0 | -639.6 | |
| 0.64 | -28.00 | 0.37 | -28.00 | 11.75 | 275.66 | -31.69 | 72.68 | 0.5408 | 806.7 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.23 | 11.44 | 275.70 | -31.65 | 73.22 | 0.5392 | 871.0 | 702.6 | |
| 1.09 | 4.27 | 0.65 | 2.53 | 12.41 | 275.02 | -32.33 | 71.76 | 0.5520 | 967.6 | 732.7 | |
| 1.27 | 4.72 | 0.76 | 2.81 | 12.75 | 274.97 | -32.37 | 71.18 | 0.5538 | 913.4 | 604.5 | |
| 1.54 | 3.36 | 0.92 | 1.99 | 12.13 | 274.91 | -32.44 | 72.30 | 0.5525 | 792.2 | 599.0 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 13.00 | 274.79 | -32.56 | 70.84 | 0.5572 | 774.0 | 624.6 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 13.21 | 274.46 | -32.89 | 70.62 | 0.5625 | 826.0 | 568.6 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 14.46 | 273.69 | -33.65 | 68.83 | 0.5776 | 585.0 | 626.4 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 13.99 | 273.58 | -33.76 | 69.67 | 0.5773 | 530.0 | 587.1 | |
| 1.91 | 26.25 | 1.17 | 16.04 | 14.85 | 272.94 | -34.41 | 68.54 | 0.5891 | 760.7 | 628.9 | |
| 10.72 | -39.00 | 6.55 | -39.00 | 14.50 | 272.92 | -34.42 | 69.11 | 0.5880 | 869.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 15.62 | 272.64 | -34.71 | 67.42 | 0.5960 | 523.0 | 442.1 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 13.45 | 272.99 | -34.36 | 70.83 | 0.5833 | 683.0 | 580.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
