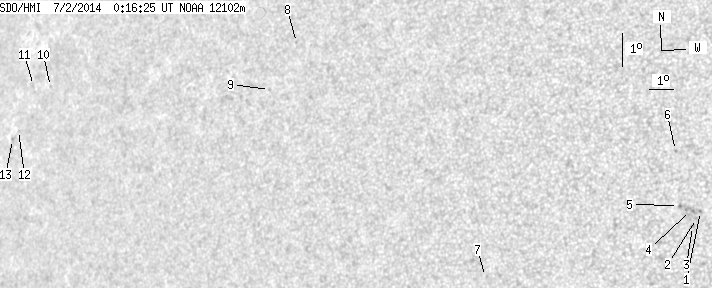

SDO HMI 2014-07-02 00:16:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.15 | 0.00 | 10.75 | 5.93 | 267.04 | -40.31 | 84.32 | 0.6321 | -184.5 | -194.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 00:16:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.61 | 4.69 | 279.06 | -28.29 | 85.60 | 0.4756 | -969.0 | -828.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 4.47 | 278.93 | -28.42 | 86.06 | 0.4775 | -818.0 | -693.1 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 4.23 | 278.80 | -28.55 | 86.59 | 0.4793 | -726.0 | -557.6 | |
| 0.00 | 4.54 | 0.00 | 2.56 | 4.71 | 278.71 | -28.64 | 85.58 | 0.4810 | -715.0 | -706.0 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 4.85 | 278.28 | -29.06 | 85.33 | 0.4876 | -558.0 | -564.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 6.53 | 278.09 | -29.26 | 81.93 | 0.4924 | -749.0 | -573.8 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 2.50 | 271.37 | -35.98 | 89.81 | 0.5891 | -508.0 | -486.8 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 9.40 | 263.16 | -44.19 | 79.57 | 0.7015 | 409.0 | 388.3 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 7.92 | 262.21 | -45.14 | 81.76 | 0.7117 | 576.0 | 460.5 | |
| 0.00 | 0.54 | 0.00 | 0.48 | 7.61 | 251.61 | -55.74 | 82.80 | 0.8278 | 494.0 | 437.2 | |
| 0.00 | 1.45 | 0.00 | 1.31 | 7.60 | 250.66 | -56.68 | 82.84 | 0.8369 | 115.0 | 105.6 | |
| 0.00 | 0.64 | 0.00 | 0.58 | 6.19 | 250.07 | -57.27 | 84.54 | 0.8423 | 572.0 | 487.7 | |
| 0.00 | 1.27 | 0.00 | 1.17 | 5.91 | 249.78 | -57.57 | 84.88 | 0.8450 | 478.0 | 403.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
