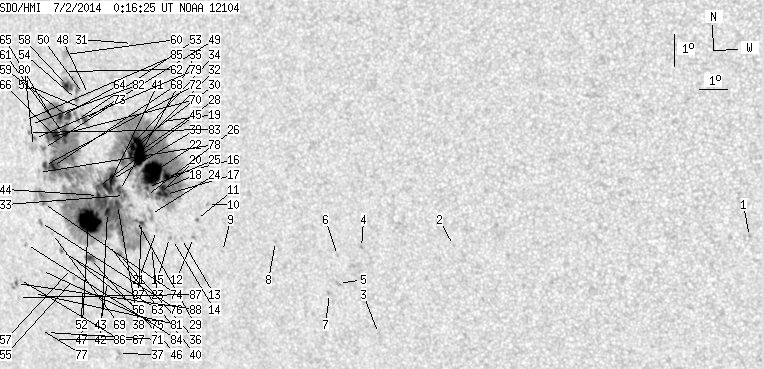

SDO HMI 2014-07-02 00:16:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 219.06 | 1263.65 | 144.93 | 837.53 | -10.77 | 268.03 | -39.32 | 109.97 | 0.6644 | 369.8 | 203.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 00:16:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.06 | 290.58 | -16.77 | 132.32 | 0.3832 | 877.0 | 677.6 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -12.53 | 280.57 | -26.77 | 120.75 | 0.5137 | 684.0 | 511.2 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -15.41 | 277.50 | -29.84 | 122.74 | 0.5725 | 660.0 | 431.2 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -12.67 | 277.28 | -30.06 | 118.26 | 0.5570 | 778.0 | 599.1 | |
| 0.00 | 2.54 | 0.00 | 1.54 | -13.84 | 276.28 | -31.06 | 119.36 | 0.5770 | 616.0 | 583.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -12.95 | 276.37 | -30.97 | 118.02 | 0.5703 | 604.0 | 497.9 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -14.17 | 275.90 | -31.45 | 119.58 | 0.5838 | 593.0 | 506.1 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -12.57 | 274.14 | -33.21 | 115.89 | 0.5964 | 566.0 | 492.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -12.94 | 272.07 | -35.27 | 115.19 | 0.6242 | 531.0 | 508.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -11.47 | 271.73 | -35.62 | 112.78 | 0.6213 | 722.0 | 648.8 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -11.96 | 271.23 | -36.12 | 113.25 | 0.6298 | 758.0 | 634.1 | |
| 0.00 | 1.63 | 0.00 | 1.05 | -12.53 | 271.02 | -36.33 | 113.99 | 0.6352 | 699.0 | 615.6 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -12.58 | 270.54 | -36.80 | 113.80 | 0.6412 | 743.0 | 630.3 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -12.62 | 270.18 | -37.16 | 113.67 | 0.6459 | 309.0 | 361.9 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -12.56 | 270.08 | -37.27 | 113.52 | 0.6469 | 848.0 | 658.7 | |
| 4.18 | 1113.93 | 2.68 | 736.94 | -10.64 | 270.26 | -37.08 | 110.78 | 0.6361 | 1381.0 | 211.2 | |
| 3.09 | -16.00 | 1.99 | -16.00 | -11.21 | 270.14 | -37.21 | 111.56 | 0.6400 | 1014.6 | 999999 | |
| 4.09 | -16.00 | 2.63 | -16.00 | -11.02 | 270.09 | -37.26 | 111.26 | 0.6399 | 1031.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -8.92 | 270.30 | -37.05 | 108.19 | 0.6287 | -84.0 | -7.9 | |
| 2.18 | -16.00 | 1.41 | -16.00 | -11.18 | 269.91 | -37.44 | 111.41 | 0.6428 | 863.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -12.36 | 269.60 | -37.75 | 112.98 | 0.6518 | 570.0 | 467.9 | |
| 36.60 | -16.00 | 23.61 | -16.00 | -10.53 | 269.73 | -37.61 | 110.36 | 0.6423 | 1211.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -12.90 | 269.30 | -38.04 | 113.61 | 0.6578 | 472.0 | 357.2 | |
| 0.00 | 5.99 | 0.00 | 3.90 | -11.86 | 269.45 | -37.90 | 112.18 | 0.6515 | 637.0 | 590.3 | |
| 1.18 | -16.00 | 0.77 | -16.00 | -11.01 | 269.46 | -37.88 | 110.94 | 0.6476 | 578.8 | 999999 | |
| 0.36 | -16.00 | 0.24 | -16.00 | -11.26 | 269.38 | -37.96 | 111.28 | 0.6497 | 453.5 | 999999 | |
| 1.63 | -16.00 | 1.07 | -16.00 | -12.12 | 269.04 | -38.30 | 112.36 | 0.6575 | 806.2 | 999999 | |
| 27.34 | -16.00 | 17.68 | -16.00 | -9.89 | 269.31 | -38.03 | 109.21 | 0.6450 | 1264.6 | 999999 | |
| 0.64 | -16.00 | 0.42 | -16.00 | -12.06 | 268.85 | -38.49 | 112.19 | 0.6596 | 513.4 | 999999 | |
| 3.91 | -16.00 | 2.53 | -16.00 | -9.74 | 269.06 | -38.29 | 108.88 | 0.6477 | 899.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.22 | -6.53 | 269.42 | -37.92 | 104.16 | 0.6320 | 583.0 | 478.5 | |
| 4.81 | -16.00 | 3.13 | -16.00 | -9.99 | 268.94 | -38.40 | 109.20 | 0.6501 | 713.6 | 999999 | |
| 1.09 | -16.00 | 0.72 | -16.00 | -11.29 | 268.50 | -38.84 | 110.91 | 0.6606 | 749.0 | 999999 | |
| 2.54 | -16.00 | 1.66 | -16.00 | -9.97 | 268.67 | -38.68 | 109.05 | 0.6534 | 575.6 | 999999 | |
| 4.63 | -16.00 | 3.05 | -16.00 | -11.14 | 268.33 | -39.02 | 110.61 | 0.6622 | 833.4 | 999999 | |
| 0.73 | 5.72 | 0.49 | 3.83 | -13.17 | 267.97 | -39.38 | 113.32 | 0.6750 | -639.1 | -285.5 | |
| 0.00 | 2.45 | 0.00 | 1.69 | -16.35 | 267.22 | -40.13 | 117.29 | 0.6982 | 706.0 | 558.9 | |
| 4.54 | -16.00 | 3.01 | -16.00 | -11.58 | 268.18 | -39.17 | 111.18 | 0.6659 | 97.0 | 999999 | |
| 7.45 | -16.00 | 4.92 | -16.00 | -10.80 | 268.06 | -39.28 | 110.00 | 0.6641 | 786.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -12.86 | 267.58 | -39.77 | 112.71 | 0.6783 | -565.0 | -464.6 | |
| 6.81 | -16.00 | 4.52 | -16.00 | -11.06 | 267.86 | -39.49 | 110.28 | 0.6676 | -276.6 | 999999 | |
| 3.54 | -16.00 | 2.36 | -16.00 | -11.85 | 267.73 | -39.62 | 111.35 | 0.6724 | -818.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -14.05 | 267.30 | -40.05 | 114.21 | 0.6867 | -715.0 | -579.2 | |
| 2.63 | -16.00 | 1.76 | -16.00 | -11.32 | 267.45 | -39.90 | 110.48 | 0.6736 | 108.4 | 999999 | |
| 3.63 | -16.00 | 2.42 | -16.00 | -11.04 | 267.50 | -39.85 | 110.10 | 0.6720 | 227.1 | 999999 | |
| 4.72 | 7.27 | 3.22 | 4.96 | -13.33 | 266.74 | -40.60 | 112.97 | 0.6901 | -889.1 | -673.6 | |
| 38.60 | -16.00 | 26.11 | -16.00 | -12.13 | 266.90 | -40.45 | 111.37 | 0.6834 | -1116.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -8.17 | 267.51 | -39.84 | 105.94 | 0.6618 | 569.0 | 553.9 | |
| 2.82 | 6.99 | 1.87 | 4.64 | -8.95 | 267.24 | -40.10 | 106.99 | 0.6676 | 1007.3 | 697.5 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -8.14 | 267.31 | -40.04 | 105.83 | 0.6642 | 648.0 | 656.2 | |
| 0.00 | 1.45 | 0.00 | 0.96 | -8.61 | 267.21 | -40.14 | 106.48 | 0.6669 | 666.0 | 619.4 | |
| 0.00 | 2.18 | 0.00 | 1.51 | -14.34 | 266.19 | -41.15 | 114.08 | 0.7006 | -688.0 | -485.5 | |
| 0.82 | -16.00 | 0.54 | -16.00 | -8.96 | 266.96 | -40.39 | 106.90 | 0.6712 | 797.9 | 999999 | |
| 0.73 | 24.16 | 0.48 | 16.07 | -8.34 | 267.00 | -40.34 | 106.01 | 0.6687 | 698.4 | 625.2 | |
| 0.00 | 2.00 | 0.00 | 1.39 | -14.00 | 265.94 | -41.41 | 113.50 | 0.7022 | -652.0 | -475.1 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -13.36 | 265.99 | -41.36 | 112.67 | 0.6989 | -626.0 | -529.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -13.68 | 265.88 | -41.47 | 113.05 | 0.7015 | -681.0 | -510.1 | |
| 6.90 | -54.00 | 4.60 | -54.00 | -7.92 | 266.69 | -40.66 | 105.28 | 0.6713 | 754.9 | 999999 | |
| 4.45 | -16.00 | 2.98 | -16.00 | -8.88 | 266.56 | -40.78 | 106.64 | 0.6758 | 816.6 | 999999 | |
| 0.00 | 6.18 | 0.00 | 4.10 | -6.96 | 266.72 | -40.63 | 103.89 | 0.6681 | 338.0 | 178.8 | |
| 8.26 | -16.00 | 5.57 | -16.00 | -9.45 | 266.36 | -40.99 | 107.37 | 0.6802 | 1025.5 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.51 | -7.49 | 266.62 | -40.73 | 104.63 | 0.6709 | 569.0 | 498.9 | |
| 0.64 | 1.82 | 0.44 | 1.26 | -13.15 | 265.57 | -41.77 | 112.20 | 0.7029 | -584.7 | -487.6 | |
| 3.09 | -16.00 | 2.08 | -16.00 | -8.89 | 266.28 | -41.07 | 106.55 | 0.6794 | 824.5 | 999999 | |
| 0.27 | -16.00 | 0.18 | -16.00 | -9.21 | 266.11 | -41.24 | 106.94 | 0.6825 | 555.3 | 999999 | |
| 7.90 | -16.00 | 5.36 | -16.00 | -9.53 | 265.98 | -41.37 | 107.34 | 0.6851 | 866.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -15.99 | 264.59 | -42.75 | 115.53 | 0.7254 | -608.0 | -503.5 | |
| 3.63 | -16.00 | 2.48 | -16.00 | -10.47 | 265.70 | -41.64 | 108.57 | 0.6916 | 789.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -12.59 | 265.31 | -42.04 | 111.33 | 0.7038 | -623.0 | -464.5 | |
| 2.18 | -16.00 | 1.49 | -16.00 | -9.57 | 265.68 | -41.66 | 107.29 | 0.6888 | 591.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -15.78 | 264.30 | -43.04 | 115.11 | 0.7277 | -659.0 | -563.2 | |
| 2.82 | -16.00 | 1.93 | -16.00 | -10.45 | 265.37 | -41.97 | 108.41 | 0.6955 | 504.3 | 999999 | |
| 0.91 | -16.00 | 0.62 | -16.00 | -9.92 | 265.42 | -41.93 | 107.69 | 0.6931 | 744.7 | 999999 | |
| 0.73 | 17.44 | 0.50 | 12.10 | -11.65 | 265.11 | -42.23 | 109.97 | 0.7027 | -823.6 | -100.6 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -13.79 | 264.58 | -42.76 | 112.63 | 0.7167 | -467.0 | -409.3 | |
| 0.54 | 2.54 | 0.38 | 1.78 | -12.26 | 264.87 | -42.48 | 110.70 | 0.7077 | -617.5 | -454.5 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -15.69 | 264.06 | -43.28 | 114.89 | 0.7299 | -578.0 | -479.5 | |
| 0.00 | 2.63 | 0.00 | 1.82 | -10.68 | 265.08 | -42.26 | 108.62 | 0.6997 | -22.0 | -23.3 | |
| 0.54 | 1.54 | 0.37 | 1.06 | -9.62 | 265.09 | -42.26 | 107.15 | 0.6961 | 672.8 | 560.7 | |
| 0.00 | 7.08 | 0.00 | 4.89 | -9.87 | 265.01 | -42.34 | 107.47 | 0.6979 | 187.0 | 168.8 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -14.54 | 264.06 | -43.29 | 113.39 | 0.7254 | -634.0 | -502.7 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -9.19 | 264.99 | -42.36 | 106.51 | 0.6960 | 470.0 | 458.4 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -9.44 | 264.87 | -42.48 | 106.82 | 0.6982 | 793.0 | 702.2 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -12.98 | 264.12 | -43.23 | 111.36 | 0.7189 | -519.0 | -510.5 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -9.07 | 264.75 | -42.59 | 106.26 | 0.6985 | 510.0 | 371.9 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -14.11 | 263.55 | -43.79 | 112.62 | 0.7294 | -543.0 | -500.0 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -14.69 | 263.36 | -43.98 | 113.30 | 0.7336 | -550.0 | -503.8 | |
| 0.91 | 5.18 | 0.66 | 3.75 | -14.25 | 263.39 | -43.96 | 112.73 | 0.7317 | -773.9 | -518.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
