SDO HMI 2014-07-02 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.93 | 205.35 | 50.61 | 151.93 | 14.85 | 259.81 | -47.13 | 72.54 | 0.7445 | -408.5 | -187.5 | |
|
previous
or next observation for the same group /

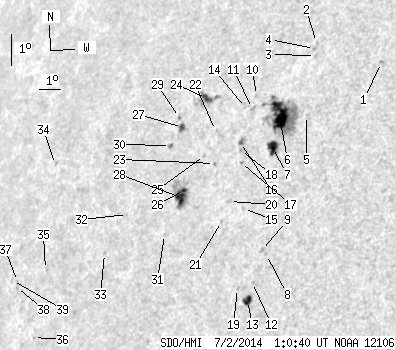

back to the solar disc SDO HMI 2014-07-02 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.11 | 17.79 | 265.48 | -41.46 | 66.96 | 0.6874 | -697.0 | -638.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 18.32 | 262.46 | -44.48 | 67.25 | 0.7235 | -504.0 | -420.4 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 17.91 | 262.55 | -44.39 | 67.78 | 0.7214 | -618.0 | -542.5 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 18.13 | 262.43 | -44.51 | 67.52 | 0.7233 | -669.0 | -549.4 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 16.02 | 262.71 | -44.23 | 70.30 | 0.7144 | -726.0 | -558.7 | |
| 31.97 | 88.73 | 23.01 | 63.75 | 15.98 | 261.51 | -45.43 | 70.69 | 0.7280 | -834.3 | -424.2 | |
| 9.54 | 13.35 | 6.85 | 9.58 | 14.97 | 261.47 | -45.47 | 72.06 | 0.7261 | -846.6 | -500.8 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 11.66 | 261.99 | -44.95 | 76.51 | 0.7138 | -483.0 | -482.3 | |
| 0.00 | 2.36 | 0.00 | 1.67 | 11.78 | 261.75 | -45.19 | 76.39 | 0.7169 | -580.0 | -495.8 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 16.57 | 260.27 | -46.67 | 70.22 | 0.7432 | -77.0 | -104.8 | |
| 0.00 | 2.09 | 0.00 | 1.54 | 16.15 | 260.21 | -46.73 | 70.78 | 0.7429 | -457.0 | -234.3 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 10.78 | 261.55 | -45.39 | 77.81 | 0.7178 | -577.0 | -509.3 | |
| 5.81 | 7.90 | 4.13 | 5.61 | 10.22 | 261.43 | -45.51 | 78.60 | 0.7185 | -600.2 | -248.7 | |
| 0.00 | 0.82 | 0.00 | 0.61 | 16.17 | 259.88 | -47.06 | 70.84 | 0.7466 | 303.0 | 296.1 | |
| 0.00 | 1.73 | 0.00 | 1.25 | 13.04 | 260.65 | -46.29 | 74.86 | 0.7318 | -611.0 | -496.7 | |
| 0.91 | 3.91 | 0.67 | 2.88 | 15.08 | 259.98 | -46.96 | 72.27 | 0.7432 | -587.0 | -276.1 | |
| 0.00 | 0.73 | 0.00 | 0.53 | 14.46 | 260.15 | -46.79 | 73.05 | 0.7401 | -548.0 | -513.0 | |
| 0.00 | 1.36 | 0.00 | 1.00 | 14.83 | 260.05 | -46.89 | 72.58 | 0.7420 | -566.0 | -474.2 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 10.57 | 260.92 | -46.02 | 78.19 | 0.7250 | -447.0 | -405.3 | |
| 0.00 | 2.63 | 0.00 | 1.93 | 13.23 | 259.96 | -46.97 | 74.73 | 0.7400 | -519.0 | -336.0 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 12.61 | 259.75 | -47.19 | 75.61 | 0.7414 | -453.0 | -414.1 | |
| 0.00 | 0.36 | 0.00 | 0.27 | 15.41 | 258.70 | -48.24 | 72.11 | 0.7579 | 524.0 | 556.8 | |
| 0.00 | 1.09 | 0.00 | 0.82 | 14.38 | 258.96 | -47.98 | 73.40 | 0.7532 | 683.0 | 613.8 | |
| 4.90 | 17.07 | 3.78 | 13.15 | 16.39 | 257.95 | -48.99 | 71.01 | 0.7679 | 758.5 | 597.0 | |
| 0.00 | 1.18 | 0.00 | 0.90 | 14.61 | 258.42 | -48.52 | 73.20 | 0.7596 | 801.0 | 599.3 | |
| 2.45 | 32.24 | 1.88 | 24.75 | 13.50 | 257.73 | -49.21 | 74.79 | 0.7652 | -802.6 | -225.1 | |
| 2.91 | 4.81 | 2.27 | 3.76 | 15.44 | 257.09 | -49.85 | 72.40 | 0.7752 | 709.4 | 563.3 | |
| 9.90 | -26.00 | 7.59 | -26.00 | 13.27 | 257.64 | -49.29 | 75.09 | 0.7658 | -779.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.14 | 15.75 | 256.84 | -50.10 | 72.06 | 0.7783 | 611.0 | 489.8 | |
| 0.54 | 2.36 | 0.43 | 1.86 | 14.86 | 256.69 | -50.25 | 73.21 | 0.7785 | 727.5 | 580.5 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 12.11 | 257.18 | -49.76 | 76.67 | 0.7693 | -501.0 | -380.5 | |
| 0.00 | 0.64 | 0.00 | 0.51 | 12.65 | 255.20 | -51.74 | 76.25 | 0.7910 | -478.0 | -415.6 | |
| 0.00 | 1.45 | 0.00 | 1.19 | 11.41 | 254.36 | -52.58 | 77.91 | 0.7983 | 631.0 | 453.5 | |
| 0.00 | 1.09 | 0.00 | 0.97 | 14.04 | 250.89 | -56.05 | 75.09 | 0.8348 | 382.0 | 323.2 | |
| 0.00 | 0.54 | 0.00 | 0.48 | 10.79 | 251.39 | -55.55 | 78.94 | 0.8275 | 461.0 | 489.7 | |
| 0.00 | 0.82 | 0.00 | 0.72 | 8.69 | 251.25 | -55.69 | 81.50 | 0.8277 | 537.0 | 448.9 | |
| 0.00 | 0.73 | 0.00 | 0.66 | 10.36 | 249.93 | -57.01 | 79.57 | 0.8410 | 410.0 | 386.5 | |
| 0.00 | 0.64 | 0.00 | 0.58 | 10.18 | 249.93 | -57.01 | 79.79 | 0.8410 | 412.0 | 362.1 | |
| 0.00 | 1.73 | 0.00 | 1.58 | 10.38 | 249.64 | -57.30 | 79.56 | 0.8438 | 188.0 | 128.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
