SDO HMI 2014-07-02 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.80 | 685.86 | 89.06 | 563.56 | -19.87 | 258.46 | -48.48 | 117.88 | 0.7984 | 413.3 | 112.3 | |
|
previous
or next observation for the same group /

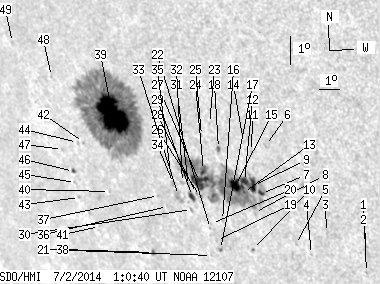

back to the solar disc SDO HMI 2014-07-02 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.40 | -23.89 | 266.76 | -40.18 | 126.75 | 0.7386 | 449.0 | 441.0 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -23.00 | 267.09 | -39.85 | 125.88 | 0.7303 | 616.0 | 521.2 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -22.58 | 265.49 | -41.45 | 124.45 | 0.7435 | 534.0 | 390.5 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -23.36 | 264.52 | -42.42 | 124.84 | 0.7568 | 473.0 | 363.1 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -23.04 | 263.92 | -43.02 | 124.14 | 0.7608 | 411.0 | 375.0 | |
| 0.00 | 1.91 | 0.00 | 1.41 | -19.75 | 263.79 | -43.15 | 120.09 | 0.7462 | 480.0 | 445.0 | |
| 2.27 | 225.69 | 1.73 | 176.66 | -21.36 | 263.03 | -43.91 | 121.68 | 0.7612 | 839.0 | -165.4 | |
| 0.00 | 1.82 | 0.00 | 1.40 | -22.02 | 262.45 | -44.49 | 122.17 | 0.7697 | 145.0 | 93.6 | |
| 6.18 | -7.00 | 4.71 | -7.00 | -21.11 | 262.76 | -44.18 | 121.23 | 0.7626 | 873.1 | 999999 | |
| 0.36 | 1.09 | 0.29 | 0.86 | -23.29 | 261.83 | -45.11 | 123.36 | 0.7813 | -622.0 | -522.6 | |
| 0.00 | 1.45 | 0.00 | 1.09 | -19.97 | 263.09 | -43.85 | 120.01 | 0.7542 | 322.0 | 369.8 | |
| 4.36 | -7.00 | 3.34 | -7.00 | -20.99 | 262.39 | -44.55 | 120.91 | 0.7656 | 816.0 | 999999 | |
| 0.27 | -7.00 | 0.21 | -7.00 | -21.36 | 262.20 | -44.74 | 121.26 | 0.7691 | 489.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -19.65 | 262.84 | -44.10 | 119.50 | 0.7553 | 475.0 | 428.7 | |
| 8.72 | -7.00 | 6.75 | -7.00 | -21.14 | 261.92 | -45.02 | 120.86 | 0.7708 | 707.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -22.35 | 260.81 | -46.13 | 121.77 | 0.7865 | -606.0 | -509.5 | |
| 0.00 | 1.91 | 0.00 | 1.55 | -23.35 | 260.27 | -46.67 | 122.68 | 0.7957 | -755.0 | -650.4 | |
| 1.00 | 2.36 | 0.77 | 1.82 | -19.93 | 261.59 | -45.35 | 119.25 | 0.7688 | 339.0 | 205.1 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -23.05 | 260.21 | -46.73 | 122.30 | 0.7949 | -432.0 | -420.1 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -22.47 | 260.23 | -46.71 | 121.64 | 0.7923 | -303.0 | -343.6 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -23.57 | 259.72 | -47.22 | 122.68 | 0.8014 | -423.0 | -348.0 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -22.65 | 260.10 | -46.84 | 121.79 | 0.7942 | -544.0 | -516.3 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -19.11 | 261.47 | -45.46 | 118.20 | 0.7665 | 518.0 | 435.5 | |
| 3.63 | -7.00 | 2.87 | -7.00 | -20.69 | 260.60 | -46.34 | 119.71 | 0.7815 | -906.1 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -19.52 | 260.95 | -45.99 | 118.47 | 0.7733 | 401.0 | 395.0 | |
| 0.00 | 1.63 | 0.00 | 1.31 | -21.58 | 260.09 | -46.85 | 120.53 | 0.7899 | -667.0 | -619.8 | |
| 14.80 | -7.00 | 11.82 | -7.00 | -21.07 | 260.25 | -46.69 | 120.01 | 0.7863 | -829.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -21.48 | 259.93 | -47.00 | 120.35 | 0.7909 | -385.0 | -394.6 | |
| 2.82 | 4.81 | 2.28 | 3.90 | -21.59 | 259.69 | -47.24 | 120.37 | 0.7936 | -481.8 | -267.6 | |
| 0.00 | 1.63 | 0.00 | 1.34 | -22.04 | 259.45 | -47.49 | 120.78 | 0.7976 | -224.0 | -188.8 | |
| 0.00 | 1.73 | 0.00 | 1.39 | -21.23 | 259.66 | -47.28 | 119.93 | 0.7925 | -496.0 | -406.4 | |
| 0.00 | 2.54 | 0.00 | 2.06 | -21.14 | 259.40 | -47.54 | 119.71 | 0.7944 | -107.0 | -133.1 | |
| 0.00 | 10.17 | 0.00 | 8.35 | -21.58 | 259.01 | -47.93 | 120.07 | 0.7998 | 304.0 | 238.3 | |
| 0.00 | 2.54 | 0.00 | 2.09 | -21.19 | 258.94 | -48.00 | 119.58 | 0.7989 | 229.0 | 175.8 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -20.82 | 258.95 | -47.99 | 119.15 | 0.7974 | 113.0 | 159.1 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -21.98 | 258.29 | -48.65 | 120.22 | 0.8078 | 618.0 | 521.9 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -21.63 | 258.00 | -48.94 | 119.69 | 0.8090 | 623.0 | 566.0 | |
| 1.27 | 2.72 | 1.11 | 2.39 | -23.59 | 256.78 | -50.16 | 121.43 | 0.8268 | -621.7 | -436.4 | |
| 62.12 | 398.33 | 52.27 | 335.98 | -19.00 | 256.84 | -50.10 | 116.17 | 0.8104 | 1024.3 | 275.7 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -21.59 | 255.49 | -51.44 | 118.67 | 0.8308 | -420.0 | -356.3 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -22.82 | 254.31 | -52.63 | 119.60 | 0.8446 | -517.0 | -475.2 | |
| 0.00 | 1.18 | 0.00 | 1.05 | -20.00 | 254.90 | -52.04 | 116.62 | 0.8309 | 452.0 | 365.5 | |
| 0.00 | 1.18 | 0.00 | 1.09 | -21.87 | 253.73 | -53.21 | 118.33 | 0.8464 | -494.0 | -424.7 | |
| 0.00 | 1.45 | 0.00 | 1.30 | -20.01 | 254.57 | -52.37 | 116.52 | 0.8338 | 314.0 | 195.8 | |
| 0.00 | 1.27 | 0.00 | 1.17 | -21.37 | 253.78 | -53.16 | 117.79 | 0.8445 | -376.0 | -288.1 | |
| 1.00 | 2.09 | 0.91 | 1.91 | -21.00 | 253.86 | -53.08 | 117.40 | 0.8427 | 384.4 | 220.0 | |
| 0.00 | 1.00 | 0.00 | 0.91 | -20.28 | 253.63 | -53.31 | 116.51 | 0.8426 | -551.0 | -472.9 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -17.87 | 254.15 | -52.78 | 113.92 | 0.8313 | -378.0 | -388.2 | |
| 0.00 | 1.36 | 0.00 | 1.25 | -16.84 | 252.48 | -54.46 | 112.22 | 0.8433 | -94.0 | -131.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
