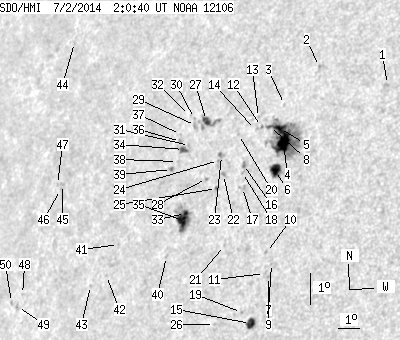

SDO HMI 2014-07-02 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.87 | 216.16 | 46.38 | 159.31 | 14.91 | 259.51 | -46.88 | 72.40 | 0.7416 | -312.1 | -133.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.80 | 17.81 | 265.60 | -40.79 | 66.68 | 0.6796 | -721.0 | -567.8 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 18.28 | 262.50 | -43.89 | 67.12 | 0.7168 | -577.0 | -505.4 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 17.04 | 261.31 | -45.08 | 69.17 | 0.7266 | -380.0 | -319.8 | |
| 21.71 | 93.55 | 15.45 | 66.58 | 15.85 | 261.62 | -44.77 | 70.69 | 0.7202 | -964.5 | -434.5 | |
| 6.36 | -4.00 | 4.55 | -4.00 | 16.28 | 261.31 | -45.07 | 70.19 | 0.7247 | -569.4 | 999999 | |
| 9.36 | 12.44 | 6.65 | 8.85 | 14.97 | 261.50 | -44.89 | 71.93 | 0.7194 | -854.8 | -565.1 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 12.09 | 262.01 | -44.38 | 75.81 | 0.7077 | -539.0 | -511.1 | |
| 1.09 | -4.00 | 0.79 | -4.00 | 16.33 | 260.85 | -45.54 | 70.25 | 0.7301 | -257.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 11.69 | 261.96 | -44.43 | 76.39 | 0.7076 | -539.0 | -424.8 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 12.42 | 261.72 | -44.67 | 75.40 | 0.7118 | -524.0 | -510.0 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 11.77 | 261.77 | -44.62 | 76.30 | 0.7101 | -593.0 | -522.6 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 16.32 | 260.48 | -45.90 | 70.36 | 0.7341 | -344.0 | -188.8 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 16.59 | 260.26 | -46.13 | 70.05 | 0.7372 | -362.0 | -289.4 | |
| 0.00 | 0.54 | 0.00 | 0.40 | 16.21 | 260.24 | -46.15 | 70.56 | 0.7366 | -334.0 | -213.7 | |
| 6.18 | 8.17 | 4.34 | 5.75 | 10.22 | 261.45 | -44.94 | 78.53 | 0.7116 | -679.0 | -318.8 | |
| 0.00 | 2.54 | 0.00 | 1.86 | 15.11 | 260.01 | -46.38 | 72.10 | 0.7367 | -589.0 | -480.6 | |
| 0.00 | 2.82 | 0.00 | 2.04 | 14.39 | 260.16 | -46.22 | 73.03 | 0.7335 | -472.0 | -432.8 | |
| 0.00 | 1.27 | 0.00 | 0.93 | 14.86 | 260.04 | -46.35 | 72.43 | 0.7359 | -572.0 | -528.6 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 10.54 | 260.99 | -45.40 | 78.15 | 0.7175 | -613.0 | -509.2 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 16.03 | 259.51 | -46.88 | 70.99 | 0.7443 | -160.0 | -37.9 | |
| 0.00 | 0.73 | 0.00 | 0.53 | 12.57 | 259.80 | -46.59 | 75.56 | 0.7344 | -523.0 | -471.6 | |
| 0.00 | 2.27 | 0.00 | 1.68 | 14.76 | 259.18 | -47.20 | 72.74 | 0.7453 | 479.0 | 457.0 | |
| 0.00 | 3.27 | 0.00 | 2.44 | 15.35 | 258.92 | -47.47 | 72.03 | 0.7494 | 524.0 | 502.3 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 15.19 | 258.83 | -47.56 | 72.26 | 0.7501 | 702.0 | 612.2 | |
| 0.00 | 1.45 | 0.00 | 1.08 | 14.32 | 258.98 | -47.41 | 73.38 | 0.7467 | 703.0 | 615.5 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 10.13 | 259.86 | -46.53 | 78.87 | 0.7304 | -451.0 | -335.1 | |
| 4.00 | 14.81 | 3.05 | 11.28 | 16.41 | 257.87 | -48.52 | 70.88 | 0.7629 | 731.5 | 594.1 | |
| 0.00 | 1.18 | 0.00 | 0.89 | 14.61 | 258.43 | -47.96 | 73.10 | 0.7533 | 767.0 | 557.9 | |
| 0.00 | 2.82 | 0.00 | 2.17 | 16.24 | 257.40 | -48.99 | 71.21 | 0.7676 | 583.0 | 460.7 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 16.45 | 257.28 | -49.11 | 70.96 | 0.7693 | 465.0 | 380.6 | |
| 0.00 | 1.45 | 0.00 | 1.12 | 15.60 | 257.31 | -49.08 | 72.04 | 0.7673 | 534.0 | 512.4 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 16.54 | 257.00 | -49.39 | 70.91 | 0.7723 | 230.0 | 253.2 | |
| 2.27 | 26.89 | 1.72 | 20.40 | 13.49 | 257.75 | -48.64 | 74.70 | 0.7590 | -803.2 | -317.5 | |
| 2.63 | 4.72 | 2.04 | 3.65 | 15.47 | 257.06 | -49.32 | 72.26 | 0.7697 | 750.7 | 643.7 | |
| 9.63 | -33.00 | 7.30 | -33.00 | 13.27 | 257.66 | -48.72 | 75.00 | 0.7595 | -801.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.34 | 15.71 | 256.84 | -49.55 | 72.00 | 0.7725 | 638.0 | 477.6 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 15.93 | 256.77 | -49.62 | 71.73 | 0.7737 | 339.0 | 264.4 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 15.09 | 256.89 | -49.49 | 72.79 | 0.7708 | 618.0 | 524.2 | |
| 0.64 | 2.09 | 0.49 | 1.62 | 14.83 | 256.68 | -49.71 | 73.16 | 0.7726 | 722.0 | 600.4 | |
| 0.00 | 1.27 | 0.00 | 0.97 | 12.13 | 257.19 | -49.20 | 76.56 | 0.7631 | -540.0 | -445.6 | |
| 0.00 | 1.00 | 0.00 | 0.80 | 12.41 | 254.76 | -51.63 | 76.54 | 0.7895 | -275.0 | -206.5 | |
| 0.00 | 1.00 | 0.00 | 0.81 | 11.44 | 254.41 | -51.98 | 77.81 | 0.7921 | 592.0 | 513.6 | |
| 0.00 | 1.09 | 0.00 | 0.89 | 11.10 | 253.68 | -52.71 | 78.32 | 0.7994 | 436.0 | 357.1 | |
| 0.00 | 1.45 | 0.00 | 1.33 | 18.58 | 250.01 | -56.38 | 69.76 | 0.8433 | 254.0 | 269.0 | |
| 0.00 | 1.73 | 0.00 | 1.51 | 14.14 | 251.25 | -55.14 | 74.86 | 0.8264 | 621.0 | 471.1 | |
| 0.00 | 0.64 | 0.00 | 0.56 | 13.98 | 251.19 | -55.19 | 75.06 | 0.8268 | 593.0 | 532.0 | |
| 0.00 | 1.36 | 0.00 | 1.20 | 14.13 | 250.97 | -55.41 | 74.91 | 0.8290 | 412.0 | 370.8 | |
| 0.00 | 1.09 | 0.00 | 0.97 | 10.68 | 250.14 | -56.25 | 79.14 | 0.8341 | 425.0 | 361.7 | |
| 0.00 | 2.18 | 0.00 | 1.95 | 10.30 | 249.96 | -56.43 | 79.61 | 0.8356 | 433.0 | 361.0 | |
| 0.00 | 1.36 | 0.00 | 1.23 | 10.41 | 249.59 | -56.80 | 79.50 | 0.8391 | 214.0 | 159.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
