SDO HMI 2014-07-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.07 | 0.00 | 14.39 | 5.01 | 272.93 | -32.91 | 85.47 | 0.5371 | -309.2 | -398.6 | |
|
previous
or next observation for the same group /

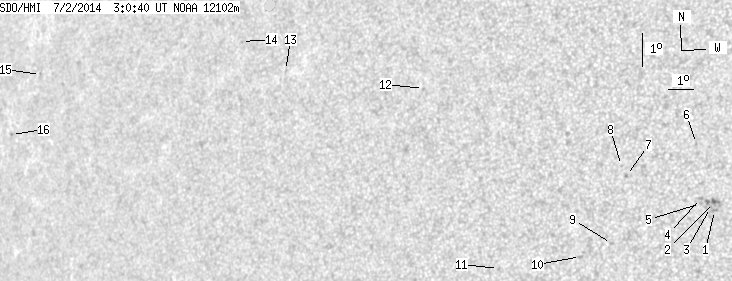

back to the solar disc SDO HMI 2014-07-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.06 | 4.44 | 278.97 | -26.87 | 86.06 | 0.4535 | -873.0 | -742.6 | |
| 0.00 | 7.81 | 0.00 | 4.34 | 4.68 | 278.93 | -26.91 | 85.53 | 0.4543 | -942.0 | -747.3 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 4.53 | 278.83 | -27.01 | 85.88 | 0.4557 | -684.0 | -637.6 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 4.79 | 278.48 | -27.36 | 85.33 | 0.4614 | -818.0 | -592.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 4.64 | 278.48 | -27.36 | 85.66 | 0.4612 | -554.0 | -470.0 | |
| 0.00 | 0.55 | 0.00 | 0.30 | 6.47 | 278.26 | -27.58 | 81.75 | 0.4668 | -628.0 | -533.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 5.43 | 275.86 | -29.98 | 84.29 | 0.5019 | -827.0 | -723.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 5.73 | 275.67 | -30.17 | 83.72 | 0.5051 | -607.0 | -562.0 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 3.35 | 275.42 | -30.42 | 88.46 | 0.5076 | 289.0 | 206.3 | |
| 0.00 | 2.18 | 0.00 | 1.27 | 2.92 | 274.33 | -31.51 | 89.27 | 0.5241 | -701.0 | -532.8 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 2.47 | 271.35 | -34.49 | 89.97 | 0.5678 | -661.0 | -495.0 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 7.88 | 268.15 | -37.69 | 80.98 | 0.6154 | 636.0 | 545.5 | |
| 0.00 | 0.73 | 0.00 | 0.50 | 8.25 | 262.50 | -43.34 | 81.14 | 0.6897 | 593.0 | 506.4 | |
| 0.00 | 0.45 | 0.00 | 0.32 | 9.07 | 260.47 | -45.37 | 80.20 | 0.7154 | 640.0 | 591.2 | |
| 0.00 | 1.00 | 0.00 | 0.86 | 7.69 | 251.00 | -54.84 | 82.69 | 0.8190 | -243.0 | -146.8 | |
| 0.00 | 0.91 | 0.00 | 0.80 | 5.80 | 249.74 | -56.10 | 85.01 | 0.8310 | 432.0 | 345.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
