SDO HMI 2014-07-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.02 | 218.13 | 49.70 | 158.14 | 14.92 | 259.85 | -45.99 | 72.21 | 0.7317 | -364.0 | -141.4 | |
|
previous
or next observation for the same group /

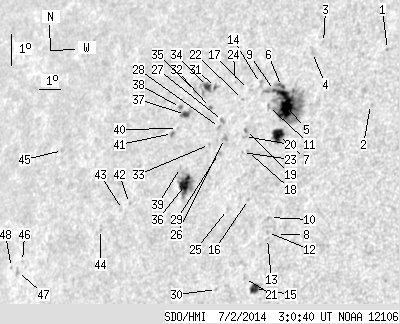

back to the solar disc SDO HMI 2014-07-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.79 | 17.80 | 265.47 | -40.37 | 66.54 | 0.6745 | -731.0 | -639.7 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 16.06 | 265.21 | -40.63 | 69.15 | 0.6719 | -408.0 | -364.3 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 17.93 | 262.67 | -43.16 | 67.36 | 0.7075 | -533.0 | -490.4 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 17.60 | 262.29 | -43.55 | 67.94 | 0.7109 | -118.0 | -193.8 | |
| 28.43 | 96.38 | 20.06 | 67.97 | 15.94 | 261.57 | -44.27 | 70.44 | 0.7145 | -905.5 | -405.9 | |
| 2.00 | -5.00 | 1.42 | -5.00 | 16.49 | 261.24 | -44.60 | 69.77 | 0.7198 | -349.1 | 999999 | |
| 10.26 | 13.53 | 7.23 | 9.53 | 14.97 | 261.53 | -44.31 | 71.79 | 0.7127 | -836.0 | -479.8 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 11.90 | 262.14 | -43.70 | 75.94 | 0.6991 | -348.0 | -376.5 | |
| 0.27 | -5.00 | 0.19 | -5.00 | 16.36 | 260.96 | -44.88 | 70.04 | 0.7226 | -495.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.14 | 12.42 | 261.73 | -44.11 | 75.30 | 0.7050 | -635.0 | -509.2 | |
| 0.00 | 1.82 | 0.00 | 1.30 | 15.85 | 260.84 | -45.00 | 70.76 | 0.7228 | -378.0 | -276.9 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 11.95 | 261.74 | -44.10 | 75.95 | 0.7041 | -580.0 | -458.6 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 11.77 | 261.78 | -44.06 | 76.21 | 0.7033 | -676.0 | -549.3 | |
| 0.00 | 2.00 | 0.00 | 1.45 | 16.56 | 260.27 | -45.57 | 69.96 | 0.7309 | -350.0 | -212.1 | |
| 5.72 | 8.18 | 3.98 | 5.69 | 10.21 | 261.51 | -44.33 | 78.45 | 0.7042 | -712.3 | -335.6 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 12.94 | 260.69 | -45.15 | 74.78 | 0.7183 | -679.0 | -567.6 | |
| 0.00 | 0.55 | 0.00 | 0.40 | 16.35 | 259.78 | -46.06 | 70.36 | 0.7359 | 375.0 | 374.8 | |
| 0.00 | 1.36 | 0.00 | 0.98 | 14.42 | 260.28 | -45.56 | 72.84 | 0.7259 | -661.0 | -542.5 | |
| 0.45 | 1.54 | 0.33 | 1.12 | 15.07 | 260.02 | -45.82 | 72.03 | 0.7303 | -623.6 | -494.5 | |
| 0.00 | 1.82 | 0.00 | 1.31 | 14.88 | 260.02 | -45.82 | 72.28 | 0.7299 | -603.0 | -534.3 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 10.51 | 261.02 | -44.82 | 78.12 | 0.7105 | -635.0 | -512.1 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 16.03 | 259.60 | -46.24 | 70.84 | 0.7371 | -365.0 | -158.4 | |
| 0.00 | 0.55 | 0.00 | 0.39 | 14.38 | 260.07 | -45.77 | 72.94 | 0.7283 | -282.0 | -205.3 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 16.55 | 259.12 | -46.72 | 70.27 | 0.7436 | 659.0 | 524.4 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 12.60 | 259.83 | -46.01 | 75.42 | 0.7278 | -552.0 | -414.9 | |
| 0.00 | 3.63 | 0.00 | 2.66 | 14.79 | 259.13 | -46.71 | 72.61 | 0.7397 | 528.0 | 471.2 | |
| 0.00 | 2.73 | 0.00 | 2.01 | 15.34 | 258.88 | -46.96 | 71.92 | 0.7437 | 754.0 | 631.2 | |
| 0.00 | 1.27 | 0.00 | 0.94 | 15.12 | 258.81 | -47.03 | 72.24 | 0.7440 | 500.0 | 584.6 | |
| 0.00 | 2.36 | 0.00 | 1.73 | 14.31 | 258.99 | -46.85 | 73.27 | 0.7405 | 717.0 | 563.3 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 10.12 | 259.85 | -45.99 | 78.81 | 0.7240 | -280.0 | -305.0 | |
| 0.73 | 3.45 | 0.54 | 2.59 | 16.36 | 258.24 | -47.60 | 70.74 | 0.7528 | 657.1 | 552.4 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 15.73 | 258.20 | -47.64 | 71.57 | 0.7519 | 799.0 | 652.9 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 14.58 | 258.50 | -47.34 | 73.03 | 0.7464 | 641.0 | 564.7 | |
| 3.63 | 7.90 | 2.74 | 5.97 | 16.37 | 257.86 | -47.98 | 70.80 | 0.7570 | 776.7 | 563.4 | |
| 0.00 | 2.73 | 0.00 | 2.08 | 16.20 | 257.34 | -48.50 | 71.15 | 0.7622 | 595.0 | 456.7 | |
| 13.53 | 27.07 | 10.15 | 20.30 | 13.30 | 257.72 | -48.12 | 74.87 | 0.7529 | -768.3 | -320.0 | |
| 2.63 | 7.09 | 2.01 | 5.41 | 15.47 | 257.09 | -48.75 | 72.15 | 0.7635 | 792.4 | 649.4 | |
| 0.64 | 1.73 | 0.49 | 1.33 | 15.67 | 256.78 | -49.06 | 71.95 | 0.7672 | 530.7 | 390.9 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 13.82 | 257.34 | -48.50 | 74.25 | 0.7579 | 182.0 | 160.0 | |
| 0.00 | 0.64 | 0.00 | 0.49 | 15.02 | 256.85 | -48.99 | 72.79 | 0.7653 | 619.0 | 513.6 | |
| 0.73 | 2.45 | 0.56 | 1.89 | 14.85 | 256.65 | -49.18 | 73.03 | 0.7671 | 769.0 | 604.3 | |
| 0.00 | 1.09 | 0.00 | 0.86 | 12.61 | 255.20 | -50.64 | 76.16 | 0.7793 | -561.0 | -478.6 | |
| 0.00 | 0.45 | 0.00 | 0.36 | 12.42 | 254.90 | -50.94 | 76.45 | 0.7822 | -100.0 | -94.0 | |
| 0.00 | 0.91 | 0.00 | 0.73 | 11.76 | 253.97 | -51.86 | 77.40 | 0.7913 | 552.0 | 464.2 | |
| 0.00 | 1.64 | 0.00 | 1.41 | 14.11 | 251.25 | -54.58 | 74.83 | 0.8211 | 652.0 | 564.6 | |
| 0.00 | 1.00 | 0.00 | 0.88 | 10.61 | 250.15 | -55.68 | 79.18 | 0.8286 | 419.0 | 396.4 | |
| 0.00 | 2.36 | 0.00 | 2.09 | 10.30 | 249.96 | -55.88 | 79.58 | 0.8303 | 490.0 | 381.2 | |
| 0.00 | 0.82 | 0.00 | 0.73 | 10.40 | 249.60 | -56.24 | 79.47 | 0.8338 | 165.0 | 146.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
