SDO HMI 2014-07-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.70 | 126.63 | 45.59 | 165.76 | -8.13 | 238.92 | -66.92 | 100.05 | 0.9259 | 191.3 | -127.0 | |
|
previous
or next observation for the same group /

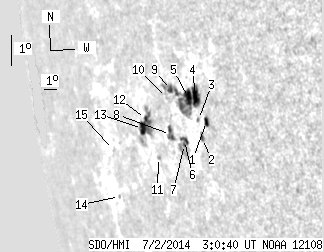

back to the solar disc SDO HMI 2014-07-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.00 | 4.81 | 3.54 | 5.68 | -8.13 | 241.45 | -64.39 | 100.38 | 0.9093 | 482.1 | 395.0 | |
| 1.18 | 3.72 | 1.42 | 4.48 | -8.68 | 240.98 | -64.86 | 100.91 | 0.9131 | 521.5 | 438.0 | |
| 0.00 | 1.82 | 0.00 | 2.19 | -8.10 | 240.87 | -64.96 | 100.26 | 0.9133 | 404.0 | 415.5 | |
| 9.27 | 56.68 | 11.13 | 70.35 | -7.39 | 240.87 | -64.97 | 99.49 | 0.9128 | 745.5 | -15.7 | |
| 8.63 | -4.00 | 10.59 | -4.00 | -7.44 | 240.33 | -65.51 | 99.48 | 0.9165 | 346.6 | 999999 | |
| 2.54 | 16.90 | 3.23 | 21.59 | -8.81 | 239.58 | -66.26 | 100.87 | 0.9227 | 303.9 | 1.0 | |
| 0.82 | -6.00 | 1.04 | -6.00 | -8.94 | 239.53 | -66.31 | 101.00 | 0.9231 | 211.8 | 999999 | |
| 0.00 | 8.27 | 0.00 | 10.97 | -8.68 | 238.52 | -67.32 | 100.58 | 0.9295 | -658.0 | -488.6 | |
| 2.54 | -4.00 | 3.29 | -4.00 | -7.26 | 239.00 | -66.84 | 99.12 | 0.9253 | 246.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.32 | -7.52 | 238.60 | -67.24 | 99.36 | 0.9281 | -509.0 | -435.6 | |
| 0.00 | 1.54 | 0.00 | 2.18 | -9.45 | 237.20 | -68.63 | 101.25 | 0.9381 | -511.0 | -431.4 | |
| 1.27 | 30.07 | 1.84 | 43.75 | -8.27 | 236.56 | -69.28 | 99.92 | 0.9411 | -548.0 | -293.1 | |
| 6.45 | -12.00 | 9.51 | -12.00 | -8.60 | 236.16 | -69.68 | 100.23 | 0.9436 | -360.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 2.13 | -10.90 | 232.70 | -73.14 | 102.22 | 0.9628 | -394.0 | -369.8 | |
| 0.00 | 0.64 | 0.00 | 1.12 | -9.42 | 232.94 | -72.90 | 100.72 | 0.9609 | -456.0 | -450.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
