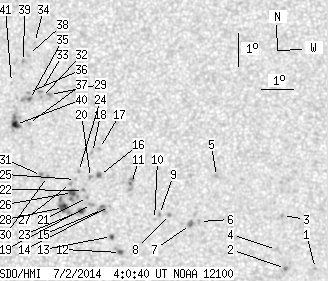

SDO HMI 2014-07-02 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.37 | 111.30 | 8.17 | 55.70 | 10.47 | 306.88 | 1.59 | 347.29 | 0.1392 | 318.5 | 319.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.65 | 313.78 | 8.49 | 299.22 | 0.1685 | -775.0 | -681.3 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 7.66 | 312.85 | 7.56 | 302.13 | 0.1547 | -1186.0 | -966.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 9.28 | 312.79 | 7.50 | 310.51 | 0.1702 | -1011.0 | -755.5 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 8.24 | 312.58 | 7.29 | 306.21 | 0.1564 | -811.0 | -668.2 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 10.49 | 310.76 | 5.47 | 324.37 | 0.1617 | -876.0 | -634.0 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 9.11 | 310.21 | 4.92 | 321.62 | 0.1371 | -946.0 | -690.9 | |
| 0.64 | 3.18 | 0.32 | 1.59 | 9.02 | 309.93 | 4.64 | 322.82 | 0.1328 | -1232.7 | -948.0 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.33 | 309.29 | 4.00 | 328.15 | 0.1309 | -1035.0 | -855.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.33 | 308.98 | 3.69 | 330.18 | 0.1282 | -950.0 | -835.1 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 9.18 | 308.82 | 3.53 | 330.64 | 0.1245 | -792.0 | -550.2 | |
| 0.00 | 6.09 | 0.00 | 3.04 | 10.29 | 308.12 | 2.83 | 339.10 | 0.1368 | -1024.0 | -788.5 | |
| 1.00 | 4.27 | 0.50 | 2.13 | 8.18 | 307.76 | 2.47 | 334.75 | 0.1005 | -1132.3 | -823.5 | |
| 0.91 | 1.82 | 0.45 | 0.91 | 8.67 | 307.49 | 2.20 | 339.06 | 0.1065 | 740.5 | 606.3 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.59 | 307.43 | 2.14 | 342.23 | 0.1213 | 585.0 | 439.9 | |
| 0.00 | 5.63 | 0.00 | 2.81 | 9.49 | 307.22 | 1.93 | 343.71 | 0.1187 | 915.0 | 846.8 | |
| 0.82 | 3.18 | 0.41 | 1.59 | 10.54 | 307.13 | 1.84 | 346.50 | 0.1358 | 946.3 | 699.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.37 | 307.14 | 1.85 | 347.78 | 0.1499 | -886.0 | -656.8 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 11.25 | 306.92 | 1.63 | 349.03 | 0.1471 | -678.0 | -536.6 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 9.65 | 306.88 | 1.59 | 346.77 | 0.1198 | 1144.0 | 929.2 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 10.48 | 306.85 | 1.56 | 348.40 | 0.1337 | 1137.0 | 928.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.86 | 306.75 | 1.46 | 348.14 | 0.1230 | 842.0 | 632.2 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.08 | 306.63 | 1.34 | 349.43 | 0.1262 | 843.0 | 743.6 | |
| 1.91 | 5.09 | 0.95 | 2.54 | 9.47 | 306.57 | 1.28 | 348.99 | 0.1155 | 1049.5 | 427.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 10.66 | 306.48 | 1.19 | 351.32 | 0.1358 | 861.0 | 615.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.42 | 306.38 | 1.09 | 351.73 | 0.1313 | 896.0 | 597.4 | |
| 2.63 | 7.36 | 1.32 | 3.67 | 10.02 | 306.29 | 1.00 | 352.01 | 0.1242 | 1202.3 | 902.7 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 10.29 | 306.23 | 0.94 | 352.77 | 0.1288 | 1038.0 | 740.3 | |
| 4.09 | 13.90 | 2.04 | 6.93 | 9.56 | 306.01 | 0.72 | 353.82 | 0.1157 | 1142.9 | 835.7 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 13.04 | 305.59 | 0.30 | 358.35 | 0.1755 | 808.0 | 655.3 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 10.51 | 305.52 | 0.23 | 358.29 | 0.1316 | 1070.0 | 909.6 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 10.54 | 305.33 | 0.04 | 359.69 | 0.1321 | 1126.0 | 896.5 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.95 | 305.33 | 0.05 | 359.75 | 0.1738 | 958.0 | 848.3 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.13 | 305.30 | 0.01 | 359.93 | 0.1770 | 826.0 | 636.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.65 | 305.12 | -0.17 | 0.83 | 0.2032 | 776.0 | 602.4 | |
| 0.55 | 5.09 | 0.27 | 2.56 | 12.89 | 304.96 | -0.33 | 1.87 | 0.1728 | 1134.5 | 880.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.10 | 304.93 | -0.36 | 2.00 | 0.1766 | 939.0 | 810.2 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 12.14 | 304.93 | -0.36 | 2.22 | 0.1600 | 477.0 | 447.6 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 14.28 | 304.93 | -0.36 | 1.79 | 0.1969 | 773.0 | 740.1 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 14.06 | 304.77 | -0.52 | 2.62 | 0.1932 | 923.0 | 814.6 | |
| 3.82 | 9.54 | 1.91 | 4.79 | 12.11 | 304.52 | -0.77 | 4.71 | 0.1599 | 1184.7 | 881.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 13.41 | 304.40 | -0.89 | 4.79 | 0.1825 | 717.0 | 516.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
