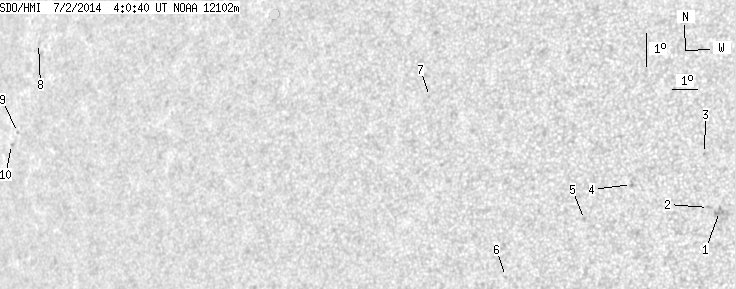

SDO HMI 2014-07-02 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.09 | 0.00 | 11.17 | 5.58 | 270.23 | -35.06 | 84.59 | 0.5636 | -214.9 | -346.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.36 | 0.00 | 3.52 | 4.67 | 278.89 | -26.40 | 85.52 | 0.4463 | -713.0 | -760.3 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 4.78 | 278.51 | -26.78 | 85.30 | 0.4523 | -647.0 | -527.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 6.42 | 278.29 | -27.00 | 81.72 | 0.4577 | -782.0 | -628.8 | |
| 0.00 | 2.09 | 0.00 | 1.19 | 5.42 | 275.81 | -29.48 | 84.27 | 0.4944 | -826.0 | -692.9 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 4.31 | 274.19 | -31.10 | 86.60 | 0.5180 | -632.0 | -443.2 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 2.50 | 271.39 | -33.90 | 89.97 | 0.5593 | -639.0 | -427.3 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 7.90 | 268.18 | -37.11 | 80.86 | 0.6075 | 633.0 | 536.4 | |
| 0.00 | 1.64 | 0.00 | 1.40 | 8.90 | 250.57 | -54.72 | 81.21 | 0.8183 | 428.0 | 264.7 | |
| 0.00 | 1.00 | 0.00 | 0.87 | 6.14 | 249.95 | -55.34 | 84.60 | 0.8236 | 498.0 | 394.3 | |
| 0.00 | 0.45 | 0.00 | 0.40 | 5.76 | 249.68 | -55.61 | 85.06 | 0.8262 | 531.0 | 456.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
