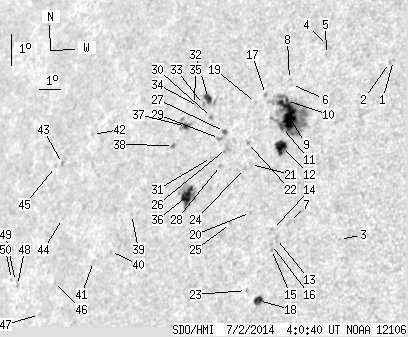

SDO HMI 2014-07-02 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.60 | 228.77 | 47.49 | 164.12 | 14.95 | 259.94 | -45.35 | 72.00 | 0.7244 | -335.0 | -179.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.78 | 17.83 | 265.58 | -39.71 | 66.25 | 0.6667 | -719.0 | -556.1 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 17.76 | 265.43 | -39.86 | 66.41 | 0.6683 | -708.0 | -598.4 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 12.20 | 264.62 | -40.67 | 74.86 | 0.6622 | -595.0 | -482.7 | |
| 0.00 | 3.91 | 0.00 | 2.71 | 18.21 | 262.65 | -42.64 | 66.80 | 0.7023 | -338.0 | -262.3 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 17.93 | 262.70 | -42.59 | 67.18 | 0.7009 | -594.0 | -556.9 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 16.94 | 261.45 | -43.84 | 68.95 | 0.7123 | -470.0 | -372.0 | |
| 0.00 | 2.63 | 0.00 | 1.80 | 12.65 | 262.43 | -42.86 | 74.71 | 0.6904 | -64.0 | -131.0 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 17.09 | 261.31 | -43.98 | 68.78 | 0.7143 | -453.0 | -347.3 | |
| 26.53 | 101.29 | 18.55 | 70.78 | 15.96 | 261.59 | -43.70 | 70.25 | 0.7080 | -925.2 | -428.7 | |
| 0.73 | -9.00 | 0.51 | -9.00 | 16.43 | 261.37 | -43.92 | 69.67 | 0.7118 | -419.6 | 999999 | |
| 1.82 | -9.00 | 1.27 | -9.00 | 15.58 | 261.43 | -43.86 | 70.83 | 0.7089 | -567.2 | 999999 | |
| 10.81 | 14.54 | 7.54 | 10.14 | 14.96 | 261.55 | -43.74 | 71.66 | 0.7060 | -831.7 | -507.6 | |
| 0.00 | 2.54 | 0.00 | 1.75 | 12.14 | 261.97 | -43.32 | 75.54 | 0.6949 | -508.0 | -495.4 | |
| 0.00 | 1.73 | 0.00 | 1.19 | 12.41 | 261.75 | -43.54 | 75.20 | 0.6982 | -617.0 | -486.3 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 11.79 | 261.83 | -43.46 | 76.06 | 0.6961 | -698.0 | -615.2 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 11.95 | 261.80 | -43.49 | 75.85 | 0.6967 | -567.0 | -490.4 | |
| 0.00 | 1.82 | 0.00 | 1.30 | 16.58 | 260.39 | -44.90 | 69.74 | 0.7234 | -540.0 | -361.1 | |
| 4.91 | 6.54 | 3.38 | 4.51 | 10.21 | 261.56 | -43.73 | 78.37 | 0.6968 | -694.1 | -429.6 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 16.32 | 260.01 | -45.28 | 70.20 | 0.7270 | 323.0 | 267.3 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 12.90 | 260.68 | -44.61 | 74.73 | 0.7119 | -654.0 | -573.1 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 14.38 | 260.32 | -44.97 | 72.76 | 0.7190 | -586.0 | -463.3 | |
| 0.00 | 1.36 | 0.00 | 0.98 | 15.06 | 260.01 | -45.28 | 71.91 | 0.7241 | -664.0 | -521.7 | |
| 0.00 | 1.45 | 0.00 | 1.01 | 10.50 | 260.99 | -44.30 | 78.05 | 0.7042 | -568.0 | -437.9 | |
| 0.00 | 1.91 | 0.00 | 1.36 | 14.25 | 260.09 | -45.20 | 73.00 | 0.7215 | -241.0 | -260.9 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 12.53 | 259.87 | -45.42 | 75.41 | 0.7207 | -509.0 | -448.7 | |
| 0.00 | 5.27 | 0.00 | 3.83 | 14.84 | 259.12 | -46.17 | 72.42 | 0.7338 | 472.0 | 423.5 | |
| 1.18 | 2.63 | 0.86 | 1.93 | 15.37 | 258.88 | -46.41 | 71.77 | 0.7376 | 705.8 | 602.4 | |
| 0.00 | 1.64 | 0.00 | 1.19 | 14.31 | 258.99 | -46.30 | 73.17 | 0.7342 | 611.0 | 604.1 | |
| 0.00 | 1.64 | 0.00 | 1.20 | 15.14 | 258.71 | -46.58 | 72.11 | 0.7390 | 812.0 | 747.9 | |
| 0.00 | 1.27 | 0.00 | 0.94 | 15.78 | 258.15 | -47.14 | 71.39 | 0.7466 | 598.0 | 594.4 | |
| 0.00 | 0.73 | 0.00 | 0.53 | 14.54 | 258.51 | -46.78 | 72.96 | 0.7401 | 747.0 | 643.1 | |
| 4.63 | 8.99 | 3.47 | 6.72 | 16.37 | 257.83 | -47.46 | 70.70 | 0.7514 | 712.0 | 606.0 | |
| 0.00 | 1.64 | 0.00 | 1.23 | 16.17 | 257.65 | -47.64 | 70.99 | 0.7528 | 689.0 | 600.2 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 16.10 | 257.44 | -47.85 | 71.14 | 0.7550 | 334.0 | 437.3 | |
| 0.00 | 0.55 | 0.00 | 0.41 | 16.16 | 257.23 | -48.06 | 71.11 | 0.7574 | 543.0 | 513.5 | |
| 12.72 | 27.98 | 9.44 | 20.77 | 13.32 | 257.72 | -47.57 | 74.74 | 0.7467 | -799.0 | -324.2 | |
| 2.63 | 9.45 | 1.99 | 7.16 | 15.46 | 257.07 | -48.22 | 72.06 | 0.7578 | 783.0 | 531.1 | |
| 0.64 | 2.00 | 0.48 | 1.52 | 14.85 | 256.63 | -48.66 | 72.95 | 0.7613 | 706.0 | 551.7 | |
| 0.00 | 0.64 | 0.00 | 0.49 | 12.64 | 255.23 | -50.06 | 76.05 | 0.7732 | -499.0 | -481.1 | |
| 0.00 | 1.09 | 0.00 | 0.86 | 11.46 | 254.50 | -50.79 | 77.65 | 0.7796 | 550.0 | 446.4 | |
| 0.00 | 1.45 | 0.00 | 1.16 | 11.12 | 253.73 | -51.56 | 78.17 | 0.7874 | 545.0 | 402.1 | |
| 0.00 | 1.27 | 0.00 | 1.06 | 15.03 | 252.51 | -52.78 | 73.45 | 0.8045 | 109.0 | 145.0 | |
| 0.00 | 1.09 | 0.00 | 0.93 | 14.07 | 251.25 | -54.03 | 74.81 | 0.8157 | 644.0 | 574.4 | |
| 0.00 | 0.82 | 0.00 | 0.68 | 12.38 | 251.80 | -53.49 | 76.82 | 0.8085 | 332.0 | 283.1 | |
| 0.00 | 1.45 | 0.00 | 1.25 | 13.97 | 250.91 | -54.38 | 74.98 | 0.8189 | 426.0 | 361.4 | |
| 0.00 | 0.55 | 0.00 | 0.45 | 10.40 | 251.86 | -53.43 | 79.26 | 0.8062 | 383.0 | 303.8 | |
| 0.00 | 0.73 | 0.00 | 0.61 | 9.39 | 251.37 | -53.92 | 80.55 | 0.8106 | 450.0 | 427.1 | |
| 0.00 | 1.27 | 0.00 | 1.11 | 10.23 | 249.98 | -55.31 | 79.62 | 0.8248 | 511.0 | 431.9 | |
| 0.00 | 0.36 | 0.00 | 0.32 | 10.35 | 249.84 | -55.45 | 79.49 | 0.8262 | 234.0 | 304.0 | |
| 0.00 | 0.64 | 0.00 | 0.56 | 10.40 | 249.60 | -55.69 | 79.44 | 0.8285 | 208.0 | 186.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
