SDO HMI 2014-07-02 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.65 | 704.69 | 87.81 | 554.73 | -19.85 | 258.45 | -46.29 | 118.81 | 0.7778 | 508.6 | 119.2 | |
|
previous
or next observation for the same group /

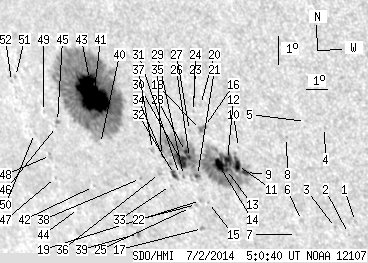

back to the solar disc SDO HMI 2014-07-02 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.55 | 0.00 | 0.38 | -22.84 | 267.19 | -37.55 | 127.15 | 0.7071 | 244.0 | 283.3 | |
| 0.00 | 0.55 | 0.00 | 0.38 | -23.26 | 266.75 | -37.99 | 127.38 | 0.7140 | 257.0 | 282.0 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -23.07 | 266.27 | -38.48 | 126.84 | 0.7176 | 579.0 | 499.8 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -19.71 | 266.85 | -37.89 | 123.01 | 0.6917 | 539.0 | 480.8 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -19.54 | 266.12 | -38.63 | 122.33 | 0.6985 | 658.0 | 592.8 | |
| 0.00 | 1.73 | 0.00 | 1.25 | -22.88 | 264.88 | -39.87 | 125.75 | 0.7300 | 496.0 | 384.3 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -23.37 | 264.48 | -40.26 | 126.10 | 0.7365 | 287.0 | 275.0 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -20.10 | 265.15 | -39.59 | 122.48 | 0.7117 | 496.0 | 456.8 | |
| 3.09 | 239.12 | 2.27 | 180.26 | -21.33 | 262.98 | -41.76 | 122.78 | 0.7402 | 833.7 | -121.7 | |
| 0.00 | 0.55 | 0.00 | 0.40 | -20.50 | 262.96 | -41.78 | 121.75 | 0.7362 | 532.0 | 513.2 | |
| 5.00 | -9.00 | 3.68 | -9.00 | -21.11 | 262.71 | -42.04 | 122.36 | 0.7418 | 918.7 | 999999 | |
| 3.91 | -9.00 | 2.89 | -9.00 | -20.93 | 262.33 | -42.41 | 121.93 | 0.7446 | 859.2 | 999999 | |
| 0.27 | -9.00 | 0.20 | -9.00 | -21.26 | 262.16 | -42.58 | 122.26 | 0.7479 | 595.0 | 999999 | |
| 8.54 | -9.00 | 6.37 | -9.00 | -21.14 | 261.90 | -42.85 | 121.97 | 0.7499 | 731.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -22.41 | 260.91 | -43.83 | 122.99 | 0.7655 | -363.0 | -388.7 | |
| 0.45 | 5.18 | 0.34 | 3.85 | -19.86 | 261.68 | -43.06 | 120.28 | 0.7460 | 349.0 | -89.8 | |
| 0.00 | 2.36 | 0.00 | 1.85 | -23.32 | 260.26 | -44.48 | 123.72 | 0.7758 | -635.0 | -516.2 | |
| 0.73 | -16.00 | 0.54 | -16.00 | -19.96 | 261.46 | -43.28 | 120.31 | 0.7486 | -346.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -22.36 | 260.57 | -44.18 | 122.75 | 0.7685 | -412.0 | -441.1 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -19.13 | 261.74 | -43.00 | 119.42 | 0.7420 | 123.0 | 257.8 | |
| 1.45 | -9.00 | 1.11 | -9.00 | -21.52 | 260.76 | -43.98 | 121.84 | 0.7627 | -660.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.13 | -22.50 | 260.32 | -44.42 | 122.80 | 0.7715 | -240.0 | -357.6 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -19.11 | 261.44 | -43.30 | 119.24 | 0.7450 | 547.0 | 404.9 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -19.37 | 261.35 | -43.39 | 119.53 | 0.7471 | 302.0 | 316.4 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -22.62 | 260.00 | -44.75 | 122.77 | 0.7750 | -494.0 | -419.3 | |
| 1.36 | -9.00 | 1.04 | -9.00 | -20.92 | 260.62 | -44.12 | 121.06 | 0.7613 | -1008.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -20.02 | 260.95 | -43.79 | 120.12 | 0.7540 | -639.0 | -591.5 | |
| 1.54 | -9.00 | 1.18 | -9.00 | -20.73 | 260.51 | -44.23 | 120.77 | 0.7615 | -897.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.12 | -21.54 | 260.11 | -44.63 | 121.55 | 0.7691 | -739.0 | -613.1 | |
| 11.17 | -9.00 | 8.58 | -9.00 | -21.04 | 260.21 | -44.53 | 120.99 | 0.7658 | -862.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -21.51 | 259.93 | -44.81 | 121.43 | 0.7706 | -469.0 | -491.9 | |
| 2.82 | -9.00 | 2.19 | -9.00 | -21.52 | 259.70 | -45.04 | 121.32 | 0.7729 | -451.5 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -21.90 | 259.36 | -45.39 | 121.61 | 0.7778 | -228.0 | -178.8 | |
| 0.00 | 1.54 | 0.00 | 1.20 | -21.13 | 259.43 | -45.31 | 120.73 | 0.7737 | -288.0 | -300.7 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -20.90 | 259.34 | -45.41 | 120.42 | 0.7736 | -131.0 | -162.6 | |
| 0.00 | 2.09 | 0.00 | 1.65 | -21.52 | 259.00 | -45.75 | 120.98 | 0.7795 | 251.0 | 214.9 | |
| 0.00 | 2.18 | 0.00 | 1.71 | -20.72 | 258.99 | -45.75 | 120.03 | 0.7762 | 61.0 | 91.3 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -21.72 | 258.01 | -46.74 | 120.77 | 0.7896 | 513.0 | 453.9 | |
| 0.00 | 2.91 | 0.00 | 2.42 | -23.61 | 257.05 | -47.70 | 122.53 | 0.8059 | -297.0 | -351.6 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -20.62 | 256.53 | -48.21 | 118.83 | 0.7988 | 113.0 | 166.4 | |
| 60.87 | 417.74 | 49.03 | 336.97 | -19.09 | 256.81 | -47.93 | 117.14 | 0.7905 | 1078.0 | 272.6 | |
| 0.00 | 0.64 | 0.00 | 0.54 | -22.09 | 255.52 | -49.22 | 120.12 | 0.8134 | -529.0 | -430.4 | |
| 9.90 | -41.00 | 7.93 | -41.00 | -18.50 | 256.85 | -47.90 | 116.45 | 0.7881 | 1247.9 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -22.87 | 254.36 | -50.38 | 120.55 | 0.8262 | -252.0 | -260.0 | |
| 0.55 | 1.64 | 0.46 | 1.39 | -19.96 | 254.67 | -50.07 | 117.33 | 0.8135 | 533.0 | 460.4 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -20.13 | 254.54 | -50.20 | 117.48 | 0.8152 | 175.0 | 274.0 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -21.86 | 253.67 | -51.07 | 119.13 | 0.8286 | -378.0 | -356.1 | |
| 0.00 | 2.73 | 0.00 | 2.38 | -21.13 | 253.77 | -50.97 | 118.33 | 0.8253 | 219.0 | 195.5 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -19.66 | 254.09 | -50.65 | 116.75 | 0.8177 | 203.0 | 132.9 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -20.42 | 253.27 | -51.47 | 117.33 | 0.8274 | -508.0 | -410.5 | |
| 0.00 | 1.27 | 0.00 | 1.10 | -18.55 | 253.12 | -51.62 | 115.12 | 0.8230 | -478.0 | -501.1 | |
| 0.00 | 0.55 | 0.00 | 0.48 | -18.73 | 252.84 | -51.91 | 115.23 | 0.8260 | -222.0 | -284.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
