SDO HMI 2014-07-02 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.99 | 0.00 | 10.78 | 5.66 | 271.45 | -32.75 | 84.06 | 0.5321 | -228.0 | -391.8 | |
|
previous
or next observation for the same group /

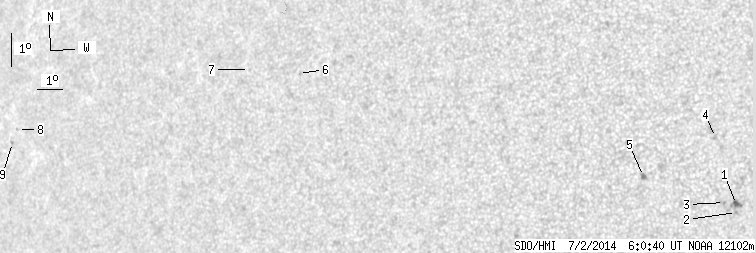

back to the solar disc SDO HMI 2014-07-02 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.18 | 0.00 | 3.38 | 4.67 | 279.05 | -25.14 | 85.38 | 0.4266 | -1063.0 | -823.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 4.43 | 279.06 | -25.13 | 85.95 | 0.4263 | -841.0 | -747.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 4.73 | 278.64 | -25.55 | 85.31 | 0.4331 | -662.0 | -571.2 | |
| 0.00 | 2.36 | 0.00 | 1.30 | 6.70 | 278.24 | -25.95 | 80.87 | 0.4420 | -259.0 | -323.8 | |
| 0.00 | 3.36 | 0.00 | 1.89 | 5.46 | 275.83 | -28.37 | 84.06 | 0.4774 | -915.0 | -748.6 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 8.23 | 262.61 | -41.58 | 80.98 | 0.6674 | 610.0 | 552.5 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 8.28 | 260.55 | -43.65 | 81.14 | 0.6936 | 484.0 | 401.9 | |
| 0.00 | 0.91 | 0.00 | 0.77 | 6.04 | 249.94 | -54.26 | 84.71 | 0.8127 | 344.0 | 347.9 | |
| 0.00 | 1.18 | 0.00 | 1.00 | 5.63 | 249.73 | -54.46 | 85.22 | 0.8148 | 250.0 | 295.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
