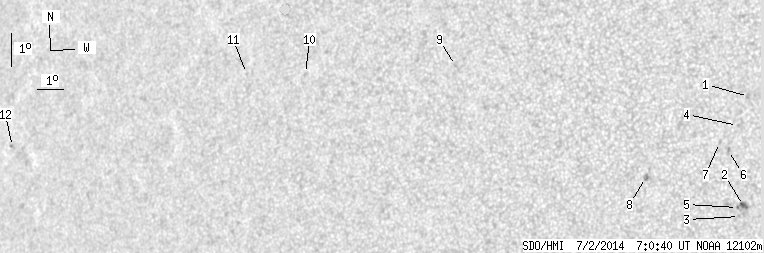

SDO HMI 2014-07-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.62 | 0.00 | 12.70 | 6.28 | 272.50 | -31.15 | 82.59 | 0.5122 | -364.0 | -357.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.39 | 8.02 | 279.11 | -24.53 | 77.36 | 0.4231 | -442.0 | -421.7 | |
| 0.00 | 4.18 | 0.00 | 2.28 | 4.69 | 279.11 | -24.54 | 85.28 | 0.4170 | -1081.0 | -906.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 4.35 | 278.99 | -24.66 | 86.10 | 0.4187 | -640.0 | -541.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 7.13 | 278.79 | -24.85 | 79.57 | 0.4258 | -671.0 | -439.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 4.62 | 278.91 | -24.74 | 85.46 | 0.4201 | -829.0 | -724.9 | |
| 0.00 | 2.54 | 0.00 | 1.39 | 6.36 | 278.53 | -25.12 | 81.44 | 0.4284 | -823.0 | -503.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 6.59 | 278.21 | -25.43 | 80.98 | 0.4338 | -660.0 | -471.2 | |
| 0.00 | 3.18 | 0.00 | 1.78 | 5.47 | 275.73 | -27.92 | 83.98 | 0.4706 | -695.0 | -699.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 8.71 | 268.62 | -35.02 | 79.13 | 0.5798 | 676.0 | 538.1 | |
| 0.00 | 1.64 | 0.00 | 1.07 | 8.29 | 262.79 | -40.85 | 80.80 | 0.6580 | 300.0 | 282.1 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 8.21 | 260.35 | -43.30 | 81.22 | 0.6891 | 328.0 | 338.7 | |
| 0.00 | 1.54 | 0.00 | 1.30 | 5.57 | 249.77 | -53.88 | 85.30 | 0.8089 | 169.0 | 230.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
