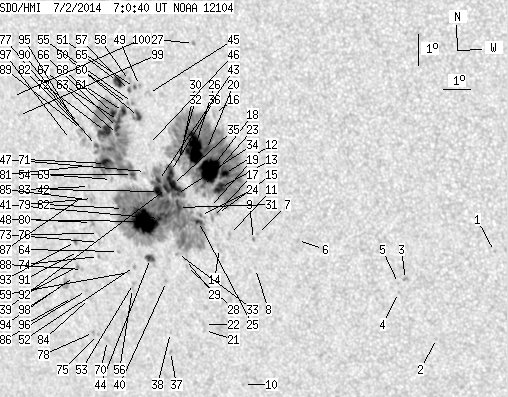

SDO HMI 2014-07-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 237.55 | 1254.14 | 149.42 | 791.14 | -10.84 | 267.91 | -35.74 | 111.81 | 0.6202 | 366.8 | 178.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.41 | -12.85 | 279.60 | -24.05 | 124.06 | 0.4815 | 733.0 | 600.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -15.67 | 277.24 | -26.41 | 126.33 | 0.5337 | 437.0 | 437.8 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -13.81 | 276.39 | -27.26 | 122.51 | 0.5295 | 847.0 | 678.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -14.23 | 276.09 | -27.56 | 122.92 | 0.5364 | 715.0 | 577.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -13.94 | 276.13 | -27.52 | 122.49 | 0.5338 | 652.0 | 533.3 | |
| 0.00 | 1.64 | 0.00 | 0.98 | -12.66 | 272.67 | -30.98 | 117.61 | 0.5689 | 752.0 | 607.5 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -12.48 | 271.22 | -32.43 | 116.32 | 0.5863 | 684.0 | 586.5 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -13.60 | 270.98 | -32.67 | 117.88 | 0.5958 | 501.0 | 333.9 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -12.68 | 271.04 | -32.60 | 116.50 | 0.5896 | 819.0 | 718.3 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -17.35 | 269.83 | -33.82 | 122.57 | 0.6326 | 527.0 | 432.3 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -12.54 | 270.17 | -33.48 | 115.73 | 0.5999 | 873.0 | 775.9 | |
| 4.18 | 428.32 | 2.56 | 263.51 | -10.62 | 270.24 | -33.40 | 112.76 | 0.5890 | 1373.5 | 488.7 | |
| 9.90 | -12.00 | 6.09 | -12.00 | -11.07 | 270.04 | -33.61 | 113.34 | 0.5939 | 1006.7 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.15 | -13.00 | 269.72 | -33.93 | 116.14 | 0.6080 | 371.0 | 432.4 | |
| 0.00 | 2.54 | 0.00 | 1.57 | -11.89 | 269.81 | -33.84 | 114.50 | 0.6010 | 792.0 | 626.8 | |
| 0.00 | 3.45 | 0.00 | 2.10 | -8.75 | 270.09 | -33.56 | 109.65 | 0.5823 | 14.0 | 90.4 | |
| 0.00 | 3.00 | 0.00 | 1.86 | -12.02 | 269.60 | -34.04 | 114.58 | 0.6043 | 808.0 | 609.6 | |
| 35.62 | -12.00 | 21.92 | -12.00 | -10.54 | 269.69 | -33.95 | 112.32 | 0.5957 | 1255.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -11.71 | 269.54 | -34.11 | 114.05 | 0.6035 | 552.0 | 515.2 | |
| 3.73 | -12.00 | 2.29 | -12.00 | -9.89 | 269.66 | -33.98 | 111.26 | 0.5930 | 1116.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -15.65 | 268.68 | -34.97 | 119.37 | 0.6356 | 625.0 | 516.4 | |
| 0.00 | 1.91 | 0.00 | 1.22 | -15.45 | 268.71 | -34.93 | 119.12 | 0.6340 | 499.0 | 442.4 | |
| 0.27 | -12.00 | 0.17 | -12.00 | -11.05 | 269.36 | -34.28 | 112.93 | 0.6025 | 542.7 | 999999 | |
| 0.55 | 3.36 | 0.34 | 2.10 | -11.97 | 269.16 | -34.49 | 114.24 | 0.6097 | 870.7 | 687.0 | |
| 3.45 | 453.85 | 2.16 | 288.78 | -12.16 | 269.05 | -34.59 | 114.47 | 0.6120 | 842.7 | -188.9 | |
| 35.07 | -12.00 | 21.65 | -12.00 | -9.87 | 269.22 | -34.43 | 110.99 | 0.5988 | 1225.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -6.60 | 269.51 | -34.14 | 105.80 | 0.5815 | 807.0 | 684.0 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -13.61 | 268.36 | -35.29 | 116.22 | 0.6281 | -666.0 | -559.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -13.39 | 268.36 | -35.29 | 115.89 | 0.6269 | -528.0 | -432.0 | |
| 1.64 | -12.00 | 1.02 | -12.00 | -9.98 | 268.71 | -34.94 | 110.89 | 0.6059 | 665.8 | 999999 | |
| 6.00 | -25.00 | 3.77 | -25.00 | -11.74 | 268.35 | -35.29 | 113.43 | 0.6187 | 28.3 | 999999 | |
| 1.09 | -12.00 | 0.68 | -12.00 | -10.23 | 268.57 | -35.08 | 111.21 | 0.6089 | 414.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -13.21 | 268.08 | -35.56 | 115.46 | 0.6294 | -743.0 | -586.1 | |
| 3.82 | -25.00 | 2.40 | -25.00 | -11.34 | 268.34 | -35.31 | 112.80 | 0.6169 | 630.4 | 999999 | |
| 15.81 | -25.00 | 9.93 | -25.00 | -11.03 | 268.23 | -35.42 | 112.26 | 0.6169 | 863.0 | 999999 | |
| 5.82 | -25.00 | 3.65 | -25.00 | -10.62 | 268.21 | -35.44 | 111.62 | 0.6152 | 841.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -16.37 | 267.19 | -36.45 | 119.44 | 0.6569 | 749.0 | 593.5 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -15.75 | 267.33 | -36.32 | 118.67 | 0.6520 | 657.0 | 549.2 | |
| 5.09 | -25.00 | 3.21 | -25.00 | -11.16 | 267.98 | -35.67 | 112.33 | 0.6206 | -247.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -14.11 | 267.49 | -36.15 | 116.44 | 0.6412 | -798.0 | -674.7 | |
| 1.73 | -25.00 | 1.10 | -25.00 | -12.12 | 267.57 | -36.08 | 113.55 | 0.6303 | -1267.8 | 999999 | |
| 7.81 | -25.00 | 4.95 | -25.00 | -11.26 | 267.66 | -35.99 | 112.32 | 0.6252 | 431.4 | 999999 | |
| 1.91 | -25.00 | 1.21 | -25.00 | -10.92 | 267.71 | -35.94 | 111.82 | 0.6230 | -401.5 | 999999 | |
| 4.45 | 7.90 | 2.88 | 5.10 | -13.40 | 267.00 | -36.65 | 115.12 | 0.6436 | -904.5 | -631.2 | |
| 0.00 | 3.27 | 0.00 | 2.05 | -8.20 | 267.66 | -35.98 | 107.59 | 0.6123 | 698.0 | 638.0 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -9.80 | 267.48 | -36.17 | 109.99 | 0.6211 | 575.0 | 494.5 | |
| 0.00 | 4.09 | 0.00 | 2.60 | -10.65 | 267.25 | -36.40 | 111.17 | 0.6277 | -37.0 | -9.9 | |
| 38.07 | -25.00 | 24.44 | -25.00 | -12.23 | 266.97 | -36.68 | 113.39 | 0.6383 | -1192.6 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -7.96 | 267.35 | -36.30 | 107.08 | 0.6156 | 884.0 | 618.6 | |
| 3.82 | 232.06 | 2.41 | 149.00 | -8.93 | 267.20 | -36.45 | 108.52 | 0.6212 | 988.7 | 431.0 | |
| 0.64 | 2.36 | 0.40 | 1.49 | -8.03 | 267.15 | -36.50 | 107.10 | 0.6185 | 875.6 | 724.6 | |
| 0.00 | 1.64 | 0.00 | 1.07 | -13.67 | 266.32 | -37.33 | 115.14 | 0.6531 | -735.0 | -598.2 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -14.22 | 266.17 | -37.47 | 115.84 | 0.6575 | -790.0 | -727.6 | |
| 1.82 | -50.00 | 1.16 | -50.00 | -10.76 | 266.73 | -36.92 | 111.08 | 0.6347 | -505.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.20 | -8.50 | 267.02 | -36.63 | 107.77 | 0.6219 | 803.0 | 693.2 | |
| 0.00 | 1.91 | 0.00 | 1.25 | -14.38 | 266.10 | -37.54 | 116.03 | 0.6592 | -616.0 | -513.9 | |
| 0.91 | 2.09 | 0.57 | 1.32 | -8.13 | 266.94 | -36.70 | 107.17 | 0.6215 | 793.1 | 670.9 | |
| 0.00 | 2.09 | 0.00 | 1.32 | -7.82 | 266.98 | -36.67 | 106.69 | 0.6199 | 859.0 | 716.7 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -13.87 | 266.04 | -37.60 | 115.27 | 0.6574 | -690.0 | -569.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -8.54 | 266.82 | -36.83 | 107.75 | 0.6246 | 643.0 | 485.4 | |
| 3.00 | -50.00 | 1.90 | -50.00 | -8.79 | 266.64 | -37.01 | 108.06 | 0.6279 | 920.3 | 999999 | |
| 0.73 | -25.00 | 0.47 | -25.00 | -11.84 | 266.21 | -37.44 | 112.43 | 0.6460 | -316.9 | 999999 | |
| 2.91 | -50.00 | 1.85 | -50.00 | -9.08 | 266.41 | -37.24 | 108.40 | 0.6320 | 937.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -13.22 | 265.77 | -37.88 | 114.19 | 0.6575 | -669.0 | -545.1 | |
| 6.54 | 13.54 | 4.15 | 8.57 | -7.86 | 266.51 | -37.14 | 106.57 | 0.6262 | 753.6 | 582.5 | |
| 3.09 | -50.00 | 1.97 | -50.00 | -9.30 | 266.34 | -37.31 | 108.70 | 0.6337 | 1086.3 | 999999 | |
| 1.36 | -50.00 | 0.87 | -50.00 | -9.52 | 266.31 | -37.33 | 109.02 | 0.6349 | 1050.3 | 999999 | |
| 2.73 | -50.00 | 1.74 | -50.00 | -8.87 | 266.24 | -37.41 | 108.00 | 0.6334 | 846.2 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.24 | -10.94 | 265.88 | -37.77 | 110.94 | 0.6462 | -174.0 | -76.0 | |
| 0.00 | 3.54 | 0.00 | 2.40 | -16.09 | 264.72 | -38.93 | 117.62 | 0.6836 | -665.0 | -510.3 | |
| 9.36 | -50.00 | 6.06 | -50.00 | -10.45 | 265.71 | -37.93 | 110.13 | 0.6462 | 770.1 | 999999 | |
| 11.72 | -50.00 | 7.54 | -50.00 | -9.44 | 265.85 | -37.79 | 108.70 | 0.6405 | 793.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -12.95 | 265.06 | -38.59 | 113.45 | 0.6649 | -423.0 | -441.0 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -13.40 | 264.93 | -38.71 | 114.02 | 0.6684 | -616.0 | -500.5 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -15.91 | 264.40 | -39.25 | 117.20 | 0.6864 | -718.0 | -706.4 | |
| 0.00 | 2.18 | 0.00 | 1.44 | -12.67 | 265.07 | -38.58 | 113.05 | 0.6634 | -719.0 | -616.1 | |
| 1.18 | -50.00 | 0.77 | -50.00 | -9.89 | 265.44 | -38.21 | 109.19 | 0.6474 | 790.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -15.85 | 264.20 | -39.44 | 117.02 | 0.6883 | -666.0 | -576.1 | |
| 0.00 | 3.36 | 0.00 | 2.21 | -11.57 | 265.02 | -38.62 | 111.45 | 0.6593 | -429.0 | -390.0 | |
| 0.00 | 3.09 | 0.00 | 2.04 | -12.33 | 264.85 | -38.79 | 112.46 | 0.6646 | -598.0 | -574.3 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -10.53 | 265.15 | -38.50 | 110.00 | 0.6535 | 385.0 | 280.1 | |
| 0.00 | 1.82 | 0.00 | 1.18 | -9.62 | 265.20 | -38.45 | 108.68 | 0.6494 | 688.0 | 514.0 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -11.19 | 264.97 | -38.68 | 110.88 | 0.6585 | 521.0 | 428.2 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -14.76 | 264.29 | -39.36 | 115.58 | 0.6822 | -710.0 | -616.0 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -11.61 | 264.78 | -38.87 | 111.39 | 0.6625 | -499.0 | -451.8 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -14.51 | 264.22 | -39.43 | 115.20 | 0.6818 | -718.0 | -569.5 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -11.48 | 264.72 | -38.93 | 111.19 | 0.6627 | -408.0 | -332.7 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -13.84 | 264.20 | -39.45 | 114.26 | 0.6790 | -748.0 | -626.4 | |
| 0.73 | 4.00 | 0.47 | 2.61 | -9.41 | 264.91 | -38.74 | 108.25 | 0.6523 | 712.9 | 496.8 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -9.22 | 264.82 | -38.83 | 107.94 | 0.6528 | 653.0 | 554.4 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -13.27 | 264.15 | -39.50 | 113.45 | 0.6771 | -761.0 | -663.1 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -13.75 | 264.01 | -39.63 | 114.05 | 0.6808 | -731.0 | -679.0 | |
| 1.00 | 2.45 | 0.67 | 1.65 | -12.95 | 264.09 | -39.56 | 112.98 | 0.6764 | -643.6 | -484.3 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -14.07 | 263.82 | -39.83 | 114.40 | 0.6844 | -586.0 | -502.9 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -9.07 | 264.64 | -39.01 | 107.64 | 0.6545 | 421.0 | 297.2 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -14.75 | 263.59 | -40.06 | 115.21 | 0.6901 | -532.0 | -457.2 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -9.74 | 264.43 | -39.22 | 108.53 | 0.6595 | 525.0 | 422.6 | |
| 0.00 | 5.63 | 0.00 | 3.85 | -14.31 | 263.40 | -40.25 | 114.52 | 0.6904 | -873.0 | -642.8 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -9.06 | 262.41 | -41.23 | 106.76 | 0.6821 | -423.0 | -436.4 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -8.47 | 262.25 | -41.40 | 105.87 | 0.6823 | -504.0 | -469.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
