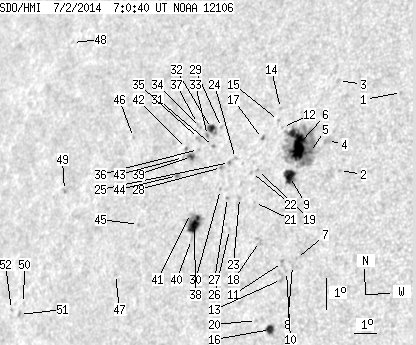

SDO HMI 2014-07-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.23 | 228.45 | 48.63 | 159.08 | 15.01 | 260.06 | -43.59 | 71.49 | 0.7040 | -369.3 | -172.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.77 | 17.73 | 265.53 | -38.12 | 65.74 | 0.6472 | -676.0 | -595.2 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 15.22 | 263.58 | -40.06 | 70.21 | 0.6623 | -696.0 | -623.8 | |
| 0.00 | 1.73 | 0.00 | 1.16 | 18.03 | 262.83 | -40.82 | 66.41 | 0.6806 | -392.0 | -395.2 | |
| 0.00 | 5.18 | 0.00 | 3.46 | 16.14 | 262.86 | -40.78 | 69.11 | 0.6739 | -43.0 | 26.9 | |
| 0.73 | 106.67 | 0.49 | 72.48 | 15.74 | 262.20 | -41.45 | 69.90 | 0.6807 | -954.0 | -399.9 | |
| 32.98 | -5.00 | 22.44 | -5.00 | 15.94 | 261.64 | -42.01 | 69.79 | 0.6880 | -971.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 12.44 | 262.38 | -41.26 | 74.66 | 0.6701 | -632.0 | -479.7 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 12.22 | 262.26 | -41.39 | 75.02 | 0.6712 | -584.0 | -604.1 | |
| 10.54 | 15.99 | 7.16 | 10.86 | 14.96 | 261.54 | -42.11 | 71.21 | 0.6865 | -872.1 | -498.3 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 12.02 | 262.04 | -41.60 | 75.35 | 0.6735 | -573.0 | -613.8 | |
| 0.00 | 2.54 | 0.00 | 1.71 | 12.30 | 261.82 | -41.82 | 75.00 | 0.6768 | -307.0 | -456.2 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 16.48 | 260.85 | -42.80 | 69.28 | 0.6988 | -127.0 | -164.7 | |
| 0.00 | 2.09 | 0.00 | 1.40 | 11.77 | 261.88 | -41.76 | 75.76 | 0.6750 | -711.0 | -601.7 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 17.07 | 260.60 | -43.05 | 68.54 | 0.7035 | -100.0 | -137.6 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 16.69 | 260.62 | -43.03 | 69.05 | 0.7022 | -294.0 | -241.4 | |
| 4.82 | 6.72 | 3.22 | 4.50 | 10.22 | 261.69 | -41.96 | 78.08 | 0.6747 | -678.1 | -393.6 | |
| 0.45 | 1.73 | 0.32 | 1.20 | 16.11 | 260.08 | -43.57 | 70.03 | 0.7068 | -146.0 | -197.0 | |
| 0.00 | 4.36 | 0.00 | 2.98 | 12.91 | 260.72 | -42.92 | 74.37 | 0.6916 | -635.0 | -525.9 | |
| 0.00 | 1.54 | 0.00 | 1.07 | 15.10 | 260.12 | -43.52 | 71.41 | 0.7037 | -452.0 | -473.6 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 10.48 | 261.06 | -42.59 | 77.82 | 0.6830 | -449.0 | -429.5 | |
| 0.00 | 0.73 | 0.00 | 0.50 | 14.11 | 260.24 | -43.41 | 72.78 | 0.7000 | -282.0 | -336.8 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 15.03 | 259.88 | -43.77 | 71.58 | 0.7064 | -358.0 | -354.6 | |
| 0.00 | 1.73 | 0.00 | 1.21 | 14.24 | 259.55 | -44.10 | 72.77 | 0.7085 | 584.0 | 478.5 | |
| 0.00 | 1.64 | 0.00 | 1.16 | 15.44 | 259.06 | -44.58 | 71.23 | 0.7169 | 281.0 | 274.6 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 15.31 | 258.83 | -44.82 | 71.47 | 0.7193 | 568.0 | 643.4 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 13.24 | 259.35 | -44.30 | 74.21 | 0.7088 | -534.0 | -439.4 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 14.22 | 259.03 | -44.62 | 72.92 | 0.7146 | 654.0 | 604.0 | |
| 0.00 | 1.82 | 0.00 | 1.30 | 15.14 | 258.52 | -45.13 | 71.78 | 0.7225 | 787.0 | 693.0 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 16.39 | 258.16 | -45.48 | 70.18 | 0.7294 | 279.0 | 368.5 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 14.46 | 258.65 | -44.99 | 72.68 | 0.7194 | 276.0 | 400.4 | |
| 0.00 | 1.54 | 0.00 | 1.12 | 15.78 | 257.98 | -45.67 | 71.04 | 0.7301 | 505.0 | 476.0 | |
| 3.73 | 7.90 | 2.71 | 5.74 | 16.34 | 257.72 | -45.93 | 70.36 | 0.7343 | 713.0 | 581.9 | |
| 0.00 | 1.64 | 0.00 | 1.19 | 16.12 | 257.60 | -46.04 | 70.69 | 0.7351 | 453.0 | 502.8 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 16.35 | 257.21 | -46.44 | 70.48 | 0.7400 | 480.0 | 448.0 | |
| 0.00 | 2.27 | 0.00 | 1.67 | 16.01 | 257.22 | -46.42 | 70.93 | 0.7391 | 627.0 | 606.6 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 15.66 | 257.32 | -46.32 | 71.36 | 0.7372 | 667.0 | 507.3 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 16.47 | 257.03 | -46.61 | 70.36 | 0.7422 | 451.0 | 441.5 | |
| 13.17 | 20.90 | 9.48 | 15.05 | 13.34 | 257.77 | -45.88 | 74.41 | 0.7275 | -823.4 | -316.6 | |
| 2.63 | 4.72 | 1.93 | 3.47 | 15.44 | 257.07 | -46.58 | 71.73 | 0.7396 | 768.7 | 650.2 | |
| 0.00 | 1.64 | 0.00 | 1.18 | 12.87 | 257.74 | -45.90 | 75.05 | 0.7269 | -186.0 | -262.1 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 13.67 | 257.50 | -46.14 | 74.01 | 0.7311 | 68.0 | 88.7 | |
| 0.45 | 1.36 | 0.34 | 1.01 | 15.68 | 256.77 | -46.88 | 71.48 | 0.7434 | 460.4 | 393.0 | |
| 0.00 | 1.00 | 0.00 | 0.74 | 15.39 | 256.71 | -46.94 | 71.87 | 0.7435 | 311.0 | 379.6 | |
| 0.73 | 1.82 | 0.54 | 1.34 | 14.82 | 256.60 | -47.05 | 72.65 | 0.7436 | 715.0 | 604.3 | |
| 0.00 | 0.91 | 0.00 | 0.69 | 13.24 | 255.20 | -48.45 | 75.02 | 0.7564 | -328.0 | -390.5 | |
| 0.00 | 0.91 | 0.00 | 0.71 | 15.93 | 254.16 | -49.49 | 71.73 | 0.7722 | -364.0 | -349.5 | |
| 0.00 | 1.73 | 0.00 | 1.31 | 11.66 | 254.50 | -49.15 | 77.20 | 0.7619 | 466.0 | 356.3 | |
| 0.00 | 1.00 | 0.00 | 0.86 | 18.77 | 249.87 | -53.77 | 69.07 | 0.8199 | 439.0 | 364.1 | |
| 0.00 | 1.82 | 0.00 | 1.49 | 14.15 | 251.27 | -52.38 | 74.49 | 0.7993 | 574.0 | 481.9 | |
| 0.00 | 1.09 | 0.00 | 0.91 | 10.59 | 250.16 | -53.48 | 79.04 | 0.8069 | 227.0 | 246.5 | |
| 0.00 | 2.00 | 0.00 | 1.67 | 10.25 | 250.04 | -53.61 | 79.48 | 0.8079 | 480.0 | 461.8 | |
| 0.00 | 1.36 | 0.00 | 1.15 | 10.39 | 249.58 | -54.06 | 79.35 | 0.8126 | 188.0 | 160.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
