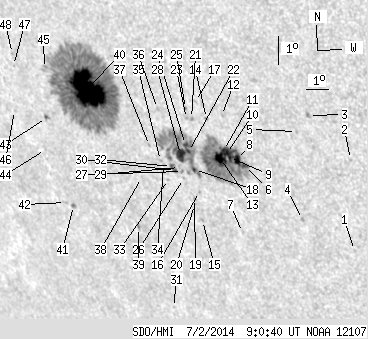

SDO HMI 2014-07-02 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.49 | 727.25 | 82.00 | 550.74 | -19.78 | 258.46 | -44.09 | 119.77 | 0.7561 | 493.8 | 114.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.69 | -24.03 | 266.64 | -35.91 | 129.74 | 0.6990 | 322.0 | 391.9 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -20.93 | 267.40 | -35.15 | 126.43 | 0.6706 | 532.0 | 440.0 | |
| 0.00 | 2.27 | 0.00 | 1.52 | -19.52 | 266.09 | -36.46 | 123.69 | 0.6754 | 687.0 | 606.4 | |
| 0.00 | 1.64 | 0.00 | 1.15 | -23.03 | 264.80 | -37.75 | 127.28 | 0.7104 | 587.0 | 479.6 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -20.07 | 265.46 | -37.09 | 123.99 | 0.6855 | 559.0 | 540.8 | |
| 2.54 | 242.69 | 1.81 | 176.34 | -21.28 | 262.92 | -39.63 | 123.95 | 0.7187 | 844.8 | -128.4 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -23.57 | 262.03 | -40.52 | 126.20 | 0.7402 | -333.0 | -393.0 | |
| 5.36 | -6.00 | 3.82 | -6.00 | -21.09 | 262.69 | -39.86 | 123.57 | 0.7200 | 991.2 | 999999 | |
| 1.09 | -6.00 | 0.78 | -6.00 | -21.03 | 262.36 | -40.19 | 123.31 | 0.7230 | 864.9 | 999999 | |
| 4.27 | -6.00 | 3.05 | -6.00 | -20.90 | 262.28 | -40.27 | 123.10 | 0.7232 | 861.8 | 999999 | |
| 2.00 | -6.00 | 1.43 | -6.00 | -20.81 | 262.18 | -40.37 | 122.92 | 0.7236 | 828.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -19.64 | 262.46 | -40.09 | 121.62 | 0.7145 | -553.0 | -399.5 | |
| 7.81 | -6.00 | 5.62 | -6.00 | -21.08 | 261.96 | -40.59 | 123.14 | 0.7273 | 804.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -19.76 | 261.78 | -40.77 | 121.39 | 0.7222 | 312.0 | 317.2 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -23.22 | 260.39 | -42.16 | 124.84 | 0.7538 | -525.0 | -411.6 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -22.23 | 260.64 | -41.92 | 123.80 | 0.7464 | -464.0 | -457.2 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -19.21 | 261.48 | -41.07 | 120.54 | 0.7226 | 544.0 | 453.5 | |
| 1.64 | -6.00 | 1.20 | -6.00 | -21.49 | 260.68 | -41.87 | 122.93 | 0.7422 | -729.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -22.48 | 260.32 | -42.23 | 123.92 | 0.7507 | -578.0 | -452.4 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -22.68 | 260.24 | -42.31 | 124.12 | 0.7525 | -518.0 | -436.8 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -19.78 | 261.13 | -41.42 | 121.07 | 0.7291 | -636.0 | -569.7 | |
| 2.09 | -6.00 | 1.53 | -6.00 | -20.90 | 260.63 | -41.92 | 122.17 | 0.7397 | -930.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -19.79 | 260.91 | -41.64 | 120.96 | 0.7313 | -725.0 | -635.1 | |
| 1.82 | -6.00 | 1.33 | -6.00 | -20.66 | 260.58 | -41.98 | 121.86 | 0.7391 | -922.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -19.46 | 260.97 | -41.58 | 120.58 | 0.7291 | 477.0 | 384.2 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -21.82 | 260.08 | -42.47 | 122.99 | 0.7497 | -570.0 | -414.3 | |
| 0.00 | 1.54 | 0.00 | 1.15 | -21.58 | 260.12 | -42.43 | 122.73 | 0.7481 | -786.0 | -638.9 | |
| 8.72 | -6.00 | 6.44 | -6.00 | -21.01 | 260.24 | -42.32 | 122.10 | 0.7442 | -858.0 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.29 | -21.45 | 260.03 | -42.52 | 122.53 | 0.7483 | -698.0 | -567.4 | |
| 1.00 | 5.45 | 0.75 | 4.08 | -21.56 | 259.81 | -42.74 | 122.54 | 0.7510 | -499.5 | -394.1 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -26.30 | 257.68 | -44.87 | 126.96 | 0.7937 | -389.0 | -326.4 | |
| 1.09 | -30.00 | 0.82 | -30.00 | -21.43 | 259.68 | -42.87 | 122.32 | 0.7516 | -420.3 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.41 | -21.87 | 259.38 | -43.17 | 122.70 | 0.7567 | -120.0 | -97.5 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -21.41 | 259.33 | -43.22 | 122.11 | 0.7550 | -277.0 | -214.1 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -21.24 | 259.26 | -43.30 | 121.87 | 0.7549 | 75.0 | 43.7 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -19.51 | 259.73 | -42.82 | 119.99 | 0.7420 | 429.0 | 303.2 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -20.76 | 258.94 | -43.61 | 121.12 | 0.7557 | 136.0 | 123.2 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -21.85 | 258.16 | -44.40 | 122.05 | 0.7683 | 242.0 | 322.6 | |
| 0.00 | 2.09 | 0.00 | 1.66 | -23.57 | 257.29 | -45.26 | 123.64 | 0.7842 | -368.0 | -290.7 | |
| 67.69 | 433.31 | 52.29 | 335.65 | -18.96 | 256.75 | -45.80 | 117.90 | 0.7695 | 1101.8 | 272.1 | |
| 0.55 | 2.27 | 0.46 | 1.90 | -22.94 | 254.42 | -48.13 | 121.58 | 0.8071 | -560.3 | -438.5 | |
| 0.00 | 2.09 | 0.00 | 1.76 | -22.85 | 254.07 | -48.49 | 121.32 | 0.8099 | -255.0 | -241.1 | |
| 0.82 | 2.73 | 0.67 | 2.22 | -20.01 | 254.39 | -48.16 | 118.15 | 0.7961 | 394.9 | 311.5 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -21.09 | 253.88 | -48.67 | 119.20 | 0.8048 | -198.0 | -231.8 | |
| 0.00 | 3.09 | 0.00 | 2.46 | -18.38 | 254.93 | -47.62 | 116.43 | 0.7850 | -258.0 | -250.9 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -19.84 | 252.88 | -49.67 | 117.34 | 0.8095 | -346.0 | -368.7 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -18.34 | 253.44 | -49.11 | 115.79 | 0.7992 | -488.0 | -464.5 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -17.95 | 253.54 | -49.01 | 115.36 | 0.7969 | -146.0 | -278.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
