SDO HMI 2014-07-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.50 | 208.22 | 30.38 | 115.91 | 12.99 | 276.75 | -25.26 | 66.59 | 0.4546 | -173.6 | -133.7 | |
|
previous
or next observation for the same group /

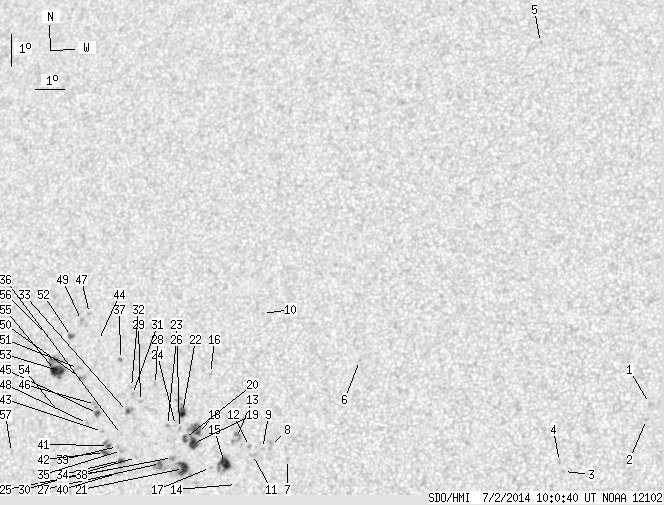

back to the solar disc SDO HMI 2014-07-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.75 | 292.78 | -9.22 | 39.75 | 0.2444 | -678.0 | -553.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.25 | 292.71 | -9.29 | 41.36 | 0.2390 | -888.0 | -687.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 11.63 | 290.14 | -11.87 | 53.15 | 0.2528 | -819.0 | -618.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 11.93 | 290.00 | -12.01 | 52.48 | 0.2577 | -895.0 | -681.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 25.21 | 288.36 | -13.64 | 29.37 | 0.4370 | -598.0 | -404.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 14.98 | 283.29 | -18.71 | 55.85 | 0.3760 | -796.0 | -621.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 11.88 | 281.16 | -20.85 | 65.66 | 0.3839 | -862.0 | -696.3 | |
| 0.00 | 4.36 | 0.00 | 2.35 | 12.30 | 280.55 | -21.45 | 65.21 | 0.3952 | -729.0 | -637.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 12.20 | 280.29 | -21.71 | 65.68 | 0.3985 | -791.0 | -624.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 16.40 | 279.87 | -22.14 | 56.94 | 0.4331 | 676.0 | 516.9 | |
| 0.00 | 2.63 | 0.00 | 1.42 | 12.01 | 279.97 | -22.03 | 66.41 | 0.4020 | -633.0 | -691.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 12.26 | 279.85 | -22.15 | 65.94 | 0.4052 | -907.0 | -750.1 | |
| 0.00 | 6.72 | 0.00 | 3.66 | 12.53 | 279.39 | -22.62 | 65.73 | 0.4135 | -531.0 | -826.5 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 11.08 | 279.51 | -22.49 | 68.98 | 0.4039 | -708.0 | -623.8 | |
| 8.90 | 16.90 | 4.84 | 9.19 | 11.72 | 279.05 | -22.95 | 67.84 | 0.4140 | -1075.8 | -662.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 14.49 | 278.30 | -23.70 | 62.41 | 0.4410 | -804.0 | -572.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 11.58 | 278.59 | -23.41 | 68.50 | 0.4201 | -669.0 | -537.5 | |
| 1.36 | 30.16 | 0.75 | 16.58 | 12.62 | 278.05 | -23.95 | 66.60 | 0.4335 | -1129.6 | -778.9 | |
| 6.72 | -18.00 | 3.69 | -18.00 | 12.31 | 277.94 | -24.06 | 67.36 | 0.4333 | -1075.0 | 999999 | |
| 2.00 | -18.00 | 1.10 | -18.00 | 12.46 | 277.62 | -24.38 | 67.28 | 0.4388 | -758.7 | 999999 | |
| 7.90 | 18.81 | 4.34 | 10.33 | 11.54 | 277.68 | -24.33 | 69.26 | 0.4334 | -978.9 | -577.3 | |
| 5.09 | 12.99 | 2.81 | 7.19 | 13.26 | 277.47 | -24.53 | 65.68 | 0.4453 | -952.4 | -647.0 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 12.77 | 277.42 | -24.58 | 66.77 | 0.4434 | -695.0 | -455.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 12.86 | 277.27 | -24.73 | 66.69 | 0.4459 | -585.0 | -470.2 | |
| 0.00 | 2.82 | 0.00 | 1.55 | 11.87 | 277.27 | -24.74 | 68.81 | 0.4410 | -802.0 | -651.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 12.85 | 277.00 | -25.01 | 66.91 | 0.4499 | -653.0 | -529.0 | |
| 1.18 | 9.63 | 0.65 | 5.32 | 11.67 | 276.87 | -25.13 | 69.50 | 0.4458 | -640.0 | -220.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 14.11 | 276.44 | -25.56 | 64.73 | 0.4647 | -608.0 | -510.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 13.57 | 275.98 | -26.02 | 66.15 | 0.4682 | -468.0 | -276.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 11.84 | 276.03 | -25.97 | 69.68 | 0.4590 | 742.0 | 612.3 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 13.78 | 275.67 | -26.33 | 65.95 | 0.4736 | -693.0 | -494.2 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 14.00 | 275.61 | -26.39 | 65.56 | 0.4757 | -499.0 | -409.1 | |
| 1.27 | 4.54 | 0.71 | 2.55 | 13.25 | 275.56 | -26.44 | 67.08 | 0.4725 | 891.2 | 539.8 | |
| 1.82 | 3.54 | 1.02 | 1.98 | 11.74 | 275.52 | -26.49 | 70.21 | 0.4660 | 977.3 | 771.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 12.05 | 275.49 | -26.52 | 69.59 | 0.4678 | 884.0 | 745.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 12.54 | 275.43 | -26.57 | 68.61 | 0.4708 | 789.0 | 581.5 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 14.86 | 275.11 | -26.89 | 64.24 | 0.4873 | -771.0 | -594.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 11.52 | 275.50 | -26.50 | 70.66 | 0.4652 | 951.0 | 770.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 12.17 | 275.33 | -26.67 | 69.44 | 0.4705 | 851.0 | 702.0 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 11.33 | 275.38 | -26.62 | 71.12 | 0.4662 | 870.0 | 688.3 | |
| 0.91 | 3.54 | 0.51 | 1.99 | 12.19 | 275.02 | -26.99 | 69.58 | 0.4752 | 984.6 | 702.7 | |
| 2.00 | 4.00 | 1.12 | 2.25 | 11.97 | 274.90 | -27.10 | 70.09 | 0.4759 | 806.9 | 587.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 12.62 | 274.76 | -27.25 | 68.88 | 0.4809 | 443.0 | 245.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 15.44 | 274.25 | -27.75 | 63.78 | 0.5023 | -583.0 | -402.5 | |
| 1.91 | 3.36 | 1.08 | 1.90 | 13.17 | 274.52 | -27.49 | 67.93 | 0.4869 | 1001.7 | 827.1 | |
| 0.00 | 3.00 | 0.00 | 1.70 | 13.45 | 274.41 | -27.59 | 67.46 | 0.4897 | 515.0 | 666.4 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 16.27 | 273.80 | -28.20 | 62.57 | 0.5131 | 880.0 | 677.8 | |
| 0.00 | 2.27 | 0.00 | 1.29 | 12.85 | 274.20 | -27.80 | 68.75 | 0.4899 | 308.0 | 293.8 | |
| 0.00 | 2.54 | 0.00 | 1.47 | 16.05 | 273.55 | -28.45 | 63.16 | 0.5152 | 891.0 | 681.5 | |
| 0.36 | 3.36 | 0.21 | 1.92 | 14.27 | 273.73 | -28.27 | 66.31 | 0.5032 | 913.0 | 722.5 | |
| 0.00 | 3.36 | 0.00 | 1.93 | 14.55 | 273.66 | -28.34 | 65.84 | 0.5056 | 785.0 | 687.6 | |
| 1.45 | 3.00 | 0.84 | 1.73 | 15.54 | 273.26 | -28.74 | 64.27 | 0.5162 | 929.0 | 713.5 | |
| 3.82 | 28.44 | 2.20 | 16.43 | 14.44 | 273.07 | -28.94 | 66.41 | 0.5133 | 1057.8 | 639.7 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 13.20 | 273.13 | -28.88 | 68.70 | 0.5066 | 540.0 | 435.8 | |
| 7.81 | -53.00 | 4.51 | -53.00 | 14.47 | 272.85 | -29.16 | 66.50 | 0.5165 | 941.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 15.58 | 272.35 | -29.65 | 64.80 | 0.5287 | 470.0 | 376.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 11.89 | 271.60 | -30.41 | 71.94 | 0.5230 | 124.0 | 145.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
