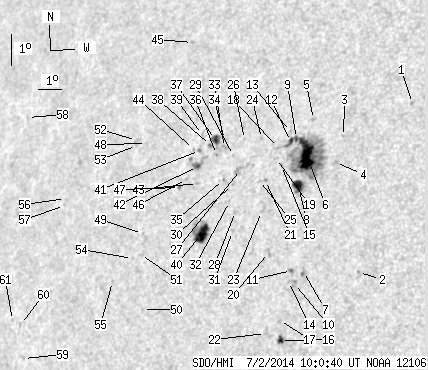

SDO HMI 2014-07-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.69 | 266.59 | 46.43 | 181.39 | 15.08 | 259.87 | -42.13 | 70.98 | 0.6869 | -300.6 | -134.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.04 | 17.70 | 265.59 | -36.42 | 65.03 | 0.6261 | -663.0 | -585.0 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 12.38 | 264.52 | -37.48 | 73.74 | 0.6214 | -642.0 | -553.6 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 16.58 | 263.06 | -38.94 | 67.80 | 0.6529 | 489.0 | 417.7 | |
| 0.00 | 3.18 | 0.00 | 2.07 | 15.76 | 262.93 | -39.07 | 69.07 | 0.6518 | -485.0 | -324.8 | |
| 0.00 | 1.73 | 0.00 | 1.15 | 17.07 | 261.70 | -40.31 | 67.60 | 0.6711 | -647.0 | -517.2 | |
| 31.44 | 122.02 | 20.87 | 80.94 | 15.97 | 261.68 | -40.32 | 69.20 | 0.6678 | -941.6 | -379.8 | |
| 0.00 | 2.63 | 0.00 | 1.71 | 12.34 | 262.32 | -39.68 | 74.41 | 0.6498 | -780.0 | -597.7 | |
| 8.45 | 12.45 | 5.60 | 8.25 | 14.99 | 261.58 | -40.43 | 70.67 | 0.6661 | -851.1 | -592.2 | |
| 1.36 | -6.00 | 0.91 | -6.00 | 16.46 | 261.14 | -40.86 | 68.69 | 0.6758 | -484.3 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.90 | 11.96 | 262.02 | -39.98 | 75.07 | 0.6528 | -709.0 | -650.8 | |
| 0.00 | 2.27 | 0.00 | 1.49 | 12.36 | 261.83 | -40.17 | 74.52 | 0.6561 | -710.0 | -547.0 | |
| 2.00 | -6.00 | 1.34 | -6.00 | 16.35 | 260.91 | -41.09 | 68.91 | 0.6782 | -202.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 16.67 | 260.83 | -41.17 | 68.49 | 0.6802 | -304.0 | -256.7 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 12.01 | 261.77 | -40.23 | 75.05 | 0.6562 | -465.0 | -424.8 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 15.59 | 260.72 | -41.28 | 70.07 | 0.6782 | -414.0 | -329.1 | |
| 2.82 | 4.72 | 1.84 | 3.08 | 10.19 | 261.74 | -40.26 | 77.82 | 0.6530 | -734.5 | -519.6 | |
| 0.00 | 2.09 | 0.00 | 1.37 | 10.80 | 261.61 | -40.40 | 76.92 | 0.6558 | -631.0 | -403.5 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 16.15 | 260.46 | -41.55 | 69.35 | 0.6831 | -258.0 | -70.7 | |
| 0.00 | 1.82 | 0.00 | 1.23 | 15.80 | 260.46 | -41.54 | 69.85 | 0.6820 | 345.0 | 297.4 | |
| 0.00 | 3.36 | 0.00 | 2.24 | 12.88 | 260.78 | -41.22 | 74.01 | 0.6706 | -711.0 | -569.5 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 15.10 | 260.16 | -41.84 | 70.94 | 0.6836 | -640.0 | -527.0 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 10.39 | 261.10 | -40.90 | 77.65 | 0.6616 | -607.0 | -514.7 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 14.14 | 260.22 | -41.78 | 72.32 | 0.6805 | -619.0 | -508.1 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 16.41 | 259.66 | -42.34 | 69.25 | 0.6933 | 691.0 | 563.1 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 15.10 | 259.91 | -42.09 | 71.03 | 0.6867 | -383.0 | -254.7 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 16.35 | 258.94 | -43.07 | 69.55 | 0.7016 | 355.0 | 455.3 | |
| 0.00 | 8.36 | 0.00 | 5.77 | 15.41 | 259.01 | -42.99 | 70.84 | 0.6982 | 416.0 | 470.0 | |
| 0.00 | 1.82 | 0.00 | 1.25 | 14.10 | 259.12 | -42.89 | 72.67 | 0.6937 | 517.0 | 409.5 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 15.84 | 258.60 | -43.41 | 70.37 | 0.7042 | 603.0 | 532.1 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 14.93 | 258.79 | -43.22 | 71.58 | 0.6997 | 736.0 | 606.4 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 13.48 | 259.13 | -42.87 | 73.55 | 0.6922 | -535.0 | -451.8 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 14.40 | 258.79 | -43.22 | 72.33 | 0.6984 | 322.0 | 405.4 | |
| 0.00 | 2.45 | 0.00 | 1.72 | 16.07 | 258.14 | -43.87 | 70.17 | 0.7102 | 710.0 | 631.1 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 16.32 | 258.07 | -43.94 | 69.85 | 0.7116 | 582.0 | 530.6 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 15.08 | 258.36 | -43.65 | 71.49 | 0.7051 | 739.0 | 632.3 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 15.84 | 257.85 | -44.16 | 70.57 | 0.7129 | 779.0 | 688.4 | |
| 4.72 | 9.18 | 3.34 | 6.49 | 16.31 | 257.67 | -44.33 | 69.98 | 0.7161 | 745.3 | 585.6 | |
| 0.45 | 1.82 | 0.32 | 1.29 | 16.11 | 257.50 | -44.50 | 70.29 | 0.7176 | 739.6 | 669.2 | |
| 0.00 | 1.82 | 0.00 | 1.30 | 16.44 | 257.05 | -44.95 | 69.97 | 0.7236 | 381.0 | 369.5 | |
| 15.72 | 28.71 | 10.98 | 20.09 | 13.37 | 257.81 | -44.19 | 74.01 | 0.7078 | -801.8 | -151.4 | |
| 0.00 | 1.73 | 0.00 | 1.23 | 15.94 | 257.06 | -44.94 | 70.65 | 0.7222 | 760.0 | 666.4 | |
| 1.73 | 11.08 | 1.23 | 7.90 | 15.44 | 257.11 | -44.89 | 71.32 | 0.7204 | 809.5 | 643.0 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 14.91 | 257.25 | -44.75 | 72.01 | 0.7176 | 308.0 | 266.9 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 15.96 | 256.78 | -45.22 | 70.69 | 0.7254 | 453.0 | 372.3 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 19.31 | 255.64 | -46.36 | 66.56 | 0.7467 | -427.0 | -388.3 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 15.02 | 256.73 | -45.27 | 71.99 | 0.7238 | 785.0 | 708.5 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 14.76 | 256.48 | -45.52 | 72.40 | 0.7261 | 717.0 | 662.7 | |
| 0.00 | 0.73 | 0.00 | 0.54 | 16.07 | 254.58 | -47.42 | 71.09 | 0.7502 | -333.0 | -333.0 | |
| 0.00 | 0.45 | 0.00 | 0.33 | 13.28 | 255.18 | -46.82 | 74.68 | 0.7381 | -550.0 | -408.0 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 10.94 | 255.71 | -46.29 | 77.76 | 0.7285 | 561.0 | 466.3 | |
| 0.00 | 2.36 | 0.00 | 1.72 | 12.63 | 255.25 | -46.75 | 75.55 | 0.7363 | -611.0 | -510.8 | |
| 0.00 | 2.00 | 0.00 | 1.51 | 16.15 | 254.08 | -47.92 | 71.11 | 0.7558 | -402.0 | -324.8 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 15.99 | 254.13 | -47.87 | 71.30 | 0.7549 | -590.0 | -479.1 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 12.49 | 254.92 | -47.09 | 75.79 | 0.7399 | -389.0 | -278.3 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 11.75 | 254.16 | -47.84 | 76.90 | 0.7474 | 519.0 | 389.8 | |
| 0.00 | 0.64 | 0.00 | 0.50 | 14.22 | 251.23 | -50.77 | 74.15 | 0.7828 | 539.0 | 437.1 | |
| 0.00 | 0.82 | 0.00 | 0.65 | 14.00 | 251.25 | -50.75 | 74.43 | 0.7823 | 539.0 | 478.4 | |
| 0.00 | 1.27 | 0.00 | 1.08 | 16.65 | 248.39 | -53.61 | 71.61 | 0.8149 | 380.0 | 316.7 | |
| 0.00 | 1.36 | 0.00 | 1.09 | 9.23 | 250.42 | -51.58 | 80.61 | 0.7861 | 519.0 | 401.4 | |
| 0.00 | 1.54 | 0.00 | 1.24 | 10.26 | 250.04 | -51.96 | 79.33 | 0.7908 | 389.0 | 348.3 | |
| 0.00 | 0.64 | 0.00 | 0.52 | 10.37 | 249.61 | -52.39 | 79.23 | 0.7954 | 306.0 | 228.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
