SDO HMI 2014-07-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.16 | 136.11 | 46.70 | 151.70 | -8.10 | 239.25 | -62.75 | 100.59 | 0.8966 | 174.0 | 17.4 | |
|
previous
or next observation for the same group /

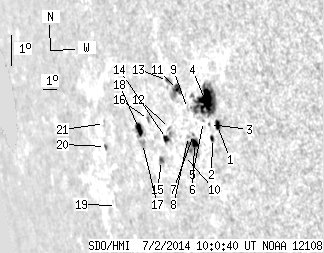

back to the solar disc SDO HMI 2014-07-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.18 | 5.09 | 3.28 | 5.25 | -8.21 | 241.54 | -60.47 | 101.06 | 0.8794 | 608.7 | 486.7 | |
| 1.45 | 2.45 | 1.53 | 2.57 | -8.64 | 241.11 | -60.90 | 101.47 | 0.8833 | 459.1 | 443.9 | |
| 0.00 | 1.09 | 0.00 | 1.14 | -8.21 | 241.03 | -60.97 | 100.97 | 0.8834 | 379.0 | 391.2 | |
| 18.08 | 53.51 | 18.95 | 56.18 | -7.47 | 240.96 | -61.04 | 100.13 | 0.8832 | 644.9 | 340.2 | |
| 0.00 | 0.55 | 0.00 | 0.58 | -8.13 | 240.66 | -61.34 | 100.83 | 0.8863 | 370.0 | 311.3 | |
| 3.54 | 16.63 | 3.87 | 18.25 | -8.85 | 239.87 | -62.13 | 101.51 | 0.8933 | 403.9 | -20.2 | |
| 0.00 | 0.91 | 0.00 | 0.99 | -8.57 | 239.88 | -62.12 | 101.20 | 0.8929 | 89.0 | 123.4 | |
| 0.00 | 2.27 | 0.00 | 2.51 | -8.65 | 239.53 | -62.48 | 101.23 | 0.8957 | -378.0 | -226.2 | |
| 0.00 | 2.00 | 0.00 | 2.18 | -7.77 | 239.71 | -62.30 | 100.29 | 0.8934 | -489.0 | -427.9 | |
| 0.00 | 2.36 | 0.00 | 2.66 | -9.26 | 239.06 | -62.94 | 101.84 | 0.8998 | 179.0 | 83.4 | |
| 4.45 | 11.54 | 4.95 | 12.89 | -7.21 | 239.18 | -62.82 | 99.59 | 0.8969 | 219.3 | -155.3 | |
| 0.00 | 1.27 | 0.00 | 1.47 | -8.46 | 238.28 | -63.73 | 100.84 | 0.9048 | -501.0 | -514.6 | |
| 0.82 | 3.82 | 0.93 | 4.32 | -6.96 | 238.55 | -63.45 | 99.23 | 0.9014 | -366.1 | -220.7 | |
| 2.73 | 7.09 | 3.19 | 8.25 | -8.79 | 237.96 | -64.04 | 101.16 | 0.9074 | -553.3 | -549.4 | |
| 1.18 | 4.18 | 1.42 | 5.01 | -9.50 | 237.36 | -64.65 | 101.85 | 0.9124 | -589.3 | -494.6 | |
| 0.00 | 2.09 | 0.00 | 2.54 | -8.25 | 236.83 | -65.18 | 100.41 | 0.9150 | -558.0 | -550.4 | |
| 0.00 | 5.09 | 0.00 | 6.38 | -9.03 | 236.11 | -65.89 | 101.16 | 0.9205 | -97.0 | -81.2 | |
| 6.00 | 9.99 | 7.54 | 12.56 | -8.60 | 236.03 | -65.97 | 100.69 | 0.9207 | -351.2 | -178.1 | |
| 0.00 | 0.27 | 0.00 | 0.39 | -11.11 | 233.08 | -68.92 | 102.98 | 0.9411 | -337.0 | -275.3 | |
| 0.73 | 2.18 | 1.04 | 3.13 | -9.28 | 232.99 | -69.01 | 101.02 | 0.9402 | -356.9 | -293.4 | |
| 0.00 | 1.73 | 0.00 | 2.45 | -8.55 | 233.21 | -68.79 | 100.28 | 0.9385 | -228.0 | -247.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
