SDO HMI 2014-07-02 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.32 | 207.49 | 31.77 | 114.97 | 12.98 | 276.72 | -24.74 | 66.22 | 0.4474 | -192.6 | -33.5 | |
|
previous
or next observation for the same group /

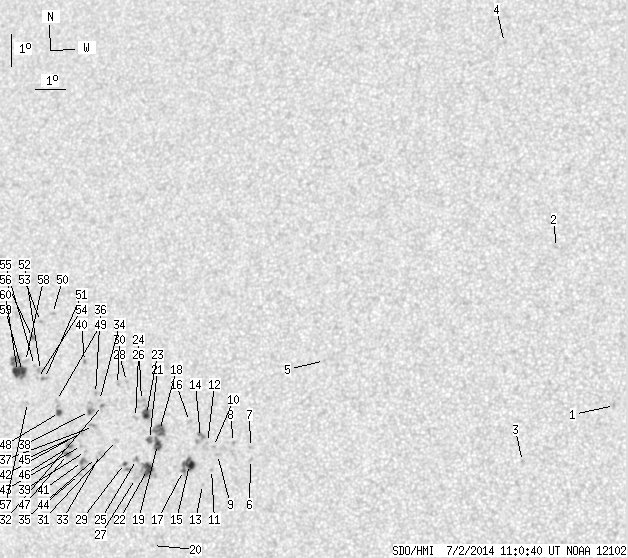

back to the solar disc SDO HMI 2014-07-02 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.69 | 292.81 | -8.64 | 38.13 | 0.2375 | -699.0 | -526.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.63 | 290.70 | -10.75 | 33.20 | 0.3242 | -775.0 | -531.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.94 | 289.96 | -11.50 | 51.29 | 0.2510 | -835.0 | -623.0 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 25.22 | 288.40 | -13.05 | 28.32 | 0.4326 | -707.0 | -492.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 14.99 | 283.34 | -18.11 | 55.01 | 0.3681 | -843.0 | -615.1 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 11.89 | 281.14 | -20.31 | 65.12 | 0.3761 | -939.0 | -696.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 12.26 | 281.11 | -20.34 | 64.24 | 0.3788 | -703.0 | -530.2 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 12.40 | 280.53 | -20.92 | 64.47 | 0.3881 | -832.0 | -665.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 12.02 | 280.03 | -21.43 | 65.84 | 0.3932 | -895.0 | -764.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 12.27 | 279.87 | -21.58 | 65.41 | 0.3969 | -954.0 | -726.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 11.56 | 279.87 | -21.59 | 67.10 | 0.3930 | -840.0 | -570.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 12.39 | 279.66 | -21.79 | 65.32 | 0.4007 | -830.0 | -655.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 11.09 | 279.60 | -21.85 | 68.45 | 0.3944 | -840.0 | -683.7 | |
| 0.00 | 7.90 | 0.00 | 4.28 | 12.54 | 279.41 | -22.04 | 65.20 | 0.4052 | -704.0 | -805.2 | |
| 8.54 | 15.81 | 4.62 | 8.56 | 11.70 | 279.11 | -22.34 | 67.40 | 0.4048 | -1085.5 | -683.7 | |
| 0.00 | 2.36 | 0.00 | 1.28 | 13.03 | 279.00 | -22.46 | 64.46 | 0.4142 | -710.0 | -558.1 | |
| 0.82 | -15.00 | 0.44 | -15.00 | 11.51 | 278.93 | -22.53 | 67.99 | 0.4066 | -779.0 | 999999 | |
| 6.27 | 20.53 | 3.43 | 11.23 | 12.73 | 278.01 | -23.45 | 65.97 | 0.4267 | -980.8 | -800.9 | |
| 5.81 | -18.00 | 3.18 | -18.00 | 12.30 | 277.98 | -23.48 | 66.95 | 0.4247 | -1069.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 9.19 | 278.06 | -23.39 | 74.07 | 0.4093 | -682.0 | -530.8 | |
| 2.00 | 3.72 | 1.10 | 2.04 | 12.44 | 277.69 | -23.76 | 66.85 | 0.4297 | -778.9 | -655.7 | |
| 7.81 | 17.90 | 4.27 | 9.78 | 11.52 | 277.71 | -23.74 | 68.89 | 0.4247 | -974.7 | -677.7 | |
| 5.09 | 9.54 | 2.80 | 5.25 | 13.21 | 277.51 | -23.94 | 65.32 | 0.4366 | -971.9 | -637.1 | |
| 0.00 | 2.63 | 0.00 | 1.45 | 13.64 | 277.30 | -24.16 | 64.58 | 0.4422 | -696.0 | -578.9 | |
| 0.00 | 3.00 | 0.00 | 1.65 | 11.82 | 277.31 | -24.15 | 68.51 | 0.4321 | -791.0 | -600.4 | |
| 0.00 | 2.45 | 0.00 | 1.35 | 13.11 | 277.15 | -24.31 | 65.82 | 0.4413 | -706.0 | -513.8 | |
| 0.00 | 2.45 | 0.00 | 1.34 | 11.23 | 277.33 | -24.13 | 69.80 | 0.4290 | -37.0 | -91.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 14.22 | 276.71 | -24.74 | 63.85 | 0.4538 | -713.0 | -485.4 | |
| 1.09 | 5.54 | 0.60 | 3.05 | 11.69 | 276.91 | -24.54 | 69.08 | 0.4373 | -530.8 | -536.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 14.12 | 276.41 | -25.04 | 64.30 | 0.4574 | -682.0 | -528.5 | |
| 0.00 | 2.18 | 0.00 | 1.21 | 12.39 | 276.57 | -24.89 | 67.80 | 0.4458 | 131.0 | 35.7 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 13.46 | 275.97 | -25.49 | 65.99 | 0.4600 | 870.0 | 688.2 | |
| 0.00 | 2.82 | 0.00 | 1.56 | 11.95 | 276.06 | -25.40 | 69.09 | 0.4510 | 480.0 | 435.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 13.62 | 275.84 | -25.61 | 65.77 | 0.4625 | -627.0 | -490.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 11.85 | 275.93 | -25.52 | 69.37 | 0.4524 | 880.0 | 656.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 13.83 | 275.68 | -25.77 | 65.46 | 0.4660 | -699.0 | -570.4 | |
| 0.00 | 3.82 | 0.00 | 2.13 | 12.81 | 275.73 | -25.73 | 67.51 | 0.4600 | 807.0 | 653.4 | |
| 1.27 | 7.54 | 0.71 | 4.22 | 13.27 | 275.54 | -25.92 | 66.70 | 0.4651 | 908.9 | 262.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 12.03 | 275.53 | -25.92 | 69.26 | 0.4591 | 882.0 | 687.5 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 14.81 | 275.17 | -26.28 | 63.89 | 0.4786 | -754.0 | -620.6 | |
| 1.18 | 6.90 | 0.66 | 3.84 | 11.72 | 275.46 | -26.00 | 69.95 | 0.4587 | 977.8 | 763.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 12.61 | 275.33 | -26.12 | 68.18 | 0.4647 | 945.0 | 825.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 12.21 | 275.37 | -26.08 | 68.98 | 0.4622 | 802.0 | 736.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 11.32 | 275.39 | -26.06 | 70.84 | 0.4579 | 881.0 | 713.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 12.48 | 275.10 | -26.35 | 68.59 | 0.4674 | 736.0 | 580.2 | |
| 1.09 | 4.54 | 0.61 | 2.54 | 12.17 | 274.96 | -26.49 | 69.32 | 0.4680 | 915.8 | 672.7 | |
| 1.64 | 4.00 | 0.92 | 2.24 | 11.92 | 274.92 | -26.54 | 69.86 | 0.4675 | 833.7 | 653.4 | |
| 2.36 | 5.45 | 1.33 | 3.08 | 13.21 | 274.49 | -26.96 | 67.51 | 0.4796 | 943.8 | 743.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 13.58 | 274.34 | -27.11 | 66.88 | 0.4836 | 773.0 | 525.9 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 16.29 | 273.83 | -27.63 | 62.12 | 0.5055 | 882.0 | 701.7 | |
| 0.00 | 2.82 | 0.00 | 1.60 | 14.26 | 273.83 | -27.62 | 65.92 | 0.4942 | 872.0 | 751.0 | |
| 0.00 | 4.36 | 0.00 | 2.49 | 14.50 | 273.66 | -27.80 | 65.57 | 0.4979 | 661.0 | 652.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 16.03 | 273.44 | -28.02 | 62.89 | 0.5092 | 765.0 | 719.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 14.25 | 273.58 | -27.87 | 66.10 | 0.4976 | 483.0 | 393.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 14.65 | 273.42 | -28.03 | 65.44 | 0.5019 | 717.0 | 567.2 | |
| 1.18 | 3.09 | 0.68 | 1.78 | 15.52 | 273.23 | -28.23 | 63.96 | 0.5092 | 891.8 | 682.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 13.50 | 273.33 | -28.13 | 67.70 | 0.4975 | 613.0 | 575.1 | |
| 0.00 | 2.18 | 0.00 | 1.25 | 14.77 | 273.08 | -28.37 | 65.45 | 0.5071 | 687.0 | 635.9 | |
| 4.54 | 24.80 | 2.61 | 14.26 | 14.45 | 273.02 | -28.43 | 66.07 | 0.5064 | 1064.8 | 666.6 | |
| 6.63 | -59.00 | 3.81 | -59.00 | 14.45 | 272.84 | -28.61 | 66.20 | 0.5089 | 929.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
