SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 18.80 | 0.73 | 11.00 | 6.00 | 270.56 | -30.35 | 83.15 | 0.4984 | 37.6 | -166.4 | |
|
previous
or next observation for the same group /

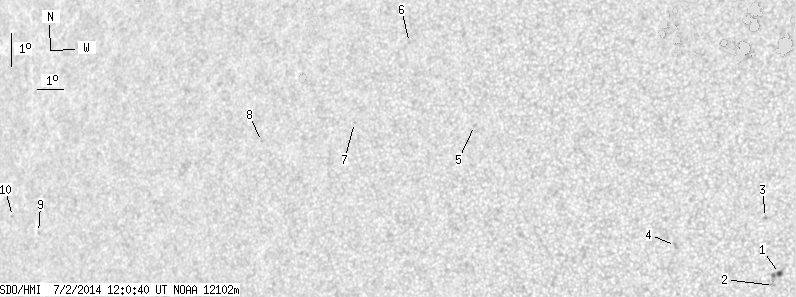

back to the solar disc SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 6.72 | 0.73 | 3.58 | 4.66 | 279.33 | -21.58 | 84.93 | 0.3695 | -1077.8 | -714.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 4.30 | 279.14 | -21.76 | 85.95 | 0.3722 | -759.0 | -519.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 6.36 | 278.80 | -22.10 | 80.54 | 0.3807 | -859.0 | -720.1 | |
| 0.00 | 2.91 | 0.00 | 1.59 | 5.45 | 275.83 | -25.07 | 83.58 | 0.4263 | -838.0 | -530.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 8.95 | 268.53 | -32.37 | 78.09 | 0.5426 | 718.0 | 543.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 11.43 | 265.81 | -35.09 | 74.55 | 0.5868 | 637.0 | 500.6 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 8.91 | 264.03 | -36.88 | 79.19 | 0.6058 | 708.0 | 611.6 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 8.22 | 260.43 | -40.48 | 80.88 | 0.6530 | 550.0 | 394.6 | |
| 0.00 | 1.27 | 0.00 | 0.98 | 5.09 | 251.03 | -49.88 | 85.88 | 0.7659 | 478.0 | 416.2 | |
| 0.00 | 1.18 | 0.00 | 0.93 | 5.53 | 249.72 | -51.18 | 85.32 | 0.7804 | 518.0 | 452.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
