SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 262.72 | 1328.76 | 160.09 | 810.60 | -10.90 | 267.96 | -32.95 | 113.52 | 0.5846 | 345.5 | 173.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

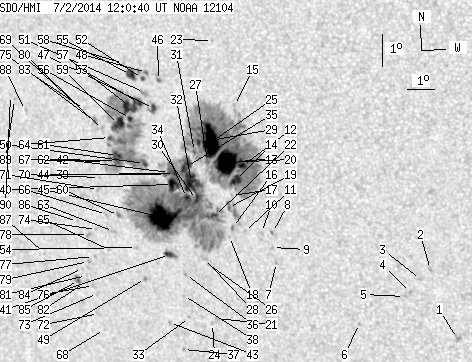

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.91 | 0.00 | 2.24 | -15.92 | 277.19 | -23.71 | 129.63 | 0.5041 | 807.0 | 620.6 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -13.73 | 276.52 | -24.38 | 125.26 | 0.4931 | 646.0 | 553.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -14.06 | 276.14 | -24.77 | 125.40 | 0.5005 | 821.0 | 630.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -14.48 | 275.74 | -25.16 | 125.69 | 0.5089 | 777.0 | 666.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -14.61 | 275.51 | -25.39 | 125.67 | 0.5128 | 692.0 | 608.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -15.52 | 273.81 | -27.10 | 125.43 | 0.5407 | 466.0 | 508.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -13.64 | 271.10 | -29.81 | 120.07 | 0.5603 | 501.0 | 453.5 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -12.68 | 271.08 | -29.82 | 118.53 | 0.5543 | 824.0 | 741.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -13.16 | 271.02 | -29.89 | 119.25 | 0.5582 | 577.0 | 412.2 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -12.70 | 270.68 | -30.22 | 118.24 | 0.5595 | 767.0 | 531.0 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -12.68 | 270.07 | -30.84 | 117.76 | 0.5673 | 629.0 | 530.8 | |
| 3.09 | 443.77 | 1.83 | 264.66 | -10.60 | 270.25 | -30.65 | 114.47 | 0.5527 | 1339.1 | 467.5 | |
| 1.27 | -12.00 | 0.75 | -12.00 | -10.44 | 270.20 | -30.70 | 114.17 | 0.5525 | 1398.0 | 999999 | |
| 8.27 | -12.00 | 4.93 | -12.00 | -11.08 | 269.94 | -30.96 | 115.06 | 0.5594 | 959.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -8.73 | 270.16 | -30.74 | 111.21 | 0.5441 | -157.0 | -120.4 | |
| 0.00 | 1.91 | 0.00 | 1.15 | -12.56 | 269.64 | -31.26 | 117.27 | 0.5720 | 815.0 | 688.2 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -11.55 | 269.74 | -31.16 | 115.70 | 0.5648 | 550.0 | 452.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -12.85 | 269.49 | -31.41 | 117.62 | 0.5756 | 436.0 | 390.0 | |
| 0.73 | 13.90 | 0.44 | 8.35 | -11.94 | 269.58 | -31.32 | 116.21 | 0.5690 | 811.2 | 646.7 | |
| 38.52 | -12.00 | 22.99 | -12.00 | -10.52 | 269.68 | -31.22 | 113.96 | 0.5598 | 1218.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.13 | -15.49 | 268.63 | -32.27 | 121.03 | 0.6027 | 692.0 | 611.8 | |
| 2.91 | 529.98 | 1.76 | 325.96 | -12.20 | 269.03 | -31.87 | 116.27 | 0.5776 | 827.2 | -139.2 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -6.73 | 269.53 | -31.37 | 107.35 | 0.5437 | 723.0 | 634.8 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -15.66 | 268.41 | -32.49 | 121.11 | 0.6064 | 562.0 | 466.3 | |
| 36.97 | -12.00 | 22.13 | -12.00 | -9.91 | 269.17 | -31.73 | 112.61 | 0.5634 | 1152.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -13.77 | 268.58 | -32.32 | 118.40 | 0.5925 | -645.0 | -559.5 | |
| 0.91 | -12.00 | 0.55 | -12.00 | -10.51 | 268.99 | -31.91 | 113.49 | 0.5689 | 280.8 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.95 | -13.58 | 268.46 | -32.44 | 118.03 | 0.5929 | -654.0 | -509.1 | |
| 2.54 | -12.00 | 1.53 | -12.00 | -9.92 | 268.73 | -32.17 | 112.36 | 0.5693 | 669.4 | 999999 | |
| 6.90 | -22.00 | 4.20 | -22.00 | -11.71 | 268.44 | -32.47 | 115.09 | 0.5826 | 225.2 | 999999 | |
| 1.00 | -12.00 | 0.60 | -12.00 | -10.20 | 268.55 | -32.35 | 112.73 | 0.5731 | 586.1 | 999999 | |
| 22.80 | -22.00 | 13.86 | -22.00 | -11.18 | 268.32 | -32.58 | 114.17 | 0.5812 | 663.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -15.49 | 267.57 | -33.33 | 120.27 | 0.6153 | 693.0 | 567.9 | |
| 2.63 | -22.00 | 1.61 | -22.00 | -11.66 | 268.07 | -32.83 | 114.78 | 0.5870 | 153.4 | 999999 | |
| 9.63 | -22.00 | 5.85 | -22.00 | -10.68 | 268.20 | -32.70 | 113.29 | 0.5802 | 738.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -14.11 | 267.66 | -33.24 | 118.29 | 0.6059 | -839.0 | -750.0 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -16.53 | 267.14 | -33.76 | 121.47 | 0.6268 | 636.0 | 434.2 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -14.79 | 267.47 | -33.43 | 119.16 | 0.6122 | -582.0 | -459.3 | |
| 2.09 | -22.00 | 1.28 | -22.00 | -10.92 | 267.73 | -33.18 | 113.38 | 0.5876 | -328.9 | 999999 | |
| 9.90 | -22.00 | 6.07 | -22.00 | -11.27 | 267.60 | -33.30 | 113.86 | 0.5909 | 470.2 | 999999 | |
| 3.63 | 7.09 | 2.26 | 4.41 | -13.49 | 267.16 | -33.74 | 117.02 | 0.6085 | -914.2 | -618.6 | |
| 0.27 | -22.00 | 0.17 | -22.00 | -10.89 | 267.54 | -33.36 | 113.23 | 0.5898 | -540.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -15.67 | 266.78 | -34.13 | 119.98 | 0.6259 | 494.0 | 327.5 | |
| 1.27 | -22.00 | 0.78 | -22.00 | -10.96 | 267.38 | -33.52 | 113.24 | 0.5922 | 230.7 | 999999 | |
| 49.33 | -22.00 | 30.58 | -22.00 | -12.32 | 267.08 | -33.82 | 115.19 | 0.6031 | -1101.6 | 999999 | |
| 0.64 | 3.72 | 0.39 | 2.26 | -8.02 | 267.46 | -33.45 | 108.52 | 0.5777 | 895.6 | 721.7 | |
| 3.00 | 6.54 | 1.83 | 3.99 | -8.90 | 267.18 | -33.72 | 109.82 | 0.5852 | 977.9 | 725.8 | |
| 0.55 | 2.27 | 0.33 | 1.38 | -7.79 | 267.03 | -33.87 | 107.92 | 0.5825 | 816.3 | 705.5 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -14.28 | 266.11 | -34.79 | 117.53 | 0.6258 | -718.0 | -624.8 | |
| 3.00 | 221.20 | 1.85 | 137.27 | -10.64 | 266.64 | -34.26 | 112.30 | 0.6003 | -256.6 | 374.7 | |
| 0.00 | 3.63 | 0.00 | 2.22 | -8.41 | 266.90 | -34.01 | 108.88 | 0.5869 | 810.0 | 697.3 | |
| 1.00 | 4.36 | 0.61 | 2.66 | -7.98 | 266.87 | -34.04 | 108.15 | 0.5855 | 825.4 | 718.5 | |
| 3.54 | -50.00 | 2.17 | -50.00 | -8.73 | 266.64 | -34.26 | 109.27 | 0.5917 | 962.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -13.30 | 265.94 | -34.96 | 115.97 | 0.6226 | -325.0 | -346.2 | |
| 6.00 | 8.36 | 3.67 | 5.12 | -7.87 | 266.43 | -34.47 | 107.76 | 0.5909 | 728.8 | 483.3 | |
| 2.45 | -50.00 | 1.51 | -50.00 | -9.24 | 266.28 | -34.62 | 109.90 | 0.5986 | 1027.0 | 999999 | |
| 14.99 | -50.00 | 9.24 | -50.00 | -8.87 | 266.29 | -34.61 | 109.31 | 0.5969 | 856.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -7.53 | 266.20 | -34.70 | 107.11 | 0.5927 | 522.0 | 338.3 | |
| 10.54 | -50.00 | 6.55 | -50.00 | -9.44 | 265.81 | -35.10 | 109.98 | 0.6057 | 846.8 | 999999 | |
| 0.45 | 3.00 | 0.29 | 1.90 | -12.31 | 265.41 | -35.49 | 114.18 | 0.6240 | -644.8 | -446.4 | |
| 4.63 | -50.00 | 2.90 | -50.00 | -10.41 | 265.65 | -35.26 | 111.42 | 0.6121 | 952.2 | 999999 | |
| 4.54 | -50.00 | 2.84 | -50.00 | -10.57 | 265.59 | -35.31 | 111.63 | 0.6135 | 471.5 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.45 | -12.82 | 265.14 | -35.77 | 114.79 | 0.6300 | -726.0 | -570.8 | |
| 1.27 | -50.00 | 0.80 | -50.00 | -9.86 | 265.42 | -35.49 | 110.44 | 0.6126 | 844.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -13.40 | 264.84 | -36.06 | 115.47 | 0.6365 | -669.0 | -476.1 | |
| 0.00 | 2.00 | 0.00 | 1.27 | -12.29 | 264.95 | -35.95 | 113.89 | 0.6297 | -584.0 | -480.5 | |
| 0.00 | 1.64 | 0.00 | 1.03 | -10.62 | 265.12 | -35.78 | 111.46 | 0.6197 | 435.0 | 337.9 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -15.98 | 264.18 | -36.72 | 118.75 | 0.6579 | -687.0 | -668.0 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -9.62 | 265.18 | -35.72 | 109.94 | 0.6146 | 584.0 | 499.9 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -11.13 | 264.86 | -36.04 | 112.10 | 0.6254 | 471.0 | 380.3 | |
| 0.00 | 2.18 | 0.00 | 1.38 | -11.51 | 264.76 | -36.14 | 112.62 | 0.6283 | -399.0 | -300.1 | |
| 0.00 | 2.09 | 0.00 | 1.37 | -15.47 | 264.05 | -36.85 | 117.96 | 0.6567 | -215.0 | -373.8 | |
| 0.00 | 1.64 | 0.00 | 1.07 | -14.82 | 264.14 | -36.76 | 117.11 | 0.6522 | -582.0 | -459.6 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -12.78 | 264.48 | -36.42 | 114.36 | 0.6378 | -585.0 | -496.5 | |
| 0.55 | 4.18 | 0.34 | 2.62 | -9.37 | 264.90 | -36.00 | 109.43 | 0.6172 | 758.5 | 538.1 | |
| 0.00 | 2.00 | 0.00 | 1.30 | -14.57 | 264.04 | -36.87 | 116.69 | 0.6522 | -723.0 | -667.2 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -13.64 | 264.21 | -36.69 | 115.46 | 0.6454 | -597.0 | -647.2 | |
| 0.00 | 2.36 | 0.00 | 1.52 | -12.95 | 264.14 | -36.76 | 114.41 | 0.6428 | -737.0 | -552.5 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -13.81 | 263.99 | -36.92 | 115.57 | 0.6489 | -793.0 | -685.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -9.20 | 264.66 | -36.25 | 109.04 | 0.6197 | 502.0 | 453.5 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -14.26 | 263.82 | -37.08 | 116.12 | 0.6532 | -577.0 | -469.8 | |
| 0.00 | 0.55 | 0.00 | 0.36 | -14.49 | 263.70 | -37.21 | 116.38 | 0.6558 | -732.0 | -629.8 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -9.01 | 264.56 | -36.34 | 108.71 | 0.6202 | 358.0 | 243.4 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -14.04 | 263.71 | -37.20 | 115.75 | 0.6534 | -722.0 | -608.1 | |
| 0.91 | 5.00 | 0.60 | 3.28 | -14.43 | 263.47 | -37.43 | 116.17 | 0.6582 | -751.0 | -590.9 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -12.55 | 263.78 | -37.12 | 113.64 | 0.6453 | -455.0 | -336.4 | |
| 0.00 | 0.55 | 0.00 | 0.36 | -13.61 | 262.27 | -38.63 | 114.37 | 0.6684 | -497.0 | -454.2 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -9.12 | 262.25 | -38.66 | 107.86 | 0.6502 | -571.0 | -447.3 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -8.79 | 261.85 | -39.05 | 107.21 | 0.6541 | -694.0 | -595.3 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -8.67 | 261.71 | -39.19 | 106.98 | 0.6555 | -561.0 | -503.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
