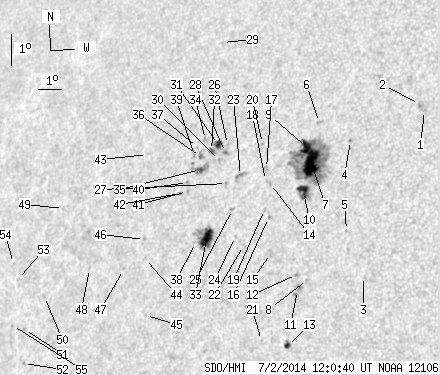

SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.58 | 287.56 | 50.29 | 192.21 | 15.09 | 259.99 | -40.91 | 70.60 | 0.6722 | -325.6 | -139.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.08 | 17.64 | 265.84 | -35.06 | 64.45 | 0.6090 | -122.0 | -123.9 | |
| 0.00 | 3.27 | 0.00 | 2.05 | 17.82 | 265.61 | -35.30 | 64.29 | 0.6127 | -758.0 | -579.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 12.41 | 264.47 | -36.43 | 73.36 | 0.6076 | -551.0 | -616.1 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 16.62 | 263.14 | -37.77 | 67.28 | 0.6385 | 441.0 | 429.1 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 13.81 | 263.56 | -37.34 | 71.44 | 0.6236 | -545.0 | -495.0 | |
| 0.00 | 2.82 | 0.00 | 1.85 | 17.14 | 261.74 | -39.16 | 67.06 | 0.6575 | -646.0 | -460.5 | |
| 29.16 | 154.07 | 19.04 | 100.62 | 15.85 | 261.73 | -39.18 | 68.98 | 0.6533 | -1010.6 | -360.3 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 12.25 | 262.29 | -38.61 | 74.27 | 0.6359 | -807.0 | -656.7 | |
| 9.72 | -7.00 | 6.39 | -7.00 | 16.34 | 261.40 | -39.50 | 68.37 | 0.6589 | -584.9 | 999999 | |
| 9.08 | -7.00 | 5.92 | -7.00 | 14.97 | 261.60 | -39.31 | 70.34 | 0.6521 | -837.1 | 999999 | |
| 0.00 | 6.99 | 0.00 | 4.50 | 11.90 | 261.95 | -38.96 | 74.90 | 0.6394 | -640.0 | -592.0 | |
| 0.00 | 1.64 | 0.00 | 1.05 | 12.39 | 261.82 | -39.08 | 74.18 | 0.6422 | -760.0 | -637.5 | |
| 2.36 | 4.18 | 1.52 | 2.68 | 10.20 | 261.81 | -39.09 | 77.58 | 0.6377 | -725.4 | -524.3 | |
| 0.00 | 1.64 | 0.00 | 1.09 | 15.17 | 260.19 | -40.72 | 70.50 | 0.6702 | -560.0 | -472.3 | |
| 0.00 | 2.54 | 0.00 | 1.67 | 13.01 | 260.65 | -40.25 | 73.57 | 0.6587 | -584.0 | -499.9 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 14.12 | 260.34 | -40.56 | 72.01 | 0.6654 | -536.0 | -453.2 | |
| 0.00 | 2.54 | 0.00 | 1.70 | 15.63 | 259.91 | -40.99 | 69.92 | 0.6749 | -424.0 | -279.1 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 15.26 | 259.96 | -40.95 | 70.45 | 0.6732 | -269.0 | -265.6 | |
| 0.00 | 1.64 | 0.00 | 1.09 | 14.36 | 260.12 | -40.78 | 71.71 | 0.6687 | -482.0 | -447.9 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 16.41 | 259.55 | -41.36 | 68.93 | 0.6816 | 659.0 | 527.5 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 10.32 | 260.75 | -40.16 | 77.61 | 0.6518 | -346.0 | -258.5 | |
| 0.00 | 0.55 | 0.00 | 0.36 | 13.22 | 259.49 | -41.42 | 73.57 | 0.6737 | -621.0 | -476.2 | |
| 0.00 | 5.90 | 0.00 | 4.01 | 15.38 | 258.87 | -42.03 | 70.61 | 0.6867 | 475.0 | 616.6 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 13.48 | 259.09 | -41.81 | 73.28 | 0.6792 | -539.0 | -427.9 | |
| 0.00 | 1.54 | 0.00 | 1.05 | 14.31 | 258.78 | -42.12 | 72.16 | 0.6850 | 625.0 | 559.5 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 16.33 | 258.06 | -42.84 | 69.52 | 0.6989 | 523.0 | 420.9 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 15.11 | 258.33 | -42.57 | 71.15 | 0.6924 | 534.0 | 504.8 | |
| 0.45 | 2.00 | 0.31 | 1.38 | 16.07 | 258.04 | -42.86 | 69.88 | 0.6984 | 758.0 | 634.6 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 19.52 | 256.86 | -44.04 | 65.53 | 0.7221 | -223.0 | -216.6 | |
| 0.00 | 1.45 | 0.00 | 1.01 | 15.82 | 257.85 | -43.05 | 70.29 | 0.7000 | 527.0 | 565.9 | |
| 4.18 | 6.18 | 2.90 | 4.29 | 16.31 | 257.67 | -43.23 | 69.65 | 0.7034 | 765.5 | 516.3 | |
| 1.64 | 3.45 | 1.14 | 2.41 | 16.12 | 257.42 | -43.48 | 70.00 | 0.7058 | 776.7 | 676.7 | |
| 15.35 | 29.43 | 10.53 | 20.22 | 13.38 | 257.88 | -43.02 | 73.73 | 0.6937 | -832.6 | -206.9 | |
| 0.00 | 3.00 | 0.00 | 2.10 | 16.45 | 257.06 | -43.84 | 69.64 | 0.7108 | 481.0 | 371.9 | |
| 2.82 | 13.17 | 1.97 | 9.22 | 15.51 | 257.10 | -43.80 | 70.94 | 0.7080 | 796.6 | 622.9 | |
| 0.82 | 5.00 | 0.57 | 3.50 | 15.91 | 256.99 | -43.91 | 70.41 | 0.7102 | 757.0 | 600.6 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 16.19 | 256.78 | -44.12 | 70.09 | 0.7134 | 403.0 | 325.9 | |
| 0.00 | 1.64 | 0.00 | 1.13 | 13.24 | 257.44 | -43.47 | 74.03 | 0.6988 | 149.0 | 69.4 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 15.94 | 256.72 | -44.18 | 70.45 | 0.7134 | 419.0 | 392.6 | |
| 0.00 | 1.73 | 0.00 | 1.21 | 15.09 | 256.64 | -44.26 | 71.65 | 0.7123 | 805.0 | 677.4 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 14.81 | 256.71 | -44.19 | 72.01 | 0.7108 | 795.0 | 710.3 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 14.73 | 256.38 | -44.53 | 72.20 | 0.7146 | 725.0 | 656.1 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 15.89 | 254.61 | -46.29 | 71.06 | 0.7373 | -570.0 | -494.7 | |
| 0.00 | 1.36 | 0.00 | 0.97 | 12.67 | 255.36 | -45.54 | 75.27 | 0.7223 | -555.0 | -501.0 | |
| 0.00 | 0.64 | 0.00 | 0.45 | 10.92 | 255.73 | -45.17 | 77.63 | 0.7152 | 603.0 | 549.7 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 13.25 | 255.18 | -45.72 | 74.50 | 0.7255 | -489.0 | -407.4 | |
| 0.00 | 0.55 | 0.00 | 0.40 | 12.30 | 254.46 | -46.45 | 75.94 | 0.7323 | 322.0 | 286.3 | |
| 0.00 | 0.55 | 0.00 | 0.41 | 12.27 | 252.89 | -48.01 | 76.24 | 0.7500 | 174.0 | 214.5 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 14.07 | 251.17 | -49.74 | 74.17 | 0.7716 | 543.0 | 510.2 | |
| 0.00 | 1.73 | 0.00 | 1.34 | 11.33 | 250.97 | -49.93 | 77.74 | 0.7701 | 91.0 | 193.2 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 10.28 | 250.24 | -50.67 | 79.18 | 0.7771 | 445.0 | 453.5 | |
| 0.00 | 1.18 | 0.00 | 0.92 | 9.24 | 250.41 | -50.50 | 80.51 | 0.7744 | 519.0 | 360.8 | |
| 0.00 | 0.82 | 0.00 | 0.65 | 11.80 | 249.52 | -51.38 | 77.32 | 0.7861 | 480.0 | 388.8 | |
| 0.00 | 0.73 | 0.00 | 0.58 | 12.28 | 249.19 | -51.71 | 76.75 | 0.7901 | 243.0 | 145.4 | |
| 0.00 | 0.91 | 0.00 | 0.72 | 10.38 | 249.62 | -51.28 | 79.11 | 0.7838 | 401.0 | 301.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
