SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.71 | 0.00 | 7.31 | -12.92 | 254.46 | -46.45 | 110.12 | 0.7537 | 451.3 | 330.6 | |
|
previous
or next observation for the same group /

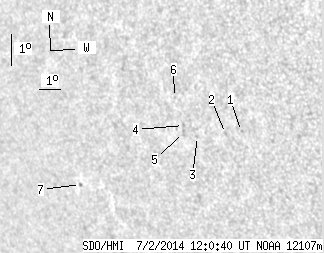

back to the solar disc SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.71 | -12.61 | 257.40 | -43.51 | 110.80 | 0.7210 | 718.0 | 594.6 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -12.70 | 256.68 | -44.22 | 110.64 | 0.7293 | 519.0 | 406.3 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -12.84 | 255.41 | -45.50 | 110.34 | 0.7439 | 515.0 | 416.9 | |
| 0.00 | 1.45 | 0.00 | 1.08 | -12.51 | 254.85 | -46.05 | 109.72 | 0.7489 | 714.0 | 527.0 | |
| 0.00 | 2.36 | 0.00 | 1.76 | -12.74 | 254.80 | -46.10 | 109.99 | 0.7502 | 645.0 | 493.7 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -11.64 | 254.65 | -46.26 | 108.52 | 0.7485 | 541.0 | 494.4 | |
| 0.00 | 1.45 | 0.00 | 1.23 | -14.61 | 249.34 | -51.57 | 110.50 | 0.8114 | -493.0 | -438.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
