SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.79 | 145.17 | 40.12 | 156.09 | -8.15 | 239.21 | -61.69 | 100.80 | 0.8884 | 170.1 | -13.4 | |
|
previous
or next observation for the same group /

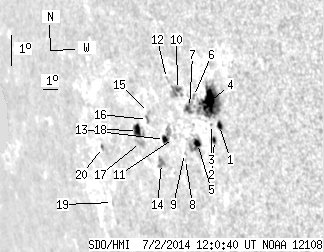

back to the solar disc SDO HMI 2014-07-02 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.73 | 4.00 | 2.72 | 3.99 | -8.19 | 241.56 | -59.34 | 101.22 | 0.8700 | 639.3 | 531.6 | |
| 1.82 | 3.09 | 1.84 | 3.13 | -8.68 | 241.13 | -59.77 | 101.70 | 0.8742 | 523.2 | 453.0 | |
| 0.00 | 0.91 | 0.00 | 0.92 | -8.18 | 241.07 | -59.83 | 101.13 | 0.8741 | 442.0 | 450.6 | |
| 17.62 | 53.14 | 17.78 | 53.62 | -7.47 | 241.12 | -59.78 | 100.32 | 0.8728 | 674.7 | 392.9 | |
| 3.72 | 16.90 | 3.91 | 17.81 | -8.82 | 240.02 | -60.88 | 101.68 | 0.8834 | 445.1 | 44.4 | |
| 0.00 | 2.00 | 0.00 | 2.07 | -7.36 | 240.15 | -60.76 | 100.05 | 0.8808 | 141.0 | 149.3 | |
| 0.00 | 8.27 | 0.00 | 8.70 | -7.72 | 239.80 | -61.10 | 100.40 | 0.8839 | -522.0 | -378.3 | |
| 0.00 | 0.91 | 0.00 | 0.99 | -9.36 | 239.08 | -61.82 | 102.13 | 0.8915 | 162.0 | 121.7 | |
| 0.00 | 0.64 | 0.00 | 0.69 | -9.18 | 239.07 | -61.83 | 101.92 | 0.8913 | 132.0 | 146.7 | |
| 1.73 | 11.90 | 1.85 | 12.81 | -7.19 | 239.15 | -61.75 | 99.72 | 0.8885 | 212.2 | -78.5 | |
| 0.00 | 0.45 | 0.00 | 0.50 | -8.74 | 238.47 | -62.43 | 101.34 | 0.8955 | -379.0 | -383.0 | |
| 0.00 | 1.00 | 0.00 | 1.09 | -6.88 | 238.50 | -62.40 | 99.28 | 0.8934 | -362.0 | -241.3 | |
| 3.27 | 10.45 | 3.69 | 11.70 | -8.80 | 237.84 | -63.06 | 101.32 | 0.9003 | -475.1 | -522.7 | |
| 0.00 | 6.54 | 0.00 | 7.54 | -9.57 | 237.38 | -63.52 | 102.09 | 0.9045 | -618.0 | -509.9 | |
| 0.00 | 1.54 | 0.00 | 1.79 | -8.00 | 236.96 | -63.94 | 100.32 | 0.9060 | -468.0 | -416.1 | |
| 0.00 | 2.91 | 0.00 | 3.39 | -8.23 | 236.83 | -64.08 | 100.54 | 0.9072 | -580.0 | -503.2 | |
| 0.00 | 5.63 | 0.00 | 6.78 | -8.98 | 236.08 | -64.82 | 101.26 | 0.9132 | -108.0 | -48.2 | |
| 6.90 | 11.08 | 8.33 | 13.35 | -8.61 | 235.98 | -64.92 | 100.84 | 0.9135 | -365.8 | -298.0 | |
| 0.00 | 1.36 | 0.00 | 1.87 | -11.00 | 233.07 | -67.84 | 103.00 | 0.9346 | -460.0 | -340.5 | |
| 0.00 | 2.45 | 0.00 | 3.35 | -9.28 | 233.00 | -67.90 | 101.17 | 0.9336 | -376.0 | -270.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
