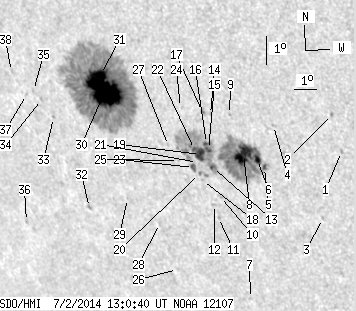

SDO HMI 2014-07-02 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.00 | 708.99 | 90.04 | 518.38 | -19.71 | 258.30 | -42.06 | 120.72 | 0.7355 | 456.6 | 109.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.95 | -20.70 | 266.14 | -34.21 | 126.81 | 0.6592 | 620.0 | 449.2 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -19.48 | 266.06 | -34.30 | 125.14 | 0.6519 | 793.0 | 630.1 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -22.99 | 264.73 | -35.62 | 128.69 | 0.6892 | 593.0 | 488.5 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -19.92 | 263.63 | -36.72 | 124.04 | 0.6807 | 533.0 | 487.5 | |
| 1.64 | 131.53 | 1.13 | 91.62 | -21.34 | 262.85 | -37.50 | 125.35 | 0.6975 | 802.8 | 74.0 | |
| 4.63 | -5.00 | 3.19 | -5.00 | -21.08 | 262.64 | -37.71 | 124.88 | 0.6981 | 990.9 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -25.87 | 260.66 | -39.69 | 129.40 | 0.7460 | -561.0 | -469.1 | |
| 23.53 | -5.00 | 16.33 | -5.00 | -20.93 | 262.11 | -38.25 | 124.36 | 0.7027 | 811.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -19.61 | 261.91 | -38.44 | 122.56 | 0.6971 | 425.0 | 365.1 | |
| 0.00 | 2.00 | 0.00 | 1.43 | -22.38 | 260.66 | -39.69 | 125.27 | 0.7256 | -672.0 | -654.0 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -23.10 | 260.32 | -40.03 | 125.94 | 0.7330 | -682.0 | -574.7 | |
| 0.00 | 1.73 | 0.00 | 1.25 | -22.66 | 260.30 | -40.05 | 125.40 | 0.7307 | -555.0 | -448.1 | |
| 1.54 | 94.92 | 1.10 | 67.70 | -21.41 | 260.65 | -39.71 | 124.07 | 0.7203 | -780.9 | -452.9 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -19.64 | 261.11 | -39.24 | 122.12 | 0.7057 | -663.0 | -548.2 | |
| 3.18 | -13.00 | 2.25 | -13.00 | -20.81 | 260.67 | -39.68 | 123.34 | 0.7167 | -954.1 | 999999 | |
| 2.18 | -13.00 | 1.54 | -13.00 | -20.61 | 260.65 | -39.70 | 123.07 | 0.7158 | -942.0 | 999999 | |
| 0.45 | 1.91 | 0.32 | 1.33 | -19.55 | 260.80 | -39.55 | 121.82 | 0.7085 | -491.4 | -344.4 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -21.87 | 260.06 | -40.29 | 124.28 | 0.7286 | -535.0 | -422.3 | |
| 8.90 | -13.00 | 6.35 | -13.00 | -20.99 | 260.27 | -40.08 | 123.33 | 0.7218 | -871.9 | 999999 | |
| 0.55 | 4.27 | 0.39 | 3.07 | -21.63 | 260.01 | -40.34 | 123.97 | 0.7278 | -649.5 | -690.8 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -21.27 | 260.05 | -40.30 | 123.54 | 0.7254 | -355.0 | -432.6 | |
| 1.82 | -13.00 | 1.30 | -13.00 | -20.83 | 260.06 | -40.29 | 123.01 | 0.7230 | -752.5 | 999999 | |
| 2.45 | 4.45 | 1.77 | 3.21 | -21.44 | 259.82 | -40.53 | 123.62 | 0.7287 | -551.2 | -361.2 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -19.45 | 259.90 | -40.45 | 121.18 | 0.7174 | 341.0 | 405.0 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -21.23 | 259.24 | -41.11 | 123.03 | 0.7333 | -318.0 | -255.1 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -24.97 | 257.75 | -42.60 | 126.65 | 0.7671 | -569.0 | -500.4 | |
| 0.00 | 0.55 | 0.00 | 0.40 | -20.74 | 258.97 | -41.38 | 122.28 | 0.7335 | 35.0 | 1.3 | |
| 0.00 | 1.64 | 0.00 | 1.24 | -23.40 | 257.59 | -42.77 | 124.74 | 0.7606 | -389.0 | -302.4 | |
| 0.00 | 0.73 | 0.00 | 0.56 | -22.60 | 256.45 | -43.91 | 123.19 | 0.7673 | 630.0 | 490.8 | |
| 63.77 | 443.73 | 47.44 | 330.68 | -19.04 | 256.72 | -43.64 | 119.01 | 0.7482 | 969.1 | 266.6 | |
| 9.36 | -30.00 | 6.93 | -30.00 | -18.48 | 256.72 | -43.63 | 118.32 | 0.7457 | 1153.3 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.74 | -22.98 | 254.51 | -45.85 | 122.67 | 0.7869 | -612.0 | -538.6 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -20.00 | 254.03 | -46.32 | 118.93 | 0.7787 | 461.0 | 306.0 | |
| 0.00 | 1.36 | 0.00 | 1.07 | -19.42 | 253.69 | -46.67 | 118.08 | 0.7798 | -625.0 | -562.7 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -19.13 | 253.41 | -46.94 | 117.62 | 0.7813 | -696.0 | -621.5 | |
| 0.00 | 1.18 | 0.00 | 1.01 | -23.59 | 251.10 | -49.25 | 121.84 | 0.8193 | -485.0 | -364.7 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -19.28 | 253.03 | -47.33 | 117.63 | 0.7856 | -682.0 | -585.5 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -18.54 | 252.58 | -47.77 | 116.57 | 0.7871 | -368.0 | -249.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
