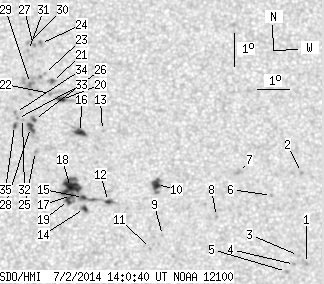

SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.87 | 141.12 | 19.57 | 71.19 | 11.08 | 306.49 | 6.69 | 321.14 | 0.1864 | 316.8 | 383.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.84 | 7.59 | 313.30 | 13.50 | 289.35 | 0.2464 | -877.0 | -749.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 10.38 | 313.26 | 13.46 | 299.53 | 0.2642 | -863.0 | -747.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 7.84 | 313.06 | 13.26 | 290.63 | 0.2439 | -943.0 | -775.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 7.57 | 312.92 | 13.12 | 289.73 | 0.2402 | -949.0 | -836.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.36 | 312.67 | 12.87 | 289.23 | 0.2349 | -951.0 | -763.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.69 | 312.27 | 12.47 | 298.88 | 0.2442 | -914.0 | -686.8 | |
| 0.00 | 4.27 | 0.00 | 2.18 | 10.41 | 311.26 | 11.46 | 303.58 | 0.2355 | -941.0 | -688.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.06 | 310.52 | 10.72 | 300.07 | 0.2131 | -923.0 | -717.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 8.50 | 308.81 | 9.01 | 301.85 | 0.1832 | -791.0 | -593.3 | |
| 4.90 | 10.17 | 2.48 | 5.14 | 10.07 | 308.67 | 8.87 | 309.11 | 0.1964 | -1157.9 | -831.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.11 | 308.43 | 8.63 | 301.03 | 0.1741 | -890.0 | -680.6 | |
| 1.63 | 49.23 | 0.82 | 24.72 | 9.56 | 307.15 | 7.35 | 312.18 | 0.1711 | 704.0 | 773.8 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 11.74 | 307.02 | 7.22 | 321.03 | 0.1965 | -717.0 | -588.4 | |
| 1.45 | 2.82 | 0.73 | 1.41 | 9.35 | 306.40 | 6.60 | 314.29 | 0.1592 | 914.6 | 643.1 | |
| 1.54 | -12.00 | 0.78 | -12.00 | 9.68 | 306.38 | 6.58 | 315.90 | 0.1630 | 1087.7 | 999999 | |
| 4.00 | 7.99 | 2.02 | 4.03 | 11.68 | 306.33 | 6.53 | 323.60 | 0.1885 | -1141.8 | -765.5 | |
| 1.45 | -12.00 | 0.73 | -12.00 | 9.75 | 306.01 | 6.21 | 317.82 | 0.1594 | 1182.7 | 999999 | |
| 13.90 | -12.00 | 6.98 | -12.00 | 9.99 | 305.98 | 6.18 | 318.97 | 0.1622 | 1174.6 | 999999 | |
| 2.63 | -12.00 | 1.32 | -12.00 | 9.60 | 305.91 | 6.11 | 317.60 | 0.1563 | 1144.4 | 999999 | |
| 2.09 | 6.54 | 1.06 | 3.31 | 12.71 | 305.76 | 5.96 | 329.01 | 0.1976 | 905.8 | 496.0 | |
| 0.82 | 3.54 | 0.41 | 1.79 | 13.27 | 305.49 | 5.69 | 331.56 | 0.2036 | 825.1 | 673.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.89 | 305.42 | 5.62 | 330.95 | 0.1974 | 782.0 | 638.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.51 | 305.24 | 5.44 | 333.18 | 0.2054 | 738.0 | 576.1 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 14.45 | 305.14 | 5.34 | 335.57 | 0.2189 | 838.0 | 752.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.11 | 304.91 | 5.11 | 328.20 | 0.1666 | 1018.0 | 820.4 | |
| 0.82 | 9.81 | 0.41 | 4.94 | 12.09 | 304.90 | 5.10 | 331.19 | 0.1811 | 902.6 | 776.3 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.39 | 304.92 | 5.12 | 336.35 | 0.2164 | 962.0 | 842.8 | |
| 2.91 | -26.00 | 1.46 | -26.00 | 11.85 | 304.77 | 4.97 | 331.13 | 0.1764 | 1109.0 | 999999 | |
| 0.00 | 19.16 | 0.00 | 9.68 | 13.21 | 304.80 | 5.00 | 334.42 | 0.1973 | 1235.0 | 808.2 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.48 | 304.76 | 4.96 | 337.17 | 0.2169 | 799.0 | 653.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 14.23 | 304.76 | 4.96 | 336.72 | 0.2129 | 872.0 | 709.5 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 12.13 | 304.52 | 4.72 | 333.07 | 0.1786 | 573.0 | 720.3 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 12.13 | 304.37 | 4.57 | 333.84 | 0.1774 | 1014.0 | 839.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.31 | 304.31 | 4.51 | 334.60 | 0.1799 | 995.0 | 960.7 | |
| 0.73 | 2.09 | 0.37 | 1.05 | 11.91 | 304.27 | 4.47 | 333.78 | 0.1734 | 1131.9 | 966.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
