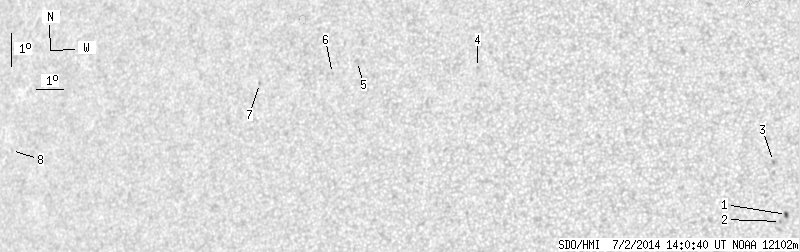

SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.91 | 10.90 | 0.48 | 6.41 | 6.95 | 268.70 | -31.10 | 81.54 | 0.5125 | -20.6 | 34.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.91 | 2.18 | 0.48 | 1.15 | 4.72 | 279.41 | -20.39 | 84.56 | 0.3503 | -1030.4 | -876.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 4.50 | 279.22 | -20.58 | 85.22 | 0.3532 | -800.0 | -673.9 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 6.33 | 278.93 | -20.87 | 80.19 | 0.3609 | -886.0 | -716.7 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 8.98 | 268.60 | -31.20 | 77.71 | 0.5258 | 784.0 | 665.9 | |
| 0.00 | 2.45 | 0.00 | 1.50 | 9.04 | 264.14 | -35.66 | 78.72 | 0.5892 | 722.0 | 587.1 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 8.65 | 263.23 | -36.57 | 79.57 | 0.6011 | 612.0 | 482.9 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 8.25 | 260.42 | -39.38 | 80.67 | 0.6386 | 661.0 | 569.7 | |
| 0.00 | 0.91 | 0.00 | 0.70 | 5.83 | 249.95 | -49.85 | 84.91 | 0.7657 | 257.0 | 179.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
