SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 253.24 | 1347.73 | 152.36 | 812.05 | -10.88 | 268.07 | -31.73 | 114.27 | 0.5686 | 393.1 | 163.5 | |
|
previous
or next observation for the same group /

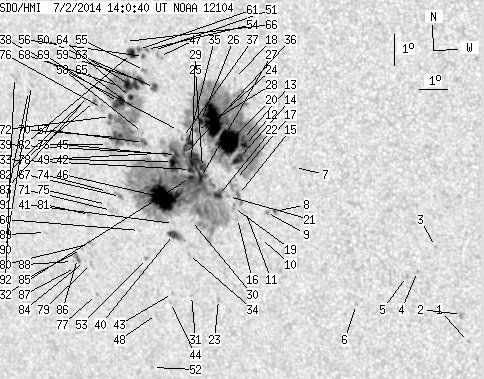

back to the solar disc SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.78 | -16.70 | 277.34 | -22.46 | 132.35 | 0.4970 | 652.0 | 495.6 | |
| 0.00 | 4.09 | 0.00 | 2.32 | -15.83 | 277.21 | -22.59 | 130.81 | 0.4903 | 889.0 | 633.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -13.67 | 276.56 | -23.24 | 126.43 | 0.4784 | 758.0 | 580.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -14.48 | 275.85 | -23.95 | 127.01 | 0.4941 | 741.0 | 539.9 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -14.65 | 275.45 | -24.35 | 126.85 | 0.5004 | 675.0 | 609.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -15.59 | 273.58 | -26.21 | 126.41 | 0.5307 | 527.0 | 403.3 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -11.27 | 271.93 | -27.87 | 117.72 | 0.5198 | 784.0 | 627.9 | |
| 0.82 | 2.00 | 0.48 | 1.17 | -12.68 | 271.06 | -28.74 | 119.39 | 0.5405 | 908.9 | 782.6 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -12.72 | 270.77 | -29.03 | 119.22 | 0.5445 | 739.0 | 635.0 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -13.55 | 270.44 | -29.36 | 120.31 | 0.5541 | 578.0 | 508.3 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -12.71 | 270.02 | -29.78 | 118.60 | 0.5540 | 371.0 | 448.5 | |
| 3.45 | 1006.72 | 2.03 | 603.48 | -10.63 | 270.23 | -29.57 | 115.28 | 0.5385 | 1333.7 | 118.7 | |
| 3.54 | -12.00 | 2.08 | -12.00 | -10.44 | 270.18 | -29.62 | 114.93 | 0.5381 | 1319.4 | 999999 | |
| 9.36 | -12.00 | 5.52 | -12.00 | -11.04 | 269.97 | -29.83 | 115.80 | 0.5444 | 961.1 | 999999 | |
| 0.91 | 11.99 | 0.54 | 7.12 | -12.18 | 269.83 | -29.97 | 117.59 | 0.5530 | 882.1 | 725.3 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -12.94 | 269.70 | -30.10 | 118.73 | 0.5595 | 614.0 | 485.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -11.71 | 269.78 | -30.02 | 116.78 | 0.5508 | 721.0 | 664.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -8.54 | 270.08 | -29.72 | 111.53 | 0.5291 | -279.0 | -215.7 | |
| 0.00 | 2.82 | 0.00 | 1.68 | -12.59 | 269.60 | -30.20 | 118.10 | 0.5586 | 834.0 | 670.3 | |
| 40.15 | -12.00 | 23.68 | -12.00 | -10.52 | 269.67 | -30.13 | 114.70 | 0.5453 | 1220.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -12.25 | 269.46 | -30.34 | 117.44 | 0.5582 | 688.0 | 599.0 | |
| 5.72 | -12.00 | 3.42 | -12.00 | -12.23 | 269.10 | -30.70 | 117.14 | 0.5627 | 848.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -15.55 | 268.60 | -31.20 | 121.94 | 0.5902 | 726.0 | 589.1 | |
| 37.87 | -12.00 | 22.41 | -12.00 | -9.90 | 269.16 | -30.64 | 113.31 | 0.5487 | 1162.2 | 999999 | |
| 4.18 | -12.00 | 2.50 | -12.00 | -11.36 | 268.63 | -31.17 | 115.39 | 0.5638 | 856.9 | 999999 | |
| 2.45 | -12.00 | 1.46 | -12.00 | -9.91 | 268.73 | -31.07 | 113.05 | 0.5546 | 649.0 | 999999 | |
| 5.00 | -12.00 | 3.00 | -12.00 | -11.68 | 268.52 | -31.28 | 115.83 | 0.5670 | 480.7 | 999999 | |
| 1.27 | -12.00 | 0.76 | -12.00 | -10.20 | 268.55 | -31.25 | 113.41 | 0.5585 | 634.6 | 999999 | |
| 1.91 | -12.00 | 1.15 | -12.00 | -11.21 | 268.25 | -31.55 | 114.89 | 0.5679 | 795.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -13.05 | 268.00 | -31.80 | 117.66 | 0.5817 | -740.0 | -603.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -15.45 | 267.62 | -32.18 | 121.04 | 0.6014 | 710.0 | 572.4 | |
| 2.27 | -12.00 | 1.37 | -12.00 | -11.69 | 268.15 | -31.65 | 115.59 | 0.5719 | 214.0 | 999999 | |
| 2.91 | -12.00 | 1.75 | -12.00 | -11.43 | 268.19 | -31.61 | 115.21 | 0.5700 | -171.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -14.14 | 267.72 | -32.08 | 119.14 | 0.5918 | -892.0 | -627.5 | |
| 8.63 | -12.00 | 5.17 | -12.00 | -10.65 | 268.17 | -31.63 | 113.92 | 0.5659 | 714.8 | 999999 | |
| 1.18 | -12.00 | 0.71 | -12.00 | -10.97 | 268.02 | -31.78 | 114.34 | 0.5696 | 382.5 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.31 | -10.43 | 268.01 | -31.79 | 113.46 | 0.5668 | 274.0 | 317.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -10.22 | 267.89 | -31.91 | 113.03 | 0.5673 | 231.0 | 176.6 | |
| 2.63 | -12.00 | 1.59 | -12.00 | -10.98 | 267.73 | -32.07 | 114.16 | 0.5735 | -393.2 | 999999 | |
| 5.81 | 11.90 | 3.57 | 7.31 | -13.51 | 267.26 | -32.54 | 117.86 | 0.5937 | -785.6 | -177.0 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -13.16 | 267.32 | -32.48 | 117.36 | 0.5910 | -793.0 | -623.8 | |
| 6.36 | -12.00 | 3.85 | -12.00 | -11.20 | 267.55 | -32.25 | 114.42 | 0.5769 | 564.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -15.41 | 266.91 | -32.89 | 120.46 | 0.6096 | 564.0 | 425.7 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -15.70 | 266.78 | -33.02 | 120.79 | 0.6129 | 468.0 | 364.3 | |
| 1.45 | -12.00 | 0.88 | -12.00 | -10.99 | 267.32 | -32.48 | 113.93 | 0.5788 | 349.5 | 999999 | |
| 44.32 | -12.00 | 27.13 | -12.00 | -12.35 | 267.07 | -32.73 | 115.92 | 0.5895 | -1099.5 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.96 | -7.93 | 267.43 | -32.37 | 108.92 | 0.5626 | 623.0 | 750.7 | |
| 0.00 | 1.73 | 0.00 | 1.09 | -16.10 | 266.17 | -33.63 | 120.95 | 0.6226 | -304.0 | -351.2 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -10.97 | 266.96 | -32.84 | 113.66 | 0.5835 | -326.0 | -238.2 | |
| 3.09 | 5.18 | 1.86 | 3.12 | -8.90 | 267.16 | -32.64 | 110.40 | 0.5707 | 968.5 | 743.0 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -7.75 | 267.23 | -32.57 | 108.50 | 0.5646 | 578.0 | 524.5 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -17.83 | 265.66 | -34.14 | 123.02 | 0.6395 | 603.0 | 484.6 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -14.31 | 266.12 | -33.68 | 118.29 | 0.6125 | -782.0 | -663.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -7.72 | 266.98 | -32.82 | 108.33 | 0.5680 | 857.0 | 772.8 | |
| 0.00 | 2.91 | 0.00 | 1.75 | -8.38 | 266.84 | -32.96 | 109.36 | 0.5726 | 800.0 | 711.4 | |
| 0.82 | 1.63 | 0.49 | 0.98 | -7.94 | 266.85 | -32.95 | 108.64 | 0.5707 | 865.9 | 779.9 | |
| 2.36 | 204.90 | 1.44 | 125.42 | -10.63 | 266.55 | -33.25 | 112.89 | 0.5870 | -250.3 | 397.9 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -10.32 | 266.56 | -33.24 | 112.39 | 0.5855 | -216.0 | -89.5 | |
| 4.18 | -57.00 | 2.53 | -57.00 | -8.69 | 266.66 | -33.14 | 109.79 | 0.5764 | 896.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -13.42 | 266.00 | -33.80 | 116.89 | 0.6088 | -526.0 | -453.1 | |
| 0.82 | 9.54 | 0.49 | 5.77 | -7.73 | 266.68 | -33.12 | 108.20 | 0.5720 | 786.3 | 519.2 | |
| 5.81 | -61.00 | 3.52 | -61.00 | -7.86 | 266.41 | -33.39 | 108.28 | 0.5763 | 708.6 | 999999 | |
| 13.81 | -57.00 | 8.40 | -57.00 | -8.86 | 266.28 | -33.52 | 109.86 | 0.5824 | 874.8 | 999999 | |
| 2.45 | -57.00 | 1.49 | -57.00 | -9.23 | 266.24 | -33.56 | 110.45 | 0.5846 | 979.5 | 999999 | |
| 1.73 | -57.00 | 1.05 | -57.00 | -9.45 | 266.17 | -33.63 | 110.78 | 0.5864 | 888.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -7.50 | 266.22 | -33.58 | 107.58 | 0.5773 | 535.0 | 371.4 | |
| 0.64 | 3.63 | 0.40 | 2.27 | -12.36 | 265.45 | -34.35 | 114.93 | 0.6100 | -604.6 | -419.1 | |
| 1.09 | -57.00 | 0.67 | -57.00 | -8.90 | 265.86 | -33.94 | 109.71 | 0.5881 | 311.1 | 999999 | |
| 10.63 | -57.00 | 6.52 | -57.00 | -9.40 | 265.77 | -34.03 | 110.48 | 0.5915 | 822.1 | 999999 | |
| 9.90 | -57.00 | 6.11 | -57.00 | -10.50 | 265.56 | -34.24 | 112.11 | 0.5993 | 722.9 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.31 | -12.82 | 265.04 | -34.76 | 115.37 | 0.6175 | -686.0 | -572.0 | |
| 1.63 | -57.00 | 1.01 | -57.00 | -9.85 | 265.42 | -34.38 | 111.00 | 0.5982 | 820.2 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.24 | -10.73 | 265.19 | -34.61 | 112.27 | 0.6052 | 304.0 | 133.7 | |
| 0.00 | 2.09 | 0.00 | 1.31 | -12.22 | 264.98 | -34.82 | 114.43 | 0.6152 | -184.0 | -262.0 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -12.63 | 264.88 | -34.92 | 115.00 | 0.6186 | -432.0 | -437.8 | |
| 0.00 | 3.27 | 0.00 | 2.02 | -9.61 | 265.15 | -34.65 | 110.48 | 0.6007 | 470.0 | 431.0 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -15.53 | 263.97 | -35.83 | 118.67 | 0.6451 | -717.0 | -549.8 | |
| 0.73 | 5.27 | 0.45 | 3.27 | -9.40 | 264.87 | -34.93 | 110.00 | 0.6034 | 729.5 | 470.5 | |
| 0.00 | 2.09 | 0.00 | 1.34 | -14.53 | 263.97 | -35.83 | 117.25 | 0.6397 | -570.0 | -528.2 | |
| 0.00 | 2.63 | 0.00 | 1.69 | -13.89 | 264.05 | -35.75 | 116.37 | 0.6353 | -804.0 | -640.0 | |
| 0.00 | 1.82 | 0.00 | 1.16 | -12.97 | 264.17 | -35.63 | 115.09 | 0.6291 | -694.0 | -570.8 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -9.25 | 264.66 | -35.14 | 109.66 | 0.6055 | 573.0 | 480.1 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -9.38 | 264.49 | -35.31 | 109.78 | 0.6082 | 515.0 | 449.4 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -14.48 | 263.71 | -36.09 | 117.01 | 0.6425 | -735.0 | -561.3 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -14.10 | 263.66 | -36.14 | 116.44 | 0.6411 | -746.0 | -585.0 | |
| 1.36 | 4.27 | 0.88 | 2.76 | -14.39 | 263.45 | -36.35 | 116.74 | 0.6451 | -748.8 | -564.8 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -14.68 | 263.31 | -36.49 | 117.07 | 0.6483 | -488.0 | -314.3 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -14.49 | 263.23 | -36.57 | 116.76 | 0.6482 | -429.0 | -383.1 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -13.60 | 262.34 | -37.46 | 114.98 | 0.6544 | -509.0 | -444.6 | |
| 0.00 | 1.91 | 0.00 | 1.22 | -8.97 | 262.51 | -37.29 | 108.23 | 0.6323 | -708.0 | -569.0 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -9.17 | 262.37 | -37.43 | 108.46 | 0.6349 | -530.0 | -462.7 | |
| 0.00 | 3.63 | 0.00 | 2.34 | -8.75 | 261.87 | -37.93 | 107.61 | 0.6397 | -539.0 | -507.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
