SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.65 | 310.35 | 47.71 | 204.71 | 15.16 | 259.81 | -39.99 | 70.18 | 0.6610 | -293.2 | -129.3 | |
|
previous
or next observation for the same group /

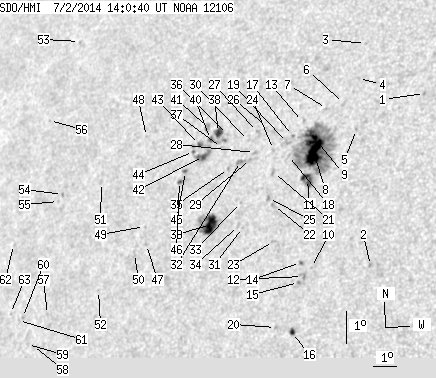

back to the solar disc SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.95 | 17.79 | 265.65 | -34.15 | 63.74 | 0.5982 | -750.0 | -640.2 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 12.39 | 264.58 | -35.22 | 73.00 | 0.5913 | -681.0 | -600.0 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 19.31 | 262.95 | -36.85 | 62.83 | 0.6384 | -490.0 | -392.5 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 18.19 | 262.95 | -36.85 | 64.49 | 0.6335 | -676.0 | -540.6 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 16.59 | 263.25 | -36.55 | 66.80 | 0.6232 | 439.0 | 391.8 | |
| 0.00 | 2.09 | 0.00 | 1.34 | 17.39 | 262.54 | -37.26 | 65.89 | 0.6352 | -521.0 | -495.2 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 17.21 | 261.90 | -37.90 | 66.44 | 0.6424 | -683.0 | -563.5 | |
| 29.70 | 161.85 | 19.10 | 104.07 | 15.85 | 261.69 | -38.11 | 68.57 | 0.6400 | -1033.5 | -392.7 | |
| 5.00 | -8.00 | 3.22 | -8.00 | 16.32 | 261.58 | -38.22 | 67.91 | 0.6430 | -735.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 12.26 | 262.31 | -37.49 | 73.94 | 0.6212 | -802.0 | -668.9 | |
| 7.63 | -8.00 | 4.90 | -8.00 | 14.97 | 261.64 | -38.16 | 69.93 | 0.6378 | -892.4 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.13 | 11.97 | 262.00 | -37.80 | 74.49 | 0.6245 | -647.0 | -648.6 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 16.78 | 261.03 | -38.77 | 67.45 | 0.6515 | -224.0 | -223.6 | |
| 0.36 | 1.18 | 0.23 | 0.75 | 12.40 | 261.85 | -37.95 | 73.85 | 0.6276 | -691.8 | -600.2 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 11.78 | 261.87 | -37.93 | 74.82 | 0.6257 | -697.0 | -649.2 | |
| 2.09 | 3.45 | 1.32 | 2.18 | 10.24 | 261.87 | -37.93 | 77.27 | 0.6224 | -676.0 | -535.7 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 16.33 | 260.73 | -39.07 | 68.23 | 0.6536 | -322.0 | -157.7 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 15.70 | 260.71 | -39.09 | 69.18 | 0.6517 | -364.0 | -195.4 | |
| 0.00 | 2.63 | 0.00 | 1.72 | 16.10 | 260.57 | -39.23 | 68.62 | 0.6547 | -46.0 | -32.1 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 10.37 | 261.17 | -38.63 | 77.22 | 0.6319 | -589.0 | -454.5 | |
| 0.00 | 2.09 | 0.00 | 1.37 | 15.15 | 260.22 | -39.58 | 70.17 | 0.6561 | -520.0 | -472.7 | |
| 0.00 | 2.45 | 0.00 | 1.60 | 14.13 | 260.44 | -39.36 | 71.63 | 0.6504 | -619.0 | -444.3 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 13.01 | 260.65 | -39.15 | 73.25 | 0.6446 | -538.0 | -501.1 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 15.86 | 260.05 | -39.75 | 69.16 | 0.6604 | -67.0 | -57.1 | |
| 0.00 | 1.82 | 0.00 | 1.19 | 14.34 | 260.19 | -39.61 | 71.39 | 0.6541 | -619.0 | -533.5 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 16.57 | 259.59 | -40.21 | 68.29 | 0.6683 | 529.0 | 483.3 | |
| 0.00 | 2.00 | 0.00 | 1.33 | 16.41 | 259.25 | -40.55 | 68.65 | 0.6718 | 767.0 | 592.1 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 15.75 | 259.29 | -40.51 | 69.60 | 0.6693 | 481.0 | 404.1 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 15.52 | 259.18 | -40.62 | 69.96 | 0.6700 | 290.0 | 358.6 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 16.11 | 258.95 | -40.85 | 69.18 | 0.6746 | 530.0 | 492.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 13.40 | 259.31 | -40.49 | 73.04 | 0.6626 | -599.0 | -528.3 | |
| 0.00 | 4.36 | 0.00 | 2.92 | 15.45 | 258.78 | -41.02 | 70.20 | 0.6747 | 804.0 | 668.8 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 14.18 | 259.07 | -40.73 | 71.97 | 0.6676 | 637.0 | 526.7 | |
| 0.00 | 2.18 | 0.00 | 1.44 | 13.46 | 259.13 | -40.67 | 73.01 | 0.6650 | -341.0 | -304.3 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 15.21 | 258.33 | -41.47 | 70.68 | 0.6795 | 636.0 | 551.5 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 16.27 | 258.02 | -41.78 | 69.26 | 0.6862 | 576.0 | 469.6 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 15.86 | 257.87 | -41.93 | 69.90 | 0.6868 | 787.0 | 659.0 | |
| 4.90 | 16.44 | 3.35 | 11.23 | 16.32 | 257.62 | -42.18 | 69.32 | 0.6911 | 731.5 | 590.5 | |
| 15.62 | 31.06 | 10.52 | 20.95 | 13.45 | 257.96 | -41.84 | 73.33 | 0.6794 | -857.1 | -201.6 | |
| 1.45 | -38.00 | 1.00 | -38.00 | 16.09 | 257.34 | -42.46 | 69.74 | 0.6938 | 811.2 | 999999 | |
| 0.00 | 4.27 | 0.00 | 2.94 | 16.46 | 257.11 | -42.69 | 69.29 | 0.6975 | 597.0 | 469.6 | |
| 2.63 | 20.80 | 1.81 | 14.30 | 15.55 | 257.17 | -42.63 | 70.55 | 0.6942 | 859.8 | 635.4 | |
| 1.09 | -42.00 | 0.75 | -42.00 | 15.92 | 256.91 | -42.89 | 70.11 | 0.6984 | 731.0 | 999999 | |
| 0.45 | -42.00 | 0.31 | -42.00 | 15.69 | 256.70 | -43.10 | 70.48 | 0.7001 | 571.8 | 999999 | |
| 0.64 | 1.91 | 0.44 | 1.32 | 15.06 | 256.52 | -43.28 | 71.42 | 0.7007 | 794.1 | 672.4 | |
| 1.09 | 3.91 | 0.76 | 2.70 | 14.74 | 256.34 | -43.46 | 71.92 | 0.7021 | 767.7 | 687.5 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 12.74 | 255.36 | -44.44 | 74.95 | 0.7094 | -692.0 | -560.0 | |
| 0.00 | 0.73 | 0.00 | 0.52 | 16.09 | 254.51 | -45.29 | 70.55 | 0.7265 | -455.0 | -443.1 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 13.29 | 255.15 | -44.65 | 74.22 | 0.7130 | -577.0 | -520.0 | |
| 0.00 | 2.91 | 0.00 | 2.05 | 12.45 | 254.90 | -44.90 | 75.45 | 0.7144 | -332.0 | -218.7 | |
| 0.00 | 2.00 | 0.00 | 1.47 | 14.59 | 252.88 | -46.92 | 72.96 | 0.7417 | 66.0 | 157.1 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 11.25 | 253.55 | -46.25 | 77.34 | 0.7285 | 509.0 | 461.6 | |
| 0.00 | 0.82 | 0.00 | 0.64 | 18.95 | 250.35 | -49.45 | 67.90 | 0.7779 | 561.0 | 457.3 | |
| 0.00 | 1.18 | 0.00 | 0.90 | 14.15 | 251.17 | -48.63 | 73.88 | 0.7598 | 550.0 | 472.5 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 13.92 | 251.04 | -48.76 | 74.19 | 0.7608 | 449.0 | 392.2 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 16.42 | 249.81 | -49.99 | 71.22 | 0.7782 | 614.0 | 532.5 | |
| 0.00 | 1.27 | 0.00 | 0.95 | 10.43 | 251.37 | -48.43 | 78.74 | 0.7525 | 188.0 | 224.2 | |
| 0.00 | 0.82 | 0.00 | 0.62 | 9.46 | 250.86 | -48.94 | 80.09 | 0.7573 | 520.0 | 405.4 | |
| 0.00 | 0.64 | 0.00 | 0.48 | 9.48 | 250.62 | -49.18 | 80.08 | 0.7601 | 486.0 | 446.7 | |
| 0.00 | 1.09 | 0.00 | 0.84 | 10.29 | 250.21 | -49.59 | 79.05 | 0.7653 | 647.0 | 523.9 | |
| 0.00 | 0.73 | 0.00 | 0.56 | 10.19 | 250.04 | -49.76 | 79.20 | 0.7671 | 399.0 | 323.4 | |
| 0.00 | 0.64 | 0.00 | 0.50 | 12.52 | 249.24 | -50.56 | 76.30 | 0.7783 | 300.0 | 304.3 | |
| 0.00 | 0.36 | 0.00 | 0.28 | 10.39 | 249.61 | -50.19 | 78.99 | 0.7720 | 360.0 | 333.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
