SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 12.26 | 0.59 | 16.94 | -16.19 | 232.72 | -67.08 | 108.62 | 0.9348 | 60.1 | -192.0 | |
|
previous
or next observation for the same group /

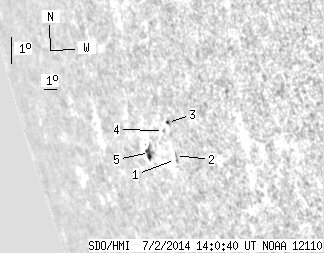

back to the solar disc SDO HMI 2014-07-02 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 1.19 | -16.50 | 234.03 | -65.77 | 109.19 | 0.9274 | 201.0 | 285.1 | |
| 0.00 | 1.09 | 0.00 | 1.42 | -16.37 | 234.12 | -65.68 | 109.06 | 0.9267 | 321.0 | 271.2 | |
| 0.45 | 1.54 | 0.59 | 1.99 | -15.31 | 234.17 | -65.63 | 107.95 | 0.9251 | 258.8 | 189.0 | |
| 0.00 | 1.09 | 0.00 | 1.44 | -15.59 | 233.69 | -66.11 | 108.16 | 0.9285 | 151.0 | 100.4 | |
| 0.00 | 7.63 | 0.00 | 10.90 | -16.37 | 232.00 | -67.80 | 108.69 | 0.9393 | -550.0 | -392.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
