SDO HMI 2014-07-02 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.79 | 152.38 | 17.00 | 76.97 | 10.99 | 306.67 | 7.42 | 318.20 | 0.1941 | 266.7 | 373.8 | |
|
previous
or next observation for the same group /

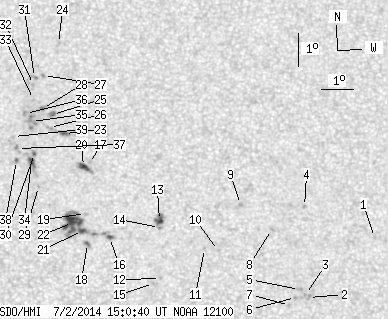

back to the solar disc SDO HMI 2014-07-02 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | 9.39 | 315.51 | 16.26 | 292.27 | 0.2998 | -699.0 | -562.7 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 7.59 | 313.32 | 14.08 | 288.63 | 0.2555 | -749.0 | -701.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 7.68 | 313.23 | 13.98 | 289.08 | 0.2545 | -997.0 | -831.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 10.38 | 313.31 | 14.06 | 298.48 | 0.2731 | -939.0 | -726.8 | |
| 0.00 | 2.91 | 0.00 | 1.49 | 7.84 | 313.05 | 13.80 | 289.89 | 0.2524 | -891.0 | -753.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 7.59 | 312.91 | 13.66 | 289.14 | 0.2490 | -1107.0 | -826.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 7.35 | 312.71 | 13.47 | 288.44 | 0.2445 | -818.0 | -677.1 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 9.68 | 312.23 | 12.98 | 297.94 | 0.2518 | -836.0 | -655.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 10.46 | 311.28 | 12.03 | 302.53 | 0.2442 | -909.0 | -762.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.06 | 310.53 | 11.28 | 298.81 | 0.2215 | -830.0 | -699.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 9.13 | 310.09 | 10.85 | 300.02 | 0.2155 | -916.0 | -743.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 8.22 | 308.69 | 9.44 | 299.39 | 0.1872 | -789.0 | -640.4 | |
| 3.91 | 8.72 | 1.98 | 4.41 | 10.00 | 308.71 | 9.46 | 307.07 | 0.2038 | -1141.7 | -790.0 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 9.78 | 308.70 | 9.45 | 306.22 | 0.2016 | -1068.0 | -778.6 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 8.07 | 308.47 | 9.22 | 299.23 | 0.1826 | -901.0 | -660.5 | |
| 1.18 | 5.90 | 0.59 | 2.97 | 9.49 | 307.13 | 7.88 | 309.94 | 0.1772 | 913.3 | 623.9 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 11.77 | 306.56 | 7.32 | 320.75 | 0.1980 | 358.0 | 59.7 | |
| 0.82 | 3.63 | 0.41 | 1.82 | 9.31 | 306.44 | 7.19 | 311.70 | 0.1663 | 961.3 | 578.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.23 | 306.40 | 7.15 | 315.81 | 0.1766 | 770.0 | 594.6 | |
| 4.00 | 8.54 | 2.02 | 4.31 | 11.68 | 306.37 | 7.13 | 321.19 | 0.1947 | -1084.2 | -665.4 | |
| 2.09 | 43.41 | 1.05 | 21.82 | 9.71 | 306.29 | 7.05 | 314.06 | 0.1690 | 1095.3 | 794.3 | |
| 16.80 | -21.00 | 8.44 | -21.00 | 9.96 | 305.99 | 6.74 | 316.37 | 0.1683 | 1171.7 | 999999 | |
| 1.27 | 5.54 | 0.64 | 2.80 | 12.70 | 305.80 | 6.56 | 326.54 | 0.2030 | 1045.6 | 743.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.50 | 305.70 | 6.45 | 333.42 | 0.2431 | 834.0 | 594.0 | |
| 0.00 | 4.09 | 0.00 | 2.07 | 13.29 | 305.44 | 6.20 | 329.55 | 0.2082 | 851.0 | 707.0 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 12.89 | 305.34 | 6.09 | 328.95 | 0.2015 | 797.0 | 745.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.51 | 305.19 | 5.95 | 333.31 | 0.2243 | 893.0 | 786.6 | |
| 0.36 | 3.09 | 0.18 | 1.56 | 13.48 | 305.13 | 5.89 | 331.27 | 0.2084 | 989.5 | 766.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.07 | 304.95 | 5.70 | 325.21 | 0.1718 | 893.0 | 754.7 | |
| 0.64 | 13.62 | 0.32 | 6.86 | 12.09 | 304.85 | 5.60 | 328.86 | 0.1854 | 913.7 | 774.7 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 14.45 | 304.91 | 5.66 | 334.30 | 0.2212 | 887.0 | 752.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.23 | 304.87 | 5.62 | 334.00 | 0.2176 | 772.0 | 727.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.76 | 304.86 | 5.61 | 333.04 | 0.2104 | 787.0 | 603.3 | |
| 2.72 | -30.00 | 1.37 | -30.00 | 11.85 | 304.75 | 5.50 | 328.60 | 0.1809 | 1123.2 | 999999 | |
| 0.00 | 10.35 | 0.00 | 5.23 | 13.08 | 304.78 | 5.53 | 331.79 | 0.1995 | 952.0 | 874.0 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 13.33 | 304.59 | 5.35 | 333.17 | 0.2018 | 814.0 | 791.2 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 12.25 | 304.32 | 5.07 | 331.73 | 0.1833 | 1006.0 | 866.8 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 11.88 | 304.28 | 5.03 | 330.90 | 0.1774 | 1168.0 | 1014.7 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.62 | 304.20 | 4.96 | 333.22 | 0.1880 | 668.0 | 503.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
