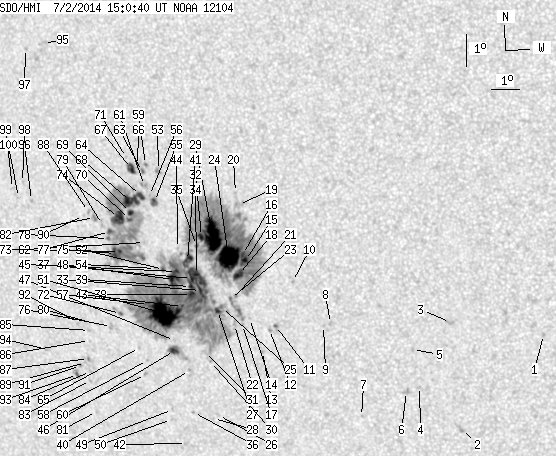

SDO HMI 2014-07-02 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 249.81 | 1373.68 | 149.51 | 822.51 | -10.94 | 267.92 | -31.33 | 114.64 | 0.5638 | 349.5 | 185.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.94 | -12.73 | 280.23 | -19.02 | 130.20 | 0.4178 | 864.0 | 723.0 | |
| 0.00 | 3.36 | 0.00 | 1.90 | -15.82 | 277.17 | -22.07 | 131.43 | 0.4842 | 771.0 | 665.2 | |
| 0.00 | 3.72 | 0.00 | 2.07 | -12.41 | 277.16 | -22.09 | 125.52 | 0.4531 | 716.0 | 589.4 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -14.46 | 275.89 | -23.36 | 127.66 | 0.4868 | 703.0 | 429.7 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -13.29 | 275.78 | -23.47 | 125.51 | 0.4780 | 597.0 | 479.6 | |
| 0.00 | 3.63 | 0.00 | 2.07 | -14.63 | 275.42 | -23.82 | 127.41 | 0.4939 | 633.0 | 569.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -15.47 | 273.76 | -25.49 | 126.96 | 0.5212 | 691.0 | 555.8 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -12.52 | 273.03 | -26.21 | 121.35 | 0.5069 | 805.0 | 674.9 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -12.59 | 272.78 | -26.46 | 121.23 | 0.5106 | 700.0 | 531.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -11.23 | 271.85 | -27.40 | 118.03 | 0.5134 | 827.0 | 676.9 | |
| 0.54 | 2.63 | 0.32 | 1.54 | -12.63 | 271.09 | -28.16 | 119.80 | 0.5327 | 976.3 | 771.0 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -12.77 | 270.86 | -28.39 | 119.82 | 0.5366 | 696.0 | 630.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -13.47 | 270.52 | -28.73 | 120.70 | 0.5457 | 428.0 | 445.1 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -12.44 | 270.19 | -29.06 | 118.73 | 0.5430 | 761.0 | 641.3 | |
| 2.72 | 445.09 | 1.59 | 261.01 | -10.61 | 270.25 | -28.99 | 115.68 | 0.5307 | 1345.3 | 474.6 | |
| 2.45 | -15.00 | 1.43 | -15.00 | -10.42 | 270.17 | -29.08 | 115.29 | 0.5308 | 1283.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -12.63 | 269.91 | -29.34 | 118.83 | 0.5478 | 686.0 | 528.4 | |
| 7.72 | -15.00 | 4.53 | -15.00 | -11.06 | 269.96 | -29.29 | 116.23 | 0.5373 | 999.7 | 999999 | |
| 0.00 | 7.27 | 0.00 | 4.21 | -8.86 | 270.18 | -29.07 | 112.54 | 0.5218 | 109.0 | 53.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -8.49 | 270.10 | -29.14 | 111.82 | 0.5209 | -318.0 | -227.3 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -11.72 | 269.77 | -29.47 | 117.21 | 0.5438 | 834.0 | 684.3 | |
| 0.00 | 3.27 | 0.00 | 1.94 | -12.64 | 269.62 | -29.62 | 118.62 | 0.5516 | 837.0 | 622.1 | |
| 0.54 | 11.53 | 0.32 | 6.81 | -11.82 | 269.58 | -29.67 | 117.23 | 0.5469 | 814.0 | 711.4 | |
| 38.96 | -15.00 | 22.86 | -15.00 | -10.53 | 269.66 | -29.59 | 115.11 | 0.5382 | 1231.0 | 999999 | |
| 0.27 | 554.98 | 0.16 | 334.95 | -12.11 | 269.22 | -30.03 | 117.45 | 0.5534 | 982.3 | -97.6 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -15.57 | 268.61 | -30.64 | 122.40 | 0.5837 | 753.0 | 579.8 | |
| 2.54 | -25.00 | 1.51 | -25.00 | -12.21 | 269.06 | -30.18 | 117.49 | 0.5560 | 851.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -15.67 | 268.40 | -30.84 | 122.39 | 0.5868 | 508.0 | 359.5 | |
| 37.05 | -15.00 | 21.79 | -15.00 | -9.85 | 269.16 | -30.09 | 113.60 | 0.5411 | 1209.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -13.84 | 268.58 | -30.66 | 119.74 | 0.5724 | -773.0 | -602.6 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -13.56 | 268.41 | -30.84 | 119.16 | 0.5728 | -690.0 | -609.2 | |
| 3.36 | -15.00 | 1.99 | -15.00 | -9.90 | 268.76 | -30.49 | 113.40 | 0.5467 | 709.4 | 999999 | |
| 2.45 | -25.00 | 1.46 | -25.00 | -11.60 | 268.53 | -30.72 | 116.09 | 0.5593 | 674.3 | 999999 | |
| 2.00 | -25.00 | 1.19 | -25.00 | -11.10 | 268.44 | -30.80 | 115.20 | 0.5575 | 971.1 | 999999 | |
| 1.00 | -15.00 | 0.59 | -15.00 | -10.18 | 268.55 | -30.70 | 113.75 | 0.5511 | 602.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -15.49 | 267.69 | -31.55 | 121.58 | 0.5941 | 638.0 | 571.9 | |
| 2.00 | -25.00 | 1.19 | -25.00 | -11.23 | 268.25 | -31.00 | 115.29 | 0.5609 | 777.0 | 999999 | |
| 4.99 | -25.00 | 2.99 | -25.00 | -11.73 | 268.18 | -31.06 | 116.07 | 0.5646 | 7.5 | 999999 | |
| 1.54 | -25.00 | 0.92 | -25.00 | -11.48 | 268.18 | -31.07 | 115.66 | 0.5632 | -300.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -14.15 | 267.77 | -31.48 | 119.60 | 0.5845 | -886.0 | -739.3 | |
| 8.81 | -25.00 | 5.25 | -25.00 | -10.66 | 268.17 | -31.08 | 114.30 | 0.5588 | 706.7 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.52 | -16.51 | 267.25 | -32.00 | 122.73 | 0.6061 | 263.0 | 269.1 | |
| 0.27 | -25.00 | 0.16 | -25.00 | -12.12 | 267.80 | -31.44 | 116.43 | 0.5717 | -1171.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -10.30 | 267.85 | -31.40 | 113.48 | 0.5610 | 428.0 | 326.1 | |
| 3.63 | -25.00 | 2.18 | -25.00 | -11.02 | 267.72 | -31.52 | 114.60 | 0.5665 | -305.6 | 999999 | |
| 5.72 | 16.62 | 3.49 | 10.13 | -13.53 | 267.31 | -31.94 | 118.30 | 0.5863 | -800.6 | -168.1 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -13.21 | 267.36 | -31.89 | 117.84 | 0.5838 | -745.0 | -517.5 | |
| 10.63 | -25.00 | 6.39 | -25.00 | -11.28 | 267.58 | -31.66 | 114.92 | 0.5698 | 536.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -15.42 | 266.92 | -32.32 | 120.89 | 0.6029 | 528.0 | 459.2 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -15.74 | 266.83 | -32.42 | 121.30 | 0.6061 | 637.0 | 468.5 | |
| 50.86 | -25.00 | 30.94 | -25.00 | -12.36 | 267.07 | -32.17 | 116.32 | 0.5825 | -1092.4 | 999999 | |
| 1.36 | -25.00 | 0.82 | -25.00 | -10.97 | 267.26 | -31.99 | 114.21 | 0.5724 | 360.5 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.05 | -7.88 | 267.40 | -31.85 | 109.12 | 0.5553 | 916.0 | 744.6 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -10.95 | 266.96 | -32.28 | 113.99 | 0.5761 | -367.0 | -237.9 | |
| 3.09 | 5.54 | 1.85 | 3.32 | -8.85 | 267.16 | -32.08 | 110.64 | 0.5630 | 966.5 | 771.7 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -8.67 | 267.00 | -32.25 | 110.24 | 0.5643 | 868.0 | 765.7 | |
| 2.82 | -25.00 | 1.72 | -25.00 | -12.09 | 266.55 | -32.69 | 115.55 | 0.5876 | -521.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -13.87 | 266.25 | -33.00 | 118.10 | 0.6016 | -706.0 | -562.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -7.70 | 266.94 | -32.31 | 108.57 | 0.5608 | 878.0 | 779.2 | |
| 0.00 | 1.73 | 0.00 | 1.07 | -14.32 | 266.10 | -33.15 | 118.67 | 0.6061 | -763.0 | -674.9 | |
| 0.00 | 3.45 | 0.00 | 2.07 | -8.36 | 266.85 | -32.40 | 109.63 | 0.5650 | 782.0 | 670.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -10.14 | 266.66 | -32.59 | 112.49 | 0.5760 | 126.0 | 104.0 | |
| 0.54 | 2.09 | 0.33 | 1.25 | -7.93 | 266.81 | -32.43 | 108.88 | 0.5636 | 903.2 | 784.2 | |
| 4.00 | 214.24 | 2.40 | 130.39 | -8.68 | 266.67 | -32.58 | 110.07 | 0.5688 | 925.0 | 373.0 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -13.47 | 266.01 | -33.23 | 117.32 | 0.6021 | -547.0 | -453.9 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -7.74 | 266.65 | -32.60 | 108.49 | 0.5650 | 743.0 | 675.0 | |
| 5.81 | 7.81 | 3.49 | 4.70 | -7.84 | 266.42 | -32.83 | 108.54 | 0.5686 | 745.9 | 453.6 | |
| 13.71 | -64.00 | 8.29 | -64.00 | -8.87 | 266.28 | -32.97 | 110.18 | 0.5750 | 882.5 | 999999 | |
| 2.72 | -64.00 | 1.65 | -64.00 | -9.22 | 266.24 | -33.00 | 110.73 | 0.5770 | 1016.7 | 999999 | |
| 1.82 | -64.00 | 1.10 | -64.00 | -9.44 | 266.18 | -33.06 | 111.06 | 0.5789 | 881.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -7.51 | 266.26 | -32.98 | 107.89 | 0.5693 | 532.0 | 432.3 | |
| 0.73 | 4.45 | 0.45 | 2.76 | -12.41 | 265.46 | -33.78 | 115.35 | 0.6031 | -622.5 | -386.4 | |
| 1.36 | -64.00 | 0.83 | -64.00 | -10.45 | 265.69 | -33.55 | 112.42 | 0.5902 | 1022.4 | 999999 | |
| 13.17 | -64.00 | 8.02 | -64.00 | -9.39 | 265.78 | -33.46 | 110.75 | 0.5840 | 813.8 | 999999 | |
| 5.27 | -64.00 | 3.23 | -64.00 | -10.52 | 265.54 | -33.71 | 112.44 | 0.5926 | 762.4 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.81 | -12.83 | 265.06 | -34.19 | 115.74 | 0.6105 | -663.0 | -591.7 | |
| 1.91 | -64.00 | 1.17 | -64.00 | -9.83 | 265.40 | -33.85 | 111.27 | 0.5911 | 855.0 | 999999 | |
| 0.54 | -64.00 | 0.33 | -64.00 | -10.05 | 265.33 | -33.92 | 111.58 | 0.5930 | 759.2 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.06 | -9.62 | 265.16 | -34.09 | 110.80 | 0.5933 | 376.0 | 412.4 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -12.78 | 264.53 | -34.71 | 115.35 | 0.6168 | -560.0 | -474.2 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -15.57 | 264.00 | -35.25 | 119.10 | 0.6386 | -646.0 | -594.6 | |
| 0.00 | 3.63 | 0.00 | 2.24 | -9.41 | 264.88 | -34.36 | 110.32 | 0.5960 | 725.0 | 574.9 | |
| 0.00 | 1.82 | 0.00 | 1.16 | -14.58 | 263.95 | -35.29 | 117.65 | 0.6335 | -594.0 | -572.1 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -14.29 | 264.01 | -35.24 | 117.26 | 0.6313 | -770.0 | -626.5 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -12.98 | 264.20 | -35.05 | 115.45 | 0.6220 | -732.0 | -545.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -13.30 | 264.14 | -35.10 | 115.89 | 0.6243 | -454.0 | -443.8 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -13.88 | 264.00 | -35.24 | 116.66 | 0.6291 | -705.0 | -649.9 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -9.23 | 264.68 | -34.57 | 109.92 | 0.5979 | 570.0 | 513.4 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -14.01 | 263.87 | -35.38 | 116.76 | 0.6314 | -619.0 | -517.2 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -9.36 | 264.48 | -34.77 | 110.03 | 0.6011 | 566.0 | 397.8 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -14.11 | 263.65 | -35.59 | 116.79 | 0.6346 | -725.0 | -607.3 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -12.74 | 263.81 | -35.43 | 114.86 | 0.6255 | -61.0 | -162.3 | |
| 0.91 | 3.91 | 0.58 | 2.51 | -14.40 | 263.48 | -35.76 | 117.11 | 0.6382 | -714.0 | -556.9 | |
| 0.00 | 2.36 | 0.00 | 1.53 | -13.64 | 262.41 | -36.83 | 115.38 | 0.6471 | -550.0 | -434.2 | |
| 0.00 | 3.63 | 0.00 | 2.24 | -4.08 | 263.42 | -35.83 | 101.00 | 0.5970 | 43.0 | 184.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -8.95 | 262.54 | -36.71 | 108.46 | 0.6247 | -661.0 | -540.4 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -4.25 | 262.73 | -36.52 | 101.08 | 0.6069 | 610.0 | 549.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -8.40 | 262.26 | -36.99 | 107.49 | 0.6263 | -644.0 | -554.6 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -8.88 | 262.05 | -37.20 | 108.12 | 0.6308 | -540.0 | -470.9 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -8.60 | 261.85 | -37.40 | 107.62 | 0.6323 | -644.0 | -563.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
