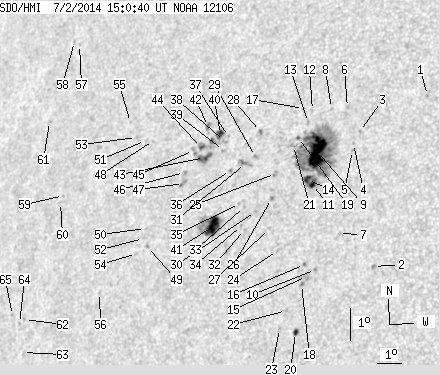

SDO HMI 2014-07-02 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.38 | 323.71 | 44.58 | 211.48 | 15.16 | 259.93 | -39.31 | 69.97 | 0.6526 | -317.9 | -157.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.61 | 17.78 | 265.65 | -33.60 | 63.46 | 0.5912 | -773.0 | -648.1 | |
| 0.00 | 2.09 | 0.00 | 1.27 | 12.40 | 264.56 | -34.69 | 72.78 | 0.5841 | -651.0 | -559.3 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 16.58 | 263.25 | -35.99 | 66.57 | 0.6161 | 553.0 | 334.9 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 16.19 | 263.10 | -36.15 | 67.23 | 0.6165 | -461.0 | -364.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 15.98 | 263.11 | -36.14 | 67.57 | 0.6156 | -613.0 | -553.2 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 17.31 | 262.61 | -36.63 | 65.73 | 0.6271 | -663.0 | -574.8 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 13.38 | 263.05 | -36.19 | 71.72 | 0.6072 | -506.0 | -444.5 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 17.26 | 261.99 | -37.26 | 66.09 | 0.6347 | -636.0 | -446.5 | |
| 32.24 | 171.55 | 20.58 | 109.49 | 15.90 | 261.73 | -37.51 | 68.26 | 0.6327 | -1063.3 | -412.1 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 12.25 | 262.35 | -36.90 | 73.78 | 0.6133 | -707.0 | -578.4 | |
| 2.91 | -9.00 | 1.85 | -9.00 | 14.87 | 261.75 | -37.50 | 69.85 | 0.6289 | -943.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 17.18 | 261.24 | -38.01 | 66.54 | 0.6436 | -440.0 | -380.7 | |
| 0.00 | 1.82 | 0.00 | 1.17 | 16.80 | 261.17 | -38.08 | 67.14 | 0.6430 | -461.0 | -349.2 | |
| 3.27 | -9.00 | 2.09 | -9.00 | 15.02 | 261.52 | -37.73 | 69.70 | 0.6324 | -743.8 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.62 | 12.02 | 262.03 | -37.21 | 74.24 | 0.6169 | -797.0 | -647.4 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 12.39 | 261.89 | -37.35 | 73.69 | 0.6197 | -662.0 | -632.9 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 17.23 | 260.86 | -38.39 | 66.62 | 0.6484 | -505.0 | -407.1 | |
| 0.00 | 1.82 | 0.00 | 1.14 | 11.77 | 261.88 | -37.37 | 74.69 | 0.6183 | -649.0 | -582.5 | |
| 0.54 | -9.00 | 0.35 | -9.00 | 16.32 | 260.87 | -38.37 | 67.98 | 0.6449 | -332.7 | 999999 | |
| 1.91 | 3.27 | 1.20 | 2.05 | 10.29 | 261.86 | -37.39 | 77.07 | 0.6152 | -659.2 | -530.8 | |
| 0.00 | 3.54 | 0.00 | 2.29 | 16.06 | 260.73 | -38.52 | 68.42 | 0.6458 | -123.0 | -54.7 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 10.95 | 261.41 | -37.84 | 76.11 | 0.6226 | -631.0 | -515.3 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 10.39 | 261.22 | -38.03 | 77.05 | 0.6240 | -546.0 | -415.9 | |
| 0.00 | 1.82 | 0.00 | 1.16 | 12.79 | 260.75 | -38.49 | 73.41 | 0.6356 | -692.0 | -617.1 | |
| 0.00 | 2.82 | 0.00 | 1.83 | 15.17 | 260.20 | -39.05 | 69.96 | 0.6495 | -586.0 | -457.0 | |
| 0.00 | 2.00 | 0.00 | 1.29 | 14.39 | 260.20 | -39.05 | 71.13 | 0.6471 | -707.0 | -541.1 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 13.45 | 260.31 | -38.94 | 72.52 | 0.6431 | -611.0 | -490.1 | |
| 0.00 | 1.91 | 0.00 | 1.26 | 16.46 | 259.28 | -39.97 | 68.38 | 0.6650 | 815.0 | 686.5 | |
| 0.00 | 1.54 | 0.00 | 1.02 | 15.67 | 259.26 | -39.99 | 69.54 | 0.6627 | 560.0 | 484.9 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 13.96 | 259.64 | -39.61 | 71.95 | 0.6530 | 716.0 | 582.2 | |
| 0.00 | 5.63 | 0.00 | 3.73 | 15.44 | 258.90 | -40.35 | 70.00 | 0.6664 | 762.0 | 676.2 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 13.39 | 259.30 | -39.95 | 72.91 | 0.6557 | -636.0 | -543.8 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 14.10 | 259.15 | -40.09 | 71.89 | 0.6594 | 622.0 | 560.2 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 13.51 | 259.15 | -40.09 | 72.77 | 0.6579 | -358.0 | -308.0 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 14.19 | 258.93 | -40.32 | 71.83 | 0.6625 | 569.0 | 517.7 | |
| 0.00 | 1.63 | 0.00 | 1.09 | 15.20 | 258.33 | -40.92 | 70.53 | 0.6727 | 741.0 | 552.5 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 16.26 | 257.99 | -41.26 | 69.11 | 0.6799 | 568.0 | 451.0 | |
| 0.00 | 2.54 | 0.00 | 1.72 | 16.10 | 257.86 | -41.39 | 69.39 | 0.6810 | 804.0 | 643.3 | |
| 0.00 | 1.91 | 0.00 | 1.28 | 15.81 | 257.89 | -41.36 | 69.78 | 0.6798 | 737.0 | 546.5 | |
| 3.72 | 18.16 | 2.52 | 12.35 | 16.31 | 257.63 | -41.61 | 69.16 | 0.6843 | 796.7 | 653.3 | |
| 16.89 | 36.15 | 11.28 | 24.18 | 13.44 | 257.97 | -41.28 | 73.21 | 0.6726 | -860.2 | -124.1 | |
| 0.00 | 3.91 | 0.00 | 2.67 | 16.54 | 257.06 | -42.19 | 69.02 | 0.6918 | 609.0 | 502.2 | |
| 5.36 | 9.35 | 3.65 | 6.37 | 15.57 | 257.14 | -42.11 | 70.37 | 0.6881 | 806.7 | 705.7 | |
| 1.54 | -40.00 | 1.06 | -40.00 | 15.88 | 256.93 | -42.32 | 69.99 | 0.6914 | 757.9 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.50 | 15.77 | 256.61 | -42.63 | 70.24 | 0.6949 | 447.0 | 467.5 | |
| 0.00 | 1.73 | 0.00 | 1.19 | 15.07 | 256.40 | -42.84 | 71.28 | 0.6956 | 738.0 | 672.4 | |
| 0.00 | 4.00 | 0.00 | 2.74 | 14.73 | 256.44 | -42.80 | 71.76 | 0.6942 | 908.0 | 795.1 | |
| 0.00 | 0.54 | 0.00 | 0.39 | 16.02 | 254.79 | -44.46 | 70.41 | 0.7168 | -645.0 | -563.0 | |
| 0.00 | 1.45 | 0.00 | 1.01 | 12.73 | 255.34 | -43.90 | 74.85 | 0.7030 | -673.0 | -568.9 | |
| 0.00 | 0.73 | 0.00 | 0.51 | 13.28 | 255.13 | -44.11 | 74.12 | 0.7066 | -615.0 | -461.0 | |
| 0.00 | 0.73 | 0.00 | 0.52 | 16.01 | 254.44 | -44.81 | 70.53 | 0.7208 | -540.0 | -496.5 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 12.97 | 255.12 | -44.13 | 74.56 | 0.7062 | -541.0 | -414.4 | |
| 0.00 | 1.54 | 0.00 | 1.11 | 16.09 | 254.01 | -45.24 | 70.53 | 0.7259 | -614.0 | -469.8 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 12.50 | 254.91 | -44.33 | 75.27 | 0.7077 | -290.0 | -326.6 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 16.55 | 253.60 | -45.65 | 70.02 | 0.7316 | 410.0 | 314.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 11.24 | 253.54 | -45.71 | 77.27 | 0.7220 | 532.0 | 408.7 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 18.90 | 250.37 | -48.88 | 67.80 | 0.7720 | 563.0 | 468.1 | |
| 0.00 | 0.91 | 0.00 | 0.71 | 18.99 | 250.09 | -49.16 | 67.77 | 0.7751 | 446.0 | 416.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | 14.17 | 251.18 | -48.06 | 73.74 | 0.7536 | 505.0 | 483.3 | |
| 0.00 | 1.18 | 0.00 | 0.89 | 13.95 | 251.10 | -48.14 | 74.05 | 0.7541 | 462.0 | 419.5 | |
| 0.00 | 1.18 | 0.00 | 0.92 | 16.44 | 249.80 | -49.45 | 71.08 | 0.7726 | 635.0 | 533.0 | |
| 0.00 | 1.18 | 0.00 | 0.89 | 10.29 | 250.29 | -48.96 | 78.99 | 0.7583 | 518.0 | 487.4 | |
| 0.00 | 0.64 | 0.00 | 0.48 | 9.27 | 250.39 | -48.85 | 80.32 | 0.7562 | 388.0 | 384.3 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 10.16 | 250.08 | -49.17 | 79.19 | 0.7605 | 403.0 | 304.0 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 10.39 | 249.69 | -49.55 | 78.93 | 0.7650 | 396.0 | 330.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
