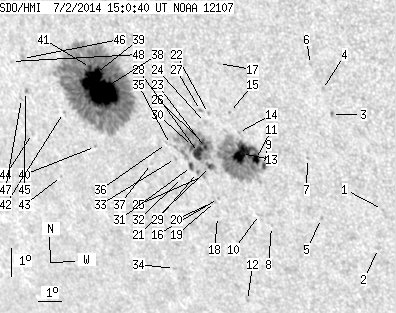

SDO HMI 2014-07-02 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.60 | 744.52 | 83.49 | 534.49 | -19.68 | 258.32 | -40.93 | 121.30 | 0.7238 | 466.2 | 114.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.41 | -22.64 | 267.25 | -32.00 | 131.03 | 0.6506 | 210.0 | 267.6 | |
| 0.00 | 2.09 | 0.00 | 1.38 | -23.98 | 266.72 | -32.53 | 132.26 | 0.6660 | 622.0 | 452.8 | |
| 0.00 | 1.73 | 0.00 | 1.11 | -19.51 | 266.05 | -33.20 | 126.00 | 0.6402 | 818.0 | 670.7 | |
| 0.00 | 2.18 | 0.00 | 1.40 | -18.69 | 265.89 | -33.36 | 124.77 | 0.6364 | 453.0 | 261.4 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -23.02 | 264.72 | -34.52 | 129.53 | 0.6785 | 683.0 | 568.8 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -17.88 | 265.60 | -33.65 | 123.45 | 0.6342 | 639.0 | 535.5 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -21.00 | 264.73 | -34.52 | 126.98 | 0.6645 | 587.0 | 452.1 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -23.36 | 262.57 | -36.67 | 128.40 | 0.7020 | -574.0 | -463.6 | |
| 1.82 | 237.76 | 1.23 | 164.58 | -21.29 | 262.88 | -36.37 | 126.05 | 0.6856 | 814.6 | -142.0 | |
| 0.00 | 2.27 | 0.00 | 1.58 | -22.96 | 262.20 | -37.04 | 127.67 | 0.7031 | -502.0 | -454.6 | |
| 4.81 | -9.00 | 3.27 | -9.00 | -21.10 | 262.61 | -36.64 | 125.62 | 0.6872 | 927.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -25.96 | 260.62 | -38.62 | 130.19 | 0.7370 | -563.0 | -462.2 | |
| 17.62 | -9.00 | 12.05 | -9.00 | -20.92 | 262.09 | -37.16 | 125.05 | 0.6914 | 854.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -20.22 | 262.17 | -37.08 | 124.20 | 0.6864 | 554.0 | 519.5 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -19.57 | 261.98 | -37.27 | 123.24 | 0.6844 | 453.0 | 361.1 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -22.47 | 260.64 | -38.60 | 126.06 | 0.7154 | -707.0 | -673.5 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -17.96 | 261.95 | -37.29 | 121.11 | 0.6754 | 598.0 | 539.6 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -23.09 | 260.39 | -38.85 | 126.65 | 0.7216 | -551.0 | -398.5 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -22.58 | 260.48 | -38.77 | 126.08 | 0.7177 | -424.0 | -464.9 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -22.62 | 260.30 | -38.95 | 126.02 | 0.7197 | -587.0 | -551.2 | |
| 1.91 | -9.00 | 1.34 | -9.00 | -21.40 | 260.66 | -38.59 | 124.74 | 0.7090 | -733.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -19.63 | 261.10 | -38.14 | 122.77 | 0.6941 | -615.0 | -512.5 | |
| 1.36 | -9.00 | 0.95 | -9.00 | -20.77 | 260.64 | -38.60 | 123.94 | 0.7055 | -1036.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.13 | -19.93 | 260.89 | -38.35 | 123.03 | 0.6981 | -69.0 | -134.1 | |
| 0.00 | 2.45 | 0.00 | 1.73 | -21.71 | 260.30 | -38.94 | 124.91 | 0.7144 | -711.0 | -685.4 | |
| 1.36 | -9.00 | 0.95 | -9.00 | -20.61 | 260.57 | -38.68 | 123.68 | 0.7053 | -939.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.19 | -19.54 | 260.80 | -38.45 | 122.47 | 0.6969 | -541.0 | -404.7 | |
| 8.72 | -9.00 | 6.12 | -9.00 | -20.95 | 260.29 | -38.95 | 123.95 | 0.7101 | -899.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -21.62 | 260.04 | -39.21 | 124.63 | 0.7165 | -716.0 | -653.9 | |
| 2.63 | -9.00 | 1.85 | -9.00 | -20.75 | 260.10 | -39.15 | 123.59 | 0.7109 | -800.9 | 999999 | |
| 2.00 | -9.00 | 1.42 | -9.00 | -21.43 | 259.84 | -39.40 | 124.27 | 0.7173 | -565.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -21.81 | 259.33 | -39.92 | 124.44 | 0.7246 | -45.0 | -89.6 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -21.18 | 259.24 | -40.01 | 123.61 | 0.7220 | -334.0 | -245.7 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -24.95 | 257.80 | -41.45 | 127.29 | 0.7566 | -571.0 | -441.1 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -20.72 | 259.18 | -40.07 | 123.00 | 0.7202 | -423.0 | -344.5 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -20.69 | 259.02 | -40.23 | 122.87 | 0.7217 | 211.0 | 178.0 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -21.39 | 258.14 | -41.11 | 123.23 | 0.7342 | 617.0 | 466.3 | |
| 61.30 | 460.62 | 44.79 | 337.18 | -19.03 | 256.69 | -42.56 | 119.53 | 0.7371 | 1007.7 | 268.8 | |
| 10.53 | -38.00 | 7.67 | -38.00 | -18.47 | 256.65 | -42.60 | 118.81 | 0.7350 | 1154.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -20.91 | 255.82 | -43.42 | 121.41 | 0.7546 | 529.0 | 460.7 | |
| 2.54 | -38.00 | 1.85 | -38.00 | -18.28 | 256.49 | -42.76 | 118.49 | 0.7358 | 967.7 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -19.82 | 254.77 | -44.48 | 119.57 | 0.7601 | 474.0 | 350.7 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -21.98 | 253.84 | -45.41 | 121.71 | 0.7785 | -458.0 | -364.7 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -20.58 | 253.04 | -46.20 | 119.68 | 0.7800 | -565.0 | -433.5 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -19.19 | 253.24 | -46.00 | 118.10 | 0.7724 | -732.0 | -678.0 | |
| 0.00 | 4.18 | 0.00 | 3.20 | -18.10 | 253.49 | -45.76 | 116.88 | 0.7657 | -635.0 | -384.0 | |
| 0.00 | 1.63 | 0.00 | 1.28 | -19.43 | 252.97 | -46.28 | 118.27 | 0.7761 | -404.0 | -472.9 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -18.22 | 252.93 | -46.31 | 116.79 | 0.7717 | -472.0 | -408.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
