SDO HMI 2014-07-02 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.23 | 147.91 | 15.74 | 74.80 | 10.98 | 306.47 | 7.77 | 316.68 | 0.1974 | 297.5 | 392.2 | |
|
previous
or next observation for the same group /

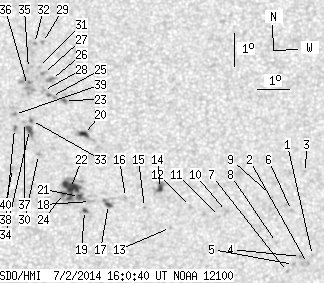

back to the solar disc SDO HMI 2014-07-02 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.47 | 7.85 | 313.50 | 14.81 | 288.76 | 0.2686 | -710.0 | -562.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.61 | 313.34 | 14.64 | 288.07 | 0.2648 | -834.0 | -814.3 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 10.40 | 313.39 | 14.70 | 297.54 | 0.2827 | -641.0 | -472.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.83 | 313.12 | 14.43 | 289.10 | 0.2624 | -1077.0 | -856.3 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 7.59 | 312.89 | 14.20 | 288.47 | 0.2575 | -1009.0 | -846.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 9.24 | 312.89 | 14.20 | 294.42 | 0.2671 | -793.0 | -588.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.37 | 312.69 | 14.00 | 287.90 | 0.2533 | -845.0 | -628.5 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 8.27 | 312.38 | 13.68 | 291.65 | 0.2530 | -810.0 | -476.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 9.68 | 312.31 | 13.61 | 296.84 | 0.2612 | -835.0 | -615.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 9.24 | 310.83 | 12.14 | 297.80 | 0.2357 | -860.0 | -594.6 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 9.08 | 310.60 | 11.91 | 297.65 | 0.2311 | -796.0 | -611.0 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 9.40 | 309.70 | 11.01 | 300.76 | 0.2202 | -800.0 | -601.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 8.77 | 309.05 | 10.36 | 299.60 | 0.2053 | -751.0 | -559.5 | |
| 2.36 | 9.17 | 1.20 | 4.65 | 9.96 | 308.78 | 10.08 | 305.21 | 0.2120 | -1158.4 | -746.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.39 | 308.26 | 9.56 | 304.25 | 0.1992 | -831.0 | -681.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.70 | 307.67 | 8.98 | 307.24 | 0.1941 | -831.0 | -664.8 | |
| 1.91 | 5.36 | 0.96 | 2.70 | 9.49 | 307.13 | 8.44 | 308.03 | 0.1846 | 872.6 | 617.7 | |
| 0.00 | 2.82 | 0.00 | 1.42 | 9.59 | 306.57 | 7.88 | 310.34 | 0.1782 | 739.0 | 424.2 | |
| 1.00 | 2.27 | 0.50 | 1.14 | 9.31 | 306.38 | 7.69 | 309.81 | 0.1727 | 752.5 | 549.7 | |
| 3.27 | 8.54 | 1.65 | 4.32 | 11.65 | 306.41 | 7.72 | 318.84 | 0.2008 | -998.1 | -691.6 | |
| 2.45 | 45.13 | 1.23 | 22.71 | 9.74 | 306.24 | 7.54 | 312.25 | 0.1756 | 1087.0 | 780.7 | |
| 14.98 | -21.00 | 7.54 | -21.00 | 9.99 | 305.96 | 7.27 | 314.34 | 0.1750 | 1163.9 | 999999 | |
| 0.54 | 2.45 | 0.28 | 1.24 | 12.70 | 305.85 | 7.15 | 324.22 | 0.2087 | 1034.8 | 824.8 | |
| 1.54 | -21.00 | 0.78 | -21.00 | 9.84 | 305.74 | 7.05 | 314.58 | 0.1705 | 1123.6 | 999999 | |
| 0.00 | 3.72 | 0.00 | 1.88 | 12.83 | 305.44 | 6.75 | 326.13 | 0.2065 | 656.0 | 771.8 | |
| 0.00 | 5.09 | 0.00 | 2.58 | 13.35 | 305.46 | 6.76 | 327.49 | 0.2141 | 817.0 | 598.6 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 13.54 | 305.21 | 6.52 | 328.91 | 0.2146 | 958.0 | 830.2 | |
| 0.00 | 2.82 | 0.00 | 1.43 | 13.01 | 305.19 | 6.50 | 327.61 | 0.2069 | 981.0 | 732.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.50 | 305.21 | 6.51 | 331.16 | 0.2287 | 852.0 | 734.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 11.04 | 304.99 | 6.29 | 322.43 | 0.1773 | 930.0 | 771.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.73 | 305.06 | 6.36 | 329.95 | 0.2160 | 752.0 | 597.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.47 | 304.95 | 6.26 | 332.04 | 0.2262 | 1035.0 | 846.2 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 12.09 | 304.79 | 6.10 | 326.66 | 0.1899 | 991.0 | 815.6 | |
| 3.18 | 6.54 | 1.60 | 3.30 | 11.81 | 304.72 | 6.03 | 326.12 | 0.1853 | 1137.3 | 873.4 | |
| 0.00 | 3.63 | 0.00 | 1.84 | 13.70 | 304.74 | 6.05 | 331.13 | 0.2129 | 595.0 | 633.8 | |
| 0.00 | 15.53 | 0.00 | 7.86 | 13.17 | 304.69 | 6.00 | 330.03 | 0.2047 | 1017.0 | 837.9 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 12.03 | 304.57 | 5.88 | 327.44 | 0.1870 | 834.0 | 674.4 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 11.85 | 304.25 | 5.56 | 328.32 | 0.1814 | 1054.0 | 904.2 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 12.28 | 304.26 | 5.57 | 329.51 | 0.1879 | 1217.0 | 995.1 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 10.62 | 304.17 | 5.47 | 324.70 | 0.1630 | 886.0 | 699.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
