SDO HMI 2014-07-02 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.81 | 14.99 | 3.80 | 19.82 | -16.38 | 232.61 | -66.08 | 109.01 | 0.9288 | 17.2 | -183.6 | |
|
previous
or next observation for the same group /

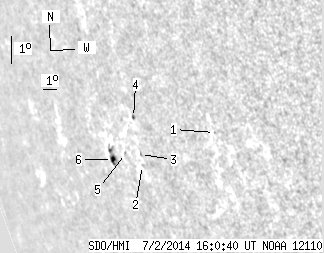

back to the solar disc SDO HMI 2014-07-02 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.65 | -15.34 | 239.66 | -59.03 | 109.35 | 0.8783 | 411.0 | 356.9 | |
| 0.00 | 0.82 | 0.00 | 1.03 | -16.67 | 234.05 | -64.64 | 109.59 | 0.9205 | 384.0 | 353.4 | |
| 0.00 | 1.00 | 0.00 | 1.25 | -16.31 | 234.13 | -64.56 | 109.22 | 0.9195 | 305.0 | 245.7 | |
| 0.45 | 1.54 | 0.56 | 1.90 | -15.12 | 234.32 | -64.37 | 107.98 | 0.9167 | 327.8 | 257.6 | |
| 0.00 | 1.00 | 0.00 | 1.31 | -16.33 | 232.97 | -65.72 | 109.02 | 0.9269 | 79.0 | 45.6 | |
| 2.36 | 9.99 | 3.24 | 13.68 | -16.59 | 231.75 | -66.94 | 109.07 | 0.9345 | -379.0 | -406.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
