SDO HMI 2014-07-02 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 12.44 | 0.36 | 8.97 | -12.71 | 254.12 | -44.02 | 110.79 | 0.7263 | 319.3 | 283.1 | |
|
previous
or next observation for the same group /

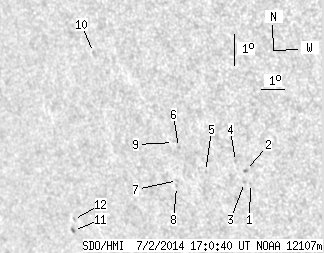

back to the solar disc SDO HMI 2014-07-02 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.19 | -12.97 | 257.65 | -40.48 | 112.58 | 0.6875 | 595.0 | 657.3 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -12.56 | 257.53 | -40.61 | 111.96 | 0.6873 | 855.0 | 719.3 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -12.94 | 257.41 | -40.73 | 112.44 | 0.6903 | 605.0 | 462.4 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -12.29 | 257.17 | -40.97 | 111.43 | 0.6905 | 395.0 | 393.1 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -12.65 | 255.84 | -42.30 | 111.35 | 0.7074 | 704.0 | 515.6 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -11.93 | 254.83 | -43.31 | 109.98 | 0.7163 | 528.0 | 434.2 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -12.98 | 254.57 | -43.57 | 111.28 | 0.7231 | 361.0 | 327.7 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -13.17 | 254.48 | -43.66 | 111.50 | 0.7247 | 342.0 | 299.5 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -11.78 | 254.65 | -43.49 | 109.70 | 0.7179 | 361.0 | 442.9 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -9.07 | 251.63 | -46.51 | 105.10 | 0.7443 | 488.0 | 404.8 | |
| 0.45 | 1.54 | 0.36 | 1.23 | -14.77 | 249.36 | -48.78 | 111.61 | 0.7845 | -543.6 | -461.6 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -14.41 | 249.47 | -48.67 | 111.22 | 0.7824 | -548.0 | -432.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
