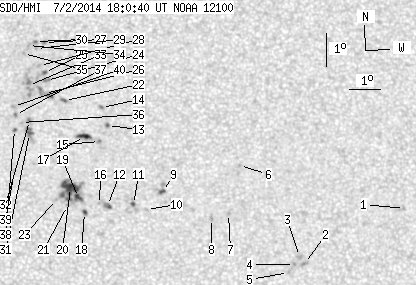

SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.05 | 137.73 | 12.14 | 69.82 | 11.03 | 306.55 | 8.97 | 313.00 | 0.2127 | 308.9 | 392.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.86 | 9.26 | 316.55 | 18.97 | 289.16 | 0.3411 | -790.0 | -641.1 | |
| 0.00 | 2.91 | 0.00 | 1.50 | 7.63 | 313.25 | 15.66 | 287.09 | 0.2812 | -961.0 | -841.8 | |
| 0.00 | 2.91 | 0.00 | 1.50 | 7.85 | 313.09 | 15.51 | 287.98 | 0.2798 | -873.0 | -861.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.61 | 312.93 | 15.34 | 287.31 | 0.2759 | -1052.0 | -863.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 7.37 | 312.73 | 15.14 | 286.65 | 0.2716 | -872.0 | -643.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 10.67 | 311.30 | 13.72 | 299.97 | 0.2703 | -628.0 | -520.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 9.20 | 310.89 | 13.31 | 295.61 | 0.2531 | -912.0 | -716.2 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 9.05 | 310.34 | 12.76 | 295.97 | 0.2437 | -937.0 | -767.3 | |
| 1.00 | 4.90 | 0.51 | 2.49 | 9.90 | 308.83 | 11.25 | 302.13 | 0.2279 | -1192.5 | -836.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 9.35 | 308.31 | 10.72 | 301.17 | 0.2156 | -860.0 | -591.8 | |
| 0.73 | 2.91 | 0.37 | 1.47 | 9.51 | 307.90 | 10.32 | 302.77 | 0.2111 | -1096.0 | -789.9 | |
| 0.00 | 4.36 | 0.00 | 2.20 | 9.49 | 307.09 | 9.50 | 304.81 | 0.1993 | 960.0 | 813.6 | |
| 0.45 | 1.63 | 0.23 | 0.83 | 11.95 | 307.17 | 9.59 | 313.71 | 0.2264 | -1019.8 | -843.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 12.50 | 307.00 | 9.42 | 315.99 | 0.2309 | -733.0 | -660.8 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 11.46 | 306.90 | 9.32 | 312.87 | 0.2174 | -1053.0 | -809.9 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 9.52 | 306.84 | 9.25 | 305.65 | 0.1961 | 660.0 | 435.0 | |
| 4.09 | 6.63 | 2.07 | 3.36 | 11.61 | 306.43 | 8.85 | 314.86 | 0.2135 | -946.4 | -630.1 | |
| 1.00 | 2.27 | 0.50 | 1.14 | 9.28 | 306.36 | 8.78 | 306.02 | 0.1871 | 793.5 | 624.1 | |
| 2.72 | 40.22 | 1.37 | 20.29 | 9.74 | 306.19 | 8.60 | 308.55 | 0.1894 | 1041.2 | 823.9 | |
| 12.89 | -19.00 | 6.50 | -19.00 | 10.05 | 305.94 | 8.36 | 310.62 | 0.1895 | 1200.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.50 | 305.84 | 8.25 | 308.65 | 0.1821 | 901.0 | 689.5 | |
| 0.36 | 2.09 | 0.18 | 1.06 | 12.73 | 305.84 | 8.26 | 320.36 | 0.2206 | 898.0 | 693.2 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.69 | 305.50 | 7.92 | 310.62 | 0.1797 | 865.0 | 646.8 | |
| 0.00 | 3.18 | 0.00 | 1.61 | 13.35 | 305.29 | 7.71 | 324.01 | 0.2231 | 914.0 | 745.1 | |
| 0.45 | 2.09 | 0.23 | 1.06 | 13.60 | 305.24 | 7.65 | 324.87 | 0.2260 | 952.6 | 791.2 | |
| 0.00 | 7.99 | 0.00 | 4.05 | 12.95 | 305.21 | 7.63 | 323.17 | 0.2169 | 220.0 | 690.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.53 | 305.27 | 7.69 | 327.07 | 0.2393 | 950.0 | 807.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.82 | 305.09 | 7.50 | 325.96 | 0.2275 | 897.0 | 679.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.35 | 305.01 | 7.43 | 327.53 | 0.2343 | 831.0 | 667.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.57 | 304.98 | 7.40 | 328.12 | 0.2372 | 995.0 | 748.9 | |
| 0.00 | 7.99 | 0.00 | 4.04 | 11.72 | 304.71 | 7.12 | 321.30 | 0.1951 | 1269.0 | 930.2 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 12.12 | 304.72 | 7.14 | 322.53 | 0.2006 | 1046.0 | 794.0 | |
| 0.00 | 10.90 | 0.00 | 5.53 | 13.20 | 304.72 | 7.14 | 325.67 | 0.2154 | 738.0 | 895.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.44 | 304.76 | 7.18 | 328.62 | 0.2334 | 735.0 | 631.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.20 | 304.59 | 7.01 | 328.64 | 0.2283 | 816.0 | 718.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.06 | 304.47 | 6.88 | 323.33 | 0.1971 | 797.0 | 686.2 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 12.31 | 304.28 | 6.70 | 324.81 | 0.1987 | 1048.0 | 818.4 | |
| 0.36 | 1.45 | 0.18 | 0.73 | 11.85 | 304.24 | 6.66 | 323.56 | 0.1919 | 1031.0 | 891.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 10.59 | 304.21 | 6.63 | 319.30 | 0.1748 | 919.0 | 588.1 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 12.56 | 304.23 | 6.65 | 325.76 | 0.2016 | 921.0 | 769.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
