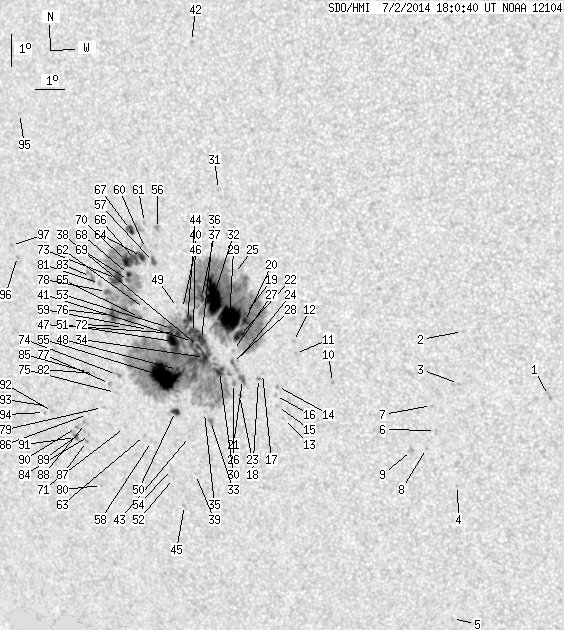

SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 251.79 | 1403.26 | 147.93 | 825.71 | -10.94 | 268.06 | -29.52 | 115.92 | 0.5401 | 401.7 | 169.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.72 | 0.00 | 2.01 | -12.76 | 280.24 | -17.34 | 132.85 | 0.3982 | 797.0 | 605.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -10.78 | 277.56 | -20.03 | 125.00 | 0.4124 | 718.0 | 566.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -12.42 | 277.30 | -20.28 | 127.86 | 0.4306 | 842.0 | 667.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -15.68 | 276.95 | -20.63 | 133.11 | 0.4665 | 540.0 | 532.8 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -20.03 | 276.24 | -21.35 | 138.63 | 0.5194 | 457.0 | 335.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -13.93 | 276.39 | -21.19 | 129.40 | 0.4559 | 638.0 | 484.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -13.14 | 276.33 | -21.25 | 127.91 | 0.4492 | 575.0 | 545.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -14.51 | 276.03 | -21.55 | 129.94 | 0.4658 | 789.0 | 614.2 | |
| 0.00 | 3.63 | 0.00 | 2.04 | -14.59 | 275.51 | -22.07 | 129.41 | 0.4726 | 780.0 | 621.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -12.48 | 273.04 | -24.55 | 122.92 | 0.4852 | 835.0 | 740.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -11.59 | 271.85 | -25.73 | 120.17 | 0.4939 | 777.0 | 566.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -11.21 | 271.82 | -25.76 | 119.46 | 0.4916 | 851.0 | 672.9 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -13.66 | 271.20 | -26.38 | 123.13 | 0.5176 | 693.0 | 510.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -12.65 | 271.11 | -26.47 | 121.33 | 0.5112 | 927.0 | 788.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -13.28 | 271.04 | -26.54 | 122.34 | 0.5168 | 671.0 | 535.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -12.93 | 271.01 | -26.57 | 121.72 | 0.5146 | 666.0 | 504.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -12.25 | 270.63 | -26.95 | 120.21 | 0.5145 | 817.0 | 726.1 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -12.41 | 270.47 | -27.11 | 120.34 | 0.5177 | 731.0 | 518.9 | |
| 0.73 | 463.87 | 0.42 | 267.63 | -10.37 | 270.23 | -27.35 | 116.56 | 0.5072 | 1413.8 | 497.1 | |
| 4.00 | -19.00 | 2.30 | -19.00 | -10.62 | 270.17 | -27.41 | 116.96 | 0.5096 | 1312.1 | 999999 | |
| 2.54 | 11.35 | 1.48 | 6.60 | -12.45 | 269.91 | -27.68 | 119.92 | 0.5253 | 900.9 | 754.9 | |
| 8.26 | -19.00 | 4.77 | -19.00 | -11.07 | 269.95 | -27.63 | 117.57 | 0.5154 | 983.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -12.96 | 269.74 | -27.84 | 120.63 | 0.5310 | 680.0 | 571.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -11.86 | 269.80 | -27.78 | 118.81 | 0.5227 | 880.0 | 771.6 | |
| 0.00 | 3.00 | 0.00 | 1.72 | -9.13 | 269.96 | -27.62 | 114.08 | 0.5034 | 289.0 | 246.6 | |
| 0.36 | 1.91 | 0.21 | 1.11 | -12.59 | 269.57 | -28.01 | 119.86 | 0.5306 | 830.5 | 707.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -11.54 | 269.69 | -27.89 | 118.18 | 0.5220 | 658.0 | 500.2 | |
| 0.91 | -21.00 | 0.53 | -21.00 | -11.92 | 269.61 | -27.97 | 118.77 | 0.5255 | 892.5 | 999999 | |
| 39.22 | -19.00 | 22.65 | -19.00 | -10.54 | 269.66 | -27.93 | 116.40 | 0.5160 | 1307.9 | 999999 | |
| 6.45 | 585.90 | 3.77 | 347.50 | -12.22 | 269.12 | -28.46 | 118.86 | 0.5339 | 881.4 | -172.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -6.53 | 269.60 | -27.98 | 108.93 | 0.4948 | 729.0 | 602.9 | |
| 38.32 | -19.00 | 22.18 | -19.00 | -9.86 | 269.16 | -28.42 | 114.82 | 0.5187 | 1279.9 | 999999 | |
| 0.82 | 4.18 | 0.48 | 2.48 | -13.82 | 268.59 | -28.99 | 121.05 | 0.5515 | -686.8 | -526.4 | |
| 9.35 | -30.00 | 5.49 | -30.00 | -11.79 | 268.64 | -28.95 | 117.75 | 0.5374 | 424.7 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -13.54 | 268.41 | -29.17 | 120.45 | 0.5518 | -628.0 | -539.8 | |
| 7.35 | -30.00 | 4.30 | -30.00 | -11.23 | 268.59 | -28.99 | 116.76 | 0.5344 | 968.0 | 999999 | |
| 3.00 | -19.00 | 1.74 | -19.00 | -9.91 | 268.73 | -28.85 | 114.57 | 0.5247 | 770.0 | 999999 | |
| 1.91 | -30.00 | 1.12 | -30.00 | -11.45 | 268.46 | -29.12 | 117.04 | 0.5376 | 716.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -15.53 | 267.79 | -29.79 | 123.06 | 0.5733 | 668.0 | 654.3 | |
| 6.63 | -30.00 | 3.89 | -30.00 | -11.01 | 268.33 | -29.25 | 116.20 | 0.5366 | 851.7 | 999999 | |
| 5.54 | -30.00 | 3.25 | -30.00 | -11.30 | 268.27 | -29.32 | 116.63 | 0.5392 | 541.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -2.00 | 268.85 | -28.73 | 99.59 | 0.4892 | 740.0 | 633.2 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -14.32 | 267.76 | -29.82 | 121.16 | 0.5652 | -791.0 | -633.1 | |
| 7.54 | -30.00 | 4.42 | -30.00 | -10.64 | 268.16 | -29.42 | 115.43 | 0.5367 | 742.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -16.55 | 267.22 | -30.37 | 124.10 | 0.5874 | 215.0 | 334.7 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -10.27 | 268.02 | -29.56 | 114.69 | 0.5364 | 335.0 | 277.3 | |
| 1.82 | -30.00 | 1.07 | -30.00 | -11.06 | 267.76 | -29.83 | 115.85 | 0.5445 | -492.5 | 999999 | |
| 1.54 | -30.00 | 0.92 | -30.00 | -12.20 | 267.62 | -29.96 | 117.64 | 0.5532 | -1303.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -10.24 | 267.85 | -29.74 | 114.52 | 0.5386 | 411.0 | 329.1 | |
| 3.81 | 6.72 | 2.29 | 4.03 | -13.53 | 267.37 | -30.21 | 119.61 | 0.5649 | -986.5 | -632.3 | |
| 10.53 | -30.00 | 6.23 | -30.00 | -11.31 | 267.58 | -30.00 | 116.16 | 0.5483 | 537.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -15.68 | 266.96 | -30.62 | 122.60 | 0.5843 | 481.0 | 421.5 | |
| 3.45 | -30.00 | 2.04 | -30.00 | -10.91 | 267.56 | -30.02 | 115.45 | 0.5462 | -515.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.33 | -15.40 | 266.93 | -30.65 | 122.15 | 0.5827 | 593.0 | 536.1 | |
| 44.94 | -30.00 | 26.86 | -30.00 | -12.43 | 267.12 | -30.46 | 117.65 | 0.5611 | -1201.7 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.75 | -7.79 | 267.36 | -30.22 | 109.91 | 0.5325 | 905.0 | 775.5 | |
| 2.18 | 3.63 | 1.28 | 2.14 | -8.83 | 267.13 | -30.45 | 111.59 | 0.5407 | 973.9 | 786.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -14.52 | 266.34 | -31.24 | 120.35 | 0.5840 | -622.0 | -467.1 | |
| 0.00 | 5.54 | 0.00 | 3.30 | -10.96 | 266.72 | -30.86 | 114.96 | 0.5576 | -96.0 | -93.2 | |
| 0.00 | 5.72 | 0.00 | 3.37 | -8.43 | 266.88 | -30.70 | 110.74 | 0.5422 | 811.0 | 593.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -7.62 | 266.91 | -30.67 | 109.34 | 0.5379 | 706.0 | 680.1 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -10.30 | 266.65 | -30.93 | 113.82 | 0.5549 | -369.0 | -187.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -14.33 | 266.11 | -31.47 | 119.89 | 0.5856 | -807.0 | -690.7 | |
| 4.09 | 211.83 | 2.41 | 126.57 | -8.68 | 266.71 | -30.87 | 111.08 | 0.5457 | 998.0 | 414.8 | |
| 1.18 | -64.00 | 0.70 | -64.00 | -10.59 | 266.44 | -31.14 | 114.15 | 0.5593 | -401.7 | 999999 | |
| 1.36 | -64.00 | 0.81 | -64.00 | -8.78 | 266.49 | -31.10 | 111.12 | 0.5493 | 991.4 | 999999 | |
| 4.54 | 12.08 | 2.68 | 7.12 | -7.85 | 266.39 | -31.19 | 109.45 | 0.5462 | 779.4 | 670.7 | |
| 2.18 | -64.00 | 1.30 | -64.00 | -9.26 | 266.19 | -31.40 | 111.75 | 0.5557 | 1078.0 | 999999 | |
| 1.18 | -64.00 | 0.70 | -64.00 | -9.44 | 266.17 | -31.42 | 112.05 | 0.5569 | 1013.8 | 999999 | |
| 5.81 | -64.00 | 3.45 | -64.00 | -8.85 | 266.15 | -31.43 | 111.04 | 0.5541 | 906.8 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -14.09 | 265.41 | -32.17 | 119.02 | 0.5928 | -533.0 | -459.5 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -10.89 | 265.82 | -31.76 | 114.24 | 0.5690 | 291.0 | 311.7 | |
| 10.90 | -64.00 | 6.52 | -64.00 | -9.39 | 265.74 | -31.85 | 111.71 | 0.5624 | 877.1 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.16 | -12.41 | 265.36 | -32.22 | 116.39 | 0.5834 | -573.0 | -474.7 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -12.99 | 265.24 | -32.34 | 117.20 | 0.5882 | -669.0 | -473.1 | |
| 6.90 | -64.00 | 4.16 | -64.00 | -10.56 | 265.50 | -32.09 | 113.49 | 0.5715 | 694.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -12.71 | 265.06 | -32.52 | 116.64 | 0.5889 | -802.0 | -647.6 | |
| 1.36 | -64.00 | 0.82 | -64.00 | -9.81 | 265.33 | -32.26 | 112.15 | 0.5700 | 921.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -13.48 | 264.69 | -32.90 | 117.58 | 0.5981 | -569.0 | -551.4 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -15.99 | 264.21 | -33.37 | 120.97 | 0.6190 | -623.0 | -554.1 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -9.57 | 265.10 | -32.49 | 111.62 | 0.5719 | 683.0 | 574.7 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -12.41 | 264.55 | -33.03 | 115.84 | 0.5937 | -682.0 | -560.9 | |
| 0.00 | 6.54 | 0.00 | 3.95 | -9.36 | 264.79 | -32.80 | 111.09 | 0.5750 | 777.0 | 595.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -14.39 | 264.05 | -33.54 | 118.52 | 0.6112 | -482.0 | -460.5 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -12.38 | 264.33 | -33.25 | 115.65 | 0.5964 | -596.0 | -486.8 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -13.72 | 264.08 | -33.50 | 117.54 | 0.6069 | -498.0 | -478.8 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -14.58 | 263.90 | -33.68 | 118.71 | 0.6142 | -684.0 | -600.9 | |
| 0.00 | 2.54 | 0.00 | 1.59 | -14.01 | 263.96 | -33.62 | 117.89 | 0.6101 | -728.0 | -652.9 | |
| 0.00 | 2.00 | 0.00 | 1.25 | -14.24 | 263.85 | -33.74 | 118.16 | 0.6128 | -768.0 | -648.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -14.15 | 263.60 | -33.99 | 117.86 | 0.6153 | -679.0 | -605.2 | |
| 1.09 | 4.27 | 0.69 | 2.68 | -14.47 | 263.50 | -34.08 | 118.27 | 0.6183 | -706.2 | -554.4 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -13.66 | 262.76 | -34.82 | 116.61 | 0.6228 | -576.0 | -467.1 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -13.51 | 262.64 | -34.95 | 116.31 | 0.6235 | -494.0 | -389.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -13.70 | 262.45 | -35.13 | 116.48 | 0.6269 | -560.0 | -438.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -4.38 | 262.57 | -35.02 | 101.79 | 0.5866 | 514.0 | 403.1 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -8.81 | 262.12 | -35.46 | 108.83 | 0.6079 | -660.0 | -591.6 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -8.48 | 261.93 | -35.65 | 108.21 | 0.6091 | -701.0 | -542.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
