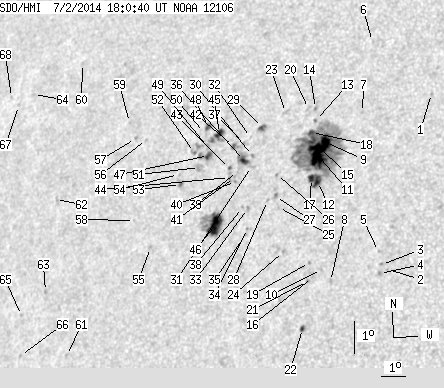

SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.24 | 372.48 | 60.02 | 237.96 | 15.28 | 259.94 | -37.64 | 69.20 | 0.6319 | -331.3 | -101.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.82 | 17.80 | 265.62 | -31.96 | 62.48 | 0.5705 | -727.0 | -564.2 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 12.28 | 264.90 | -32.68 | 72.24 | 0.5561 | -704.0 | -597.6 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 12.43 | 264.66 | -32.92 | 72.08 | 0.5599 | -745.0 | -617.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 12.15 | 264.63 | -32.96 | 72.58 | 0.5595 | -668.0 | -463.4 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 12.83 | 264.49 | -33.09 | 71.46 | 0.5636 | -710.0 | -562.2 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 19.38 | 263.00 | -34.59 | 61.53 | 0.6113 | -540.0 | -435.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 17.13 | 263.11 | -34.47 | 64.97 | 0.5991 | -699.0 | -570.8 | |
| 0.00 | 2.27 | 0.00 | 1.38 | 11.85 | 262.83 | -34.76 | 73.75 | 0.5833 | -599.0 | -422.8 | |
| 8.53 | 202.47 | 5.33 | 126.56 | 16.15 | 261.88 | -35.70 | 67.12 | 0.6107 | -1153.2 | -382.4 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 12.21 | 262.43 | -35.15 | 73.28 | 0.5897 | -707.0 | -519.1 | |
| 29.24 | -9.00 | 18.28 | -9.00 | 15.77 | 261.64 | -35.94 | 67.82 | 0.6122 | -1158.7 | 999999 | |
| 5.63 | -9.00 | 3.50 | -9.00 | 14.93 | 261.81 | -35.77 | 69.09 | 0.6069 | -1015.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 16.83 | 261.34 | -36.24 | 66.31 | 0.6202 | -630.0 | -435.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 17.20 | 261.26 | -36.33 | 65.77 | 0.6228 | -604.0 | -486.0 | |
| 5.08 | -9.00 | 3.20 | -9.00 | 16.17 | 261.36 | -36.22 | 67.32 | 0.6173 | -386.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 11.95 | 262.12 | -35.46 | 73.81 | 0.5932 | -711.0 | -641.0 | |
| 3.27 | -9.00 | 2.04 | -9.00 | 15.01 | 261.56 | -36.02 | 69.05 | 0.6104 | -790.5 | 999999 | |
| 2.27 | -9.00 | 1.43 | -9.00 | 16.45 | 261.26 | -36.32 | 66.93 | 0.6196 | -339.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 12.41 | 261.94 | -35.64 | 73.12 | 0.5970 | -765.0 | -665.2 | |
| 0.00 | 2.09 | 0.00 | 1.32 | 17.20 | 260.98 | -36.60 | 65.91 | 0.6262 | -432.0 | -255.0 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 11.83 | 261.95 | -35.63 | 74.08 | 0.5951 | -666.0 | -608.3 | |
| 1.54 | 2.63 | 0.95 | 1.61 | 10.38 | 261.96 | -35.62 | 76.49 | 0.5914 | -682.3 | -626.0 | |
| 0.00 | 3.00 | 0.00 | 1.92 | 17.04 | 260.09 | -37.49 | 66.53 | 0.6366 | 693.0 | 519.8 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 12.72 | 260.88 | -36.70 | 72.96 | 0.6120 | -827.0 | -699.9 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 14.08 | 260.44 | -37.14 | 70.96 | 0.6217 | -706.0 | -597.2 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 15.10 | 260.16 | -37.42 | 69.48 | 0.6287 | -542.0 | -384.2 | |
| 0.00 | 2.09 | 0.00 | 1.32 | 14.41 | 260.26 | -37.32 | 70.50 | 0.6252 | -776.0 | -601.7 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 14.28 | 259.97 | -37.62 | 70.82 | 0.6285 | -435.0 | -338.7 | |
| 2.27 | 4.27 | 1.47 | 2.76 | 16.55 | 259.28 | -38.30 | 67.62 | 0.6448 | 830.0 | 684.0 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 15.66 | 259.08 | -38.51 | 69.03 | 0.6443 | 711.0 | 587.3 | |
| 0.00 | 2.45 | 0.00 | 1.58 | 15.32 | 259.11 | -38.47 | 69.54 | 0.6427 | 498.0 | 375.1 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 16.22 | 258.87 | -38.71 | 68.27 | 0.6488 | 557.0 | 489.1 | |
| 0.00 | 2.27 | 0.00 | 1.46 | 14.01 | 259.22 | -38.36 | 71.49 | 0.6373 | 748.0 | 514.1 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 13.39 | 259.34 | -38.24 | 72.41 | 0.6340 | -547.0 | -469.2 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 13.20 | 259.29 | -38.29 | 72.72 | 0.6340 | -528.0 | -371.2 | |
| 3.54 | 10.71 | 2.30 | 6.96 | 15.49 | 258.79 | -38.79 | 69.39 | 0.6473 | 912.1 | 621.6 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 16.05 | 258.62 | -38.96 | 68.61 | 0.6513 | 706.0 | 594.0 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 14.03 | 259.01 | -38.57 | 71.52 | 0.6400 | 650.0 | 548.2 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 15.14 | 258.58 | -39.00 | 69.99 | 0.6488 | 744.0 | 569.0 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 14.83 | 258.57 | -39.02 | 70.46 | 0.6480 | 539.0 | 485.2 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 14.95 | 258.50 | -39.08 | 70.30 | 0.6492 | 572.0 | 473.7 | |
| 1.18 | 4.27 | 0.77 | 2.79 | 15.92 | 258.24 | -39.34 | 68.95 | 0.6555 | 706.9 | 525.9 | |
| 0.45 | 1.54 | 0.30 | 1.01 | 15.23 | 258.24 | -39.35 | 69.98 | 0.6534 | 788.4 | 638.0 | |
| 0.00 | 2.45 | 0.00 | 1.60 | 14.95 | 258.30 | -39.29 | 70.38 | 0.6517 | 137.0 | 151.6 | |
| 4.45 | 13.80 | 2.94 | 9.13 | 16.30 | 257.57 | -40.01 | 68.63 | 0.6649 | 785.8 | 677.9 | |
| 21.16 | 40.04 | 13.77 | 26.12 | 13.47 | 258.03 | -39.55 | 72.68 | 0.6509 | -871.1 | -108.6 | |
| 3.00 | 10.35 | 1.99 | 6.87 | 15.60 | 257.28 | -40.30 | 69.75 | 0.6663 | 896.8 | 701.2 | |
| 1.73 | 4.36 | 1.15 | 2.91 | 16.48 | 257.07 | -40.51 | 68.55 | 0.6716 | 652.1 | 493.6 | |
| 0.00 | 2.27 | 0.00 | 1.51 | 15.88 | 257.17 | -40.41 | 69.38 | 0.6684 | 690.0 | 658.1 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 16.31 | 256.94 | -40.64 | 68.83 | 0.6726 | 304.0 | 387.7 | |
| 0.00 | 6.36 | 0.00 | 4.22 | 15.22 | 257.00 | -40.59 | 70.41 | 0.6686 | 369.0 | 340.2 | |
| 0.36 | 6.54 | 0.24 | 4.37 | 15.68 | 256.68 | -40.90 | 69.84 | 0.6738 | 640.0 | 616.2 | |
| 0.54 | 3.18 | 0.36 | 2.13 | 14.66 | 256.33 | -41.25 | 71.42 | 0.6753 | 875.5 | 730.5 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 14.97 | 256.17 | -41.41 | 71.02 | 0.6780 | 481.0 | 515.0 | |
| 0.00 | 1.73 | 0.00 | 1.16 | 12.68 | 255.49 | -42.09 | 74.54 | 0.6808 | -658.0 | -539.6 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 16.01 | 254.54 | -43.04 | 70.03 | 0.7003 | -680.0 | -537.0 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 16.03 | 254.06 | -43.53 | 70.15 | 0.7060 | -591.0 | -457.8 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 13.49 | 254.64 | -42.94 | 73.58 | 0.6929 | -380.0 | -369.8 | |
| 0.00 | 0.64 | 0.00 | 0.45 | 16.52 | 253.65 | -43.93 | 69.59 | 0.7120 | 519.0 | 439.7 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 18.29 | 250.95 | -46.63 | 67.99 | 0.7467 | 629.0 | 587.8 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 9.24 | 252.51 | -45.07 | 79.98 | 0.7119 | 618.0 | 562.5 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 14.01 | 251.01 | -46.57 | 73.66 | 0.7366 | 441.0 | 468.0 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 11.16 | 251.22 | -46.36 | 77.49 | 0.7296 | 643.0 | 486.8 | |
| 0.00 | 1.09 | 0.00 | 0.83 | 17.23 | 248.99 | -48.60 | 69.88 | 0.7652 | 594.0 | 495.8 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 10.39 | 250.29 | -47.30 | 78.67 | 0.7395 | 526.0 | 491.1 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 9.16 | 250.47 | -47.12 | 80.31 | 0.7361 | 553.0 | 414.8 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 16.86 | 248.38 | -49.20 | 70.49 | 0.7708 | 668.0 | 445.5 | |
| 0.00 | 0.73 | 0.00 | 0.57 | 17.10 | 247.96 | -49.63 | 70.28 | 0.7757 | 356.0 | 281.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
