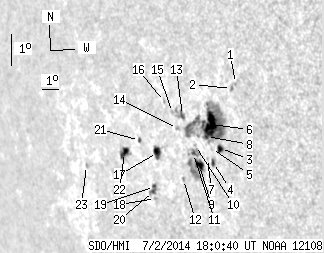

SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.13 | 177.87 | 45.27 | 168.36 | -8.00 | 240.14 | -57.44 | 101.32 | 0.8528 | 190.1 | 129.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.87 | -6.15 | 242.88 | -54.70 | 99.61 | 0.8251 | 634.0 | 545.0 | |
| 0.00 | 1.73 | 0.00 | 1.51 | -6.32 | 242.64 | -54.94 | 99.76 | 0.8277 | 598.0 | 509.1 | |
| 2.91 | 4.72 | 2.64 | 4.28 | -8.21 | 241.68 | -55.90 | 101.85 | 0.8395 | 756.6 | 587.4 | |
| 1.45 | 3.18 | 1.34 | 2.93 | -8.67 | 241.19 | -56.39 | 102.29 | 0.8447 | 633.5 | 543.2 | |
| 0.00 | 1.18 | 0.00 | 1.08 | -8.24 | 241.18 | -56.40 | 101.78 | 0.8442 | 455.0 | 322.5 | |
| 18.89 | 89.52 | 17.25 | 82.04 | -7.49 | 241.28 | -56.30 | 100.92 | 0.8422 | 776.6 | 321.5 | |
| 0.00 | 0.91 | 0.00 | 0.84 | -8.56 | 240.88 | -56.70 | 102.11 | 0.8474 | 462.0 | 406.9 | |
| 0.27 | -6.00 | 0.25 | -6.00 | -7.87 | 240.98 | -56.61 | 101.32 | 0.8455 | 449.7 | 999999 | |
| 5.45 | 23.24 | 5.13 | 22.02 | -8.80 | 240.37 | -57.22 | 102.29 | 0.8524 | 525.1 | -112.5 | |
| 0.00 | 1.18 | 0.00 | 1.11 | -8.18 | 240.28 | -57.30 | 101.56 | 0.8522 | 211.0 | 146.7 | |
| 1.09 | 6.99 | 1.03 | 6.60 | -8.44 | 240.11 | -57.47 | 101.83 | 0.8541 | -37.2 | 18.2 | |
| 0.00 | 1.63 | 0.00 | 1.59 | -9.28 | 239.31 | -58.27 | 102.66 | 0.8623 | 331.0 | 250.2 | |
| 1.54 | 7.99 | 1.47 | 7.64 | -7.28 | 239.73 | -57.85 | 100.42 | 0.8560 | 393.8 | 114.6 | |
| 0.00 | 2.00 | 0.00 | 1.93 | -7.70 | 239.35 | -58.24 | 100.84 | 0.8599 | -600.0 | -531.8 | |
| 0.00 | 1.45 | 0.00 | 1.41 | -7.21 | 239.16 | -58.43 | 100.25 | 0.8609 | -432.0 | -339.6 | |
| 0.00 | 1.45 | 0.00 | 1.42 | -6.89 | 238.75 | -58.84 | 99.81 | 0.8641 | -325.0 | -329.2 | |
| 5.81 | 8.99 | 5.86 | 9.06 | -8.51 | 237.95 | -59.63 | 101.53 | 0.8729 | -638.1 | -419.9 | |
| 0.00 | 1.27 | 0.00 | 1.31 | -9.96 | 237.41 | -60.18 | 103.09 | 0.8792 | -607.0 | -521.5 | |
| 1.27 | 6.45 | 1.31 | 6.65 | -9.59 | 237.46 | -60.12 | 102.67 | 0.8783 | -620.5 | -493.1 | |
| 1.73 | -19.00 | 1.78 | -19.00 | -9.75 | 237.35 | -60.23 | 102.83 | 0.8794 | -652.2 | 999999 | |
| 0.82 | 1.91 | 0.85 | 1.98 | -8.18 | 236.91 | -60.67 | 101.00 | 0.8810 | -399.2 | -381.8 | |
| 5.90 | 9.72 | 6.36 | 10.47 | -8.60 | 235.82 | -61.76 | 101.30 | 0.8901 | -538.5 | -354.0 | |
| 0.00 | 1.36 | 0.00 | 1.62 | -9.14 | 233.03 | -64.55 | 101.48 | 0.9114 | -400.0 | -267.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
