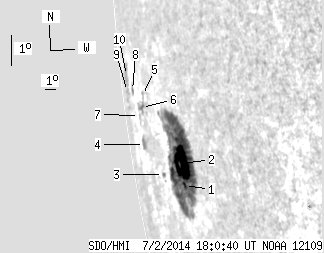

SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.23 | 234.97 | 79.39 | 577.17 | -8.06 | 220.04 | -77.54 | 98.92 | 0.9782 | 278.9 | 37.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 207.56 | 3.71 | 454.20 | -9.07 | 221.53 | -76.05 | 100.05 | 0.9743 | 268.6 | 72.9 | |
| 32.78 | -1.00 | 70.08 | -1.00 | -8.38 | 221.57 | -76.01 | 99.36 | 0.9739 | 380.4 | 999999 | |
| 0.54 | 1.54 | 1.48 | 4.20 | -8.88 | 218.60 | -78.98 | 99.60 | 0.9844 | -497.2 | -450.4 | |
| 0.00 | 4.90 | 0.00 | 18.54 | -8.10 | 215.68 | -81.90 | 98.59 | 0.9919 | -382.0 | -308.4 | |
| 0.00 | 1.91 | 0.00 | 6.25 | -6.53 | 216.65 | -80.94 | 97.08 | 0.9893 | -448.0 | -378.4 | |
| 1.18 | 5.90 | 4.12 | 21.00 | -6.93 | 216.12 | -81.46 | 97.45 | 0.9907 | -600.2 | -467.9 | |
| 0.00 | 0.27 | 0.00 | 1.05 | -7.22 | 215.42 | -82.16 | 97.68 | 0.9923 | -276.0 | -295.7 | |
| 0.00 | 1.91 | 0.00 | 8.46 | -6.50 | 214.37 | -83.21 | 96.89 | 0.9943 | 27.0 | 2.2 | |
| 0.00 | 2.45 | 0.00 | 14.50 | -6.62 | 212.68 | -84.91 | 96.90 | 0.9970 | 341.0 | 198.6 | |
| 0.00 | 8.53 | 0.00 | 48.97 | -6.11 | 212.98 | -84.60 | 96.41 | 0.9965 | 112.0 | 110.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
