SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.08 | 18.34 | 10.51 | 23.15 | -16.16 | 232.72 | -64.86 | 109.01 | 0.9211 | -234.9 | 18.2 | |
|
previous
or next observation for the same group /

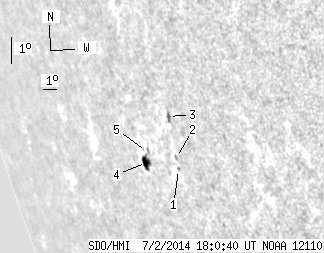

back to the solar disc SDO HMI 2014-07-02 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.53 | -16.67 | 234.13 | -63.46 | 109.83 | 0.9127 | 446.0 | 345.3 | |
| 0.00 | 1.45 | 0.00 | 1.74 | -16.28 | 234.22 | -63.37 | 109.43 | 0.9116 | 191.0 | 184.1 | |
| 0.73 | 4.27 | 0.85 | 5.02 | -14.96 | 234.39 | -63.19 | 108.04 | 0.9086 | 473.8 | 327.8 | |
| 7.35 | 9.62 | 9.66 | 12.63 | -16.56 | 231.80 | -65.78 | 109.25 | 0.9276 | -381.5 | -343.0 | |
| 0.00 | 1.73 | 0.00 | 2.23 | -16.19 | 232.04 | -65.54 | 108.91 | 0.9256 | -528.0 | -431.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
