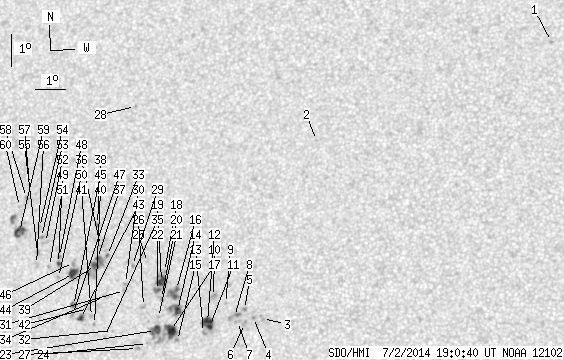

SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.45 | 223.45 | 32.36 | 119.73 | 12.81 | 276.85 | -20.18 | 62.67 | 0.3802 | -129.3 | -102.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.76 | 20.64 | 290.07 | -6.96 | 20.53 | 0.3248 | -862.0 | -635.1 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 17.43 | 282.55 | -14.47 | 43.60 | 0.3472 | -750.0 | -609.2 | |
| 0.00 | 3.00 | 0.00 | 1.56 | 11.88 | 281.18 | -15.85 | 59.77 | 0.3106 | -877.0 | -643.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 11.90 | 280.89 | -16.14 | 60.13 | 0.3151 | -1060.0 | -809.4 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 12.15 | 280.58 | -16.45 | 59.89 | 0.3214 | -917.0 | -730.9 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 11.71 | 280.60 | -16.42 | 61.06 | 0.3177 | -848.0 | -773.5 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 11.77 | 280.37 | -16.65 | 61.22 | 0.3215 | -835.0 | -763.3 | |
| 0.00 | 5.90 | 0.00 | 3.09 | 11.92 | 280.27 | -16.76 | 60.94 | 0.3242 | -607.0 | -836.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 12.32 | 279.95 | -17.08 | 60.29 | 0.3318 | -809.0 | -582.5 | |
| 0.00 | 3.00 | 0.00 | 1.58 | 12.53 | 279.54 | -17.48 | 60.28 | 0.3392 | -900.0 | -834.9 | |
| 3.09 | 12.62 | 1.62 | 6.63 | 11.61 | 279.47 | -17.55 | 62.85 | 0.3335 | -1233.6 | -778.5 | |
| 5.90 | -11.00 | 3.10 | -11.00 | 11.76 | 279.40 | -17.63 | 62.53 | 0.3356 | -1098.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 11.42 | 279.29 | -17.74 | 63.59 | 0.3349 | -688.0 | -651.0 | |
| 4.81 | 11.35 | 2.55 | 6.01 | 12.08 | 278.39 | -18.63 | 62.88 | 0.3526 | -1136.2 | -854.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 11.16 | 278.45 | -18.57 | 65.25 | 0.3456 | -1014.0 | -838.7 | |
| 1.09 | 11.35 | 0.58 | 6.02 | 12.73 | 278.31 | -18.72 | 61.32 | 0.3583 | -861.8 | -891.2 | |
| 9.17 | 31.78 | 4.85 | 16.83 | 11.46 | 278.20 | -18.82 | 64.71 | 0.3512 | -1132.4 | -660.9 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 13.28 | 277.87 | -19.16 | 60.49 | 0.3685 | -727.0 | -532.5 | |
| 6.08 | 16.71 | 3.24 | 8.89 | 12.97 | 277.80 | -19.23 | 61.33 | 0.3673 | -1018.7 | -711.9 | |
| 0.00 | 2.54 | 0.00 | 1.35 | 12.44 | 277.84 | -19.19 | 62.59 | 0.3631 | -854.0 | -749.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 11.86 | 277.78 | -19.24 | 64.14 | 0.3600 | -540.0 | -393.4 | |
| 1.54 | -19.00 | 0.82 | -19.00 | 12.69 | 277.69 | -19.34 | 62.15 | 0.3670 | -908.9 | 999999 | |
| 5.72 | -17.00 | 3.03 | -17.00 | 11.46 | 277.71 | -19.31 | 65.26 | 0.3585 | -807.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 11.05 | 277.48 | -19.55 | 66.55 | 0.3596 | -473.0 | -348.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 13.55 | 277.28 | -19.74 | 60.53 | 0.3788 | -594.0 | -487.8 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 12.19 | 277.26 | -19.77 | 63.87 | 0.3698 | -911.0 | -724.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 10.89 | 277.16 | -19.87 | 67.27 | 0.3634 | -604.0 | -299.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 18.42 | 276.37 | -20.66 | 51.26 | 0.4309 | 787.0 | 574.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 13.45 | 276.79 | -20.23 | 61.32 | 0.3850 | -790.0 | -574.0 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 12.89 | 276.61 | -20.42 | 62.85 | 0.3839 | -628.0 | -550.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 12.67 | 276.59 | -20.44 | 63.38 | 0.3826 | -645.0 | -489.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 11.43 | 276.29 | -20.74 | 66.70 | 0.3795 | 861.0 | 661.5 | |
| 0.54 | 24.15 | 0.29 | 13.06 | 13.74 | 275.93 | -21.10 | 61.57 | 0.3993 | 923.3 | 716.8 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 12.48 | 275.94 | -21.09 | 64.50 | 0.3908 | -506.0 | -293.1 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 11.24 | 276.04 | -20.99 | 67.40 | 0.3822 | 810.0 | 569.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 14.05 | 275.66 | -21.36 | 61.15 | 0.4052 | -602.0 | -509.1 | |
| 1.36 | -33.00 | 0.74 | -33.00 | 13.65 | 275.60 | -21.43 | 62.13 | 0.4033 | 992.7 | 999999 | |
| 0.36 | 2.00 | 0.20 | 1.09 | 14.70 | 275.50 | -21.53 | 59.89 | 0.4121 | -841.2 | -666.8 | |
| 3.63 | -33.00 | 1.96 | -33.00 | 13.43 | 275.55 | -21.47 | 62.67 | 0.4025 | 1160.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 11.61 | 275.68 | -21.35 | 66.83 | 0.3896 | 806.0 | 669.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 11.85 | 275.56 | -21.47 | 66.35 | 0.3927 | 868.0 | 730.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 12.10 | 275.44 | -21.59 | 65.87 | 0.3959 | 936.0 | 708.1 | |
| 2.45 | 4.27 | 1.32 | 2.30 | 11.78 | 275.19 | -21.83 | 66.83 | 0.3977 | 968.3 | 741.4 | |
| 5.54 | 9.17 | 3.01 | 4.98 | 13.17 | 274.83 | -22.19 | 63.95 | 0.4111 | 1120.0 | 809.1 | |
| 1.18 | 3.45 | 0.64 | 1.87 | 12.18 | 274.92 | -22.10 | 66.13 | 0.4039 | 968.1 | 759.1 | |
| 0.00 | 2.54 | 0.00 | 1.38 | 13.51 | 274.80 | -22.22 | 63.22 | 0.4137 | 928.0 | 739.7 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 11.90 | 274.91 | -22.11 | 66.78 | 0.4025 | 861.0 | 620.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 13.68 | 274.31 | -22.72 | 63.28 | 0.4218 | 843.0 | 629.8 | |
| 1.18 | 1.82 | 0.64 | 0.99 | 13.47 | 274.30 | -22.73 | 63.77 | 0.4206 | 1005.3 | 843.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 13.03 | 274.34 | -22.69 | 64.69 | 0.4174 | 702.0 | 569.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 13.37 | 274.00 | -23.03 | 64.25 | 0.4243 | 793.0 | 633.4 | |
| 0.00 | 3.36 | 0.00 | 1.84 | 14.11 | 273.79 | -23.24 | 62.84 | 0.4319 | 626.0 | 646.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 14.26 | 273.63 | -23.39 | 62.66 | 0.4350 | 977.0 | 866.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 14.57 | 273.53 | -23.50 | 62.10 | 0.4384 | 828.0 | 721.1 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 13.79 | 273.55 | -23.48 | 63.73 | 0.4333 | 914.0 | 784.3 | |
| 0.00 | 2.72 | 0.00 | 1.49 | 13.42 | 273.55 | -23.47 | 64.52 | 0.4310 | 668.0 | 527.3 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 15.90 | 273.03 | -24.00 | 59.85 | 0.4542 | 782.0 | 681.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 15.50 | 272.97 | -24.05 | 60.72 | 0.4522 | 1047.0 | 877.2 | |
| 6.81 | 19.52 | 3.77 | 10.81 | 14.43 | 272.86 | -24.17 | 62.98 | 0.4469 | 1024.8 | 676.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 15.21 | 272.77 | -24.26 | 61.48 | 0.4531 | 819.0 | 659.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
